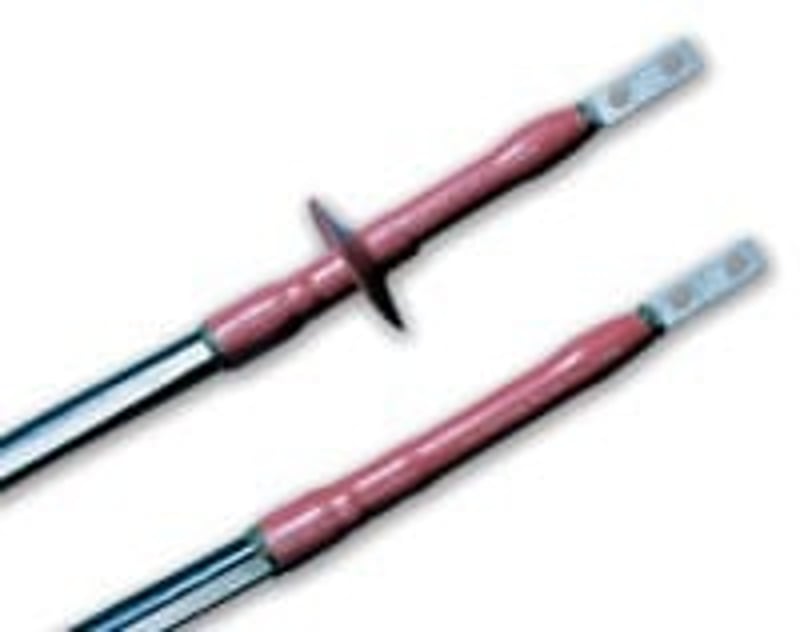

Raychem HVT-Z-152-G 15KV Medium Voltage Termination 20.32 – 31.75 mm [0.8 – 1.25] OD

Product Description

The Raychem HVT-Z-152-G is a 15KV medium voltage termination used for end-sealing electrical cables. This product features a heat shrink design that provides reliable insulation for power cables. It accommodates a range of cable sizes from two awg to three hundred fifty kcmil with an insulation outer diameter of eight hundred to one thousand two hundred fifty thousandths of an inch.

• Voltage class up to fifteen kV.
• Compatible with indoor applications.
• Easy installation with heat-shrink technology.

Product Highlights

This termination is engineered for effective power cable sealing, ensuring safety and performance in electrical installations.

Product Information

Standard Information

• Brand: Raychem
• MPN: HVT-Z-152-G

Technical Specifications

• Insulation Type: Plastic
• Application: Indoor
• Compatible Cable Sizes: 2/0 to 350 kcmil
• Insulation Diameter: 20.32 – 31.75 mm [0.8 – 1.25 in]
• Sheath Outside Diameter: 38.1 mm [1.5 in]
• Length Installed: 292.1 mm [11.5 in]
• Conductor Diameter: 10.61 – 17.29 mm [0.418 – 0.681 in]
• Power Cable Termination Voltage Class: ≤ 15 kV
