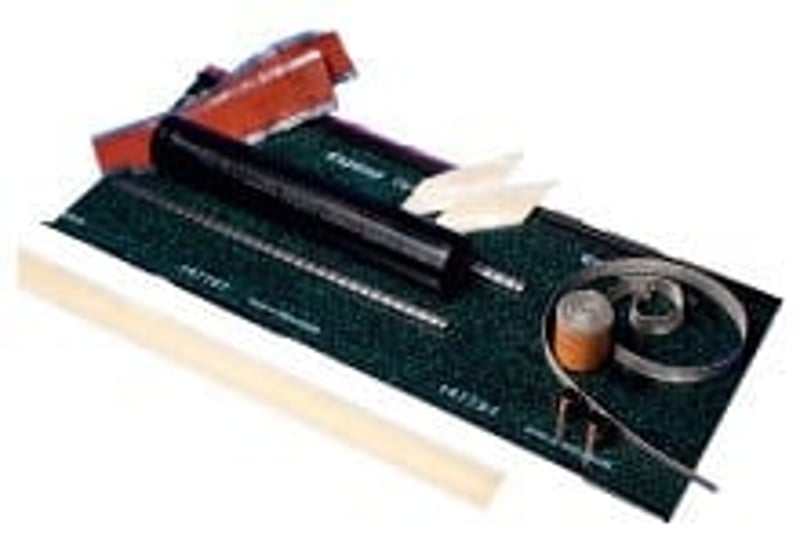

Raychem HVS-C-1521S Medium Voltage Inline Joint Connector - 16.51 – 24.13 mm [0.65 – 0.95] OD

Product Description

The Raychem HVS-C-1521S is a medium voltage inline joint connector designed for cable splicing applications. It supports a voltage class of up to fifteen kilovolts and is suitable for cables with an insulation diameter between sixteen point five one mm and twenty-four point one three mm. This product is ideal for installers seeking reliable and efficient joint connections.

• Voltage Rating: Up to 15 kV
• Compatible Cable Sizes: 2 AWG to 2/0 AWG
• Insulation Diameter Range: 0.65 inches to 0.95 inches

Product Highlights

This connector is built for heat shrink technology, ensuring durability and protection in joint and splice applications.

Product Information

Standard Information

• Brand: Raychem
• MPN: HVS-C-1521S

Technical Specifications

• Insulation Material: Plastic
• Conductor Diameter: 7.36 mm to 10.66 mm
• Sheath Outside Diameter: 30.48 mm
• Application Type: Inline Joints & Splice
• Cable Shield Style: Tape
• Number of Cores: 1
