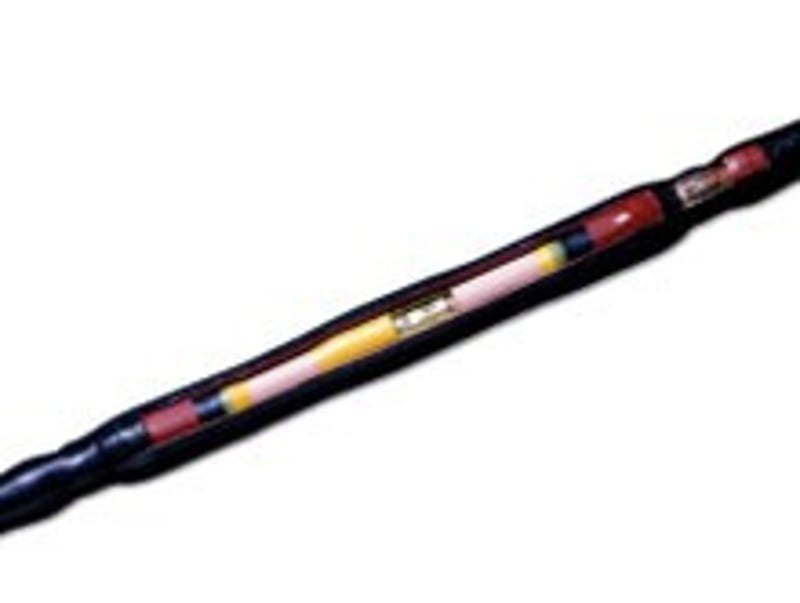

Raychem HVS-824S Medium Voltage Inline Joint 25.4 – 40.64 mm [1 – 1.6] OD

Product Description

The Raychem HVS-824S is a medium voltage inline joint designed for effective splicing in cable applications. This product is suitable for use with cable diameters ranging from twenty-five point four to forty point six four millimeters.

• Insulation Diameter: Up to one point six inches
• Voltage Class: Up to eight kilovolts
• Compatible with one core cables

Product Highlights

This inline joint is specifically designed for heat shrink applications, providing reliable electrical connections and robust insulation.

Product Information

Standard Information

• Brand: Raychem
• MPN: HVS-824S

Technical Specifications

• Insulation: Plastic
• Compatibility: Cross-Section Range (AWG/kcmil): 500 – 750
• Insulation Diameter: 25.4 - 40.64 mm [1 - 1.6 in]
• Conductor Diameter: 20.57 - 25.4 mm [0.81 - 1 in]
• Sheath Outside Diameter: 58.42 mm [2.3 in]
• Insulation Diameter Range: 1 - 1.6 inches
• Voltage Rating: ≤ 8 kV
• Number of Cores: 1
