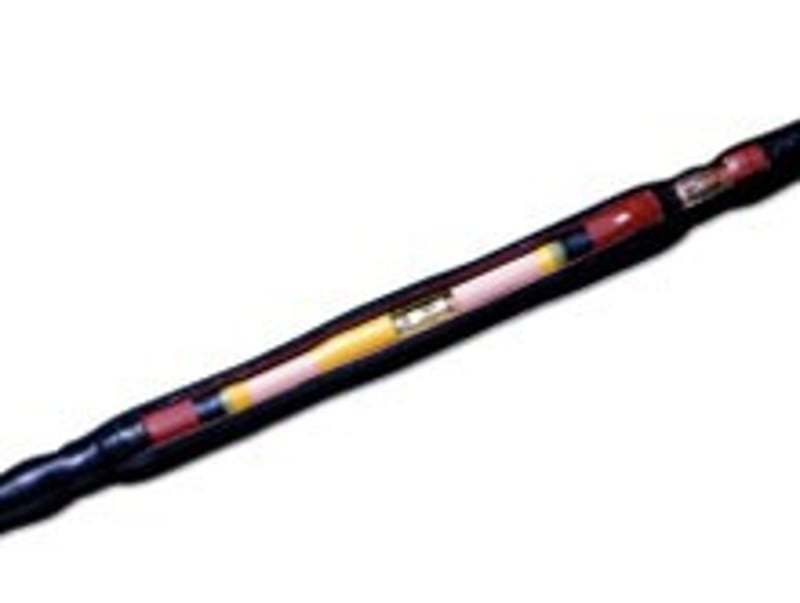

Raychem HVS-3523S Medium Voltage Inline Splice 39.4 – 54.16 mm [1.55 – 2.15] OD

Product Description

The Raychem HVS-3523S is a medium voltage inline splice designed for safe and reliable electrical connections. It is suitable for various applications where cable splicing is necessary. This splice can accommodate insulation diameters from thirty-nine point four to fifty-four point sixteen millimeters. Its heat shrink technology provides a secure and durable splice.

• Voltage class up to thirty-five kilovolts.
• Compatible with conductors from twenty-two point six to twenty-nine point twenty-one millimeters.
• Easy installation and integration with existing systems.

Product Highlights

The Raychem HVS-3523S inline splice combines robust performance with ease of use, making it ideal for trade professionals.

Product Information

Standard Information

• Brand: Raychem
• Part Number: HVS-3523S

Technical Specifications

• Insulation Type: Plastic
• Compatibility: Cross-Section Range (AWG/kcmil): 600 – 1000
• Joints & Splice Insulation Diameter: 39.4 – 54.16 mm [1.55 – 2.15 in]
• Joints & Splice Conductor Diameter: 22.6 – 29.21 mm [0.89 – 1.15 in]
• Sheath Outside Diameter: 71.12 mm [2.8 in]
• Insulation Diameter (Plastic): 1.55 – 2.15 in
