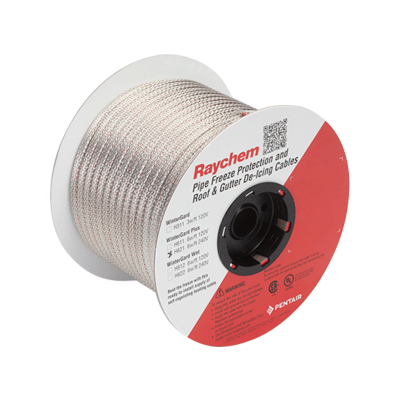

Raychem H621250 self regulating heat cable 240V 6W/ft 250 ft

Product Description

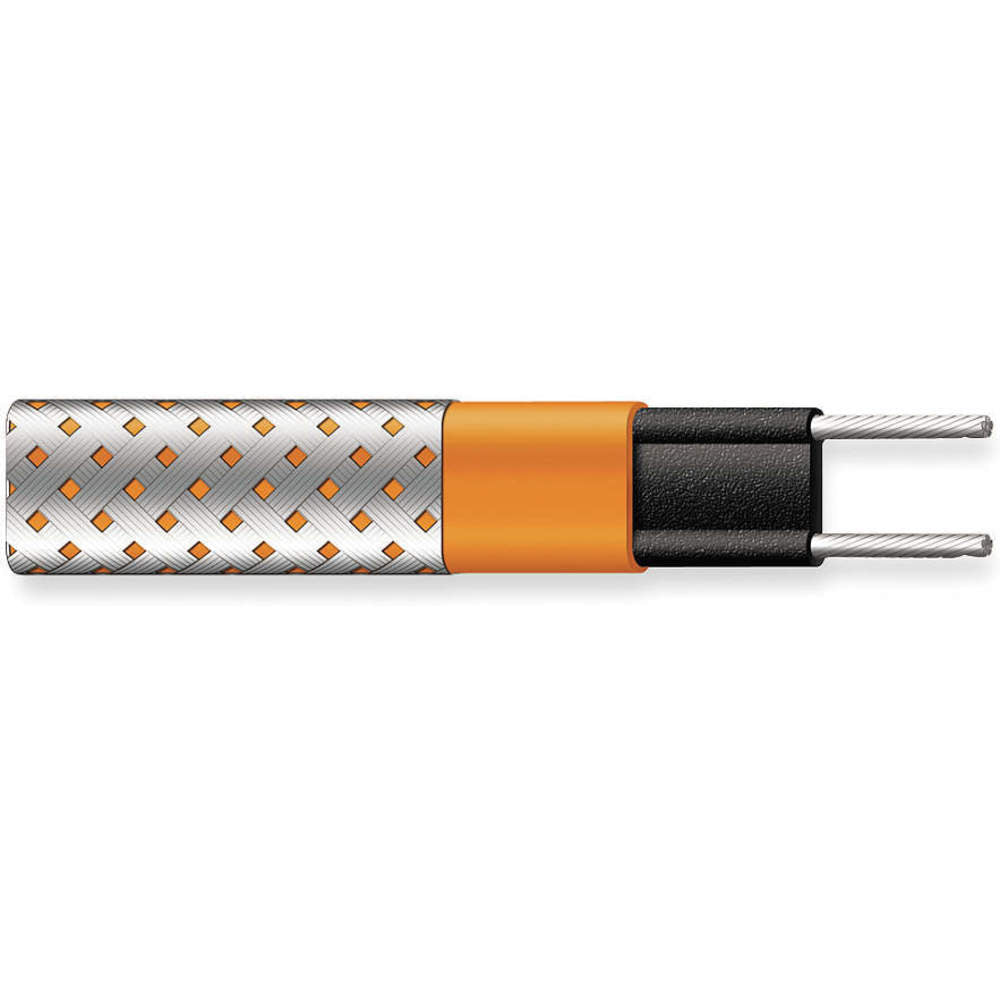

The RAYCHEM H621250 is a self-regulating heat cable designed for indoor use, operating at 240V AC with a 6W output per foot at 40°F. It features a tinned coated copper cable cover and conductive carbon cable material, suitable for residential and commercial metal and plastic pipe freeze protection. This cable provides reliable freeze protection for water pipe and roof and gutter de-icing applications in nonhazardous, dry areas.

• Self-regulating heating cable for consistent performance.
• Operates at 240V AC, delivering 6 Watts per foot at 40°F.
• Suitable for indoor use and freeze protection of metal and plastic pipes.

Product Highlights

Reliable self-regulating heating cable for freeze protection in residential and commercial applications.

Product Information

Standard Information

• Brand: RAYCHEM
• Manufacturer Part Number: H621250
• Country of Origin: US

Technical Specifications

• Type: Self Regulating Heating Cable
• Amperage Per Foot: 0.03A (at 40F)
• Cable Cover Material: Tinned Coated Copper
• Length: 250 ft
• Cable Material: Conductive Carbon
• Cable Type: Self Regulating
• Usage Environment: Indoor Only
• Compatible Accessories: H900, H903, H910, H912
• Frequency: 50 Hz
• Max Operating Temperature: 150°F
• Min Operating Temperature: -40°F
• Mounting Location: Dry
• Plug Configuration: Hardwired
• Number of Conductors: 2
• Overall Width: 3/8"
• Phase: 1
• Input Voltage: 240V AC
• Watts Per Foot: 6 W (at 40F)
• Total Wattage: 1500 Watt
• Termination Type: Terminate In The Field
• Bus Wire Gauge: 16 AWG
• Application Type: Pipe Heat Trace
• Application (Pipe): Metal Pipes
• Application (Area): Non-Hazardous, Dry Environments
• Control Type: Self Regulating
• Shield Material: Braided Metal Shield
• Series: WinterGard Plus
