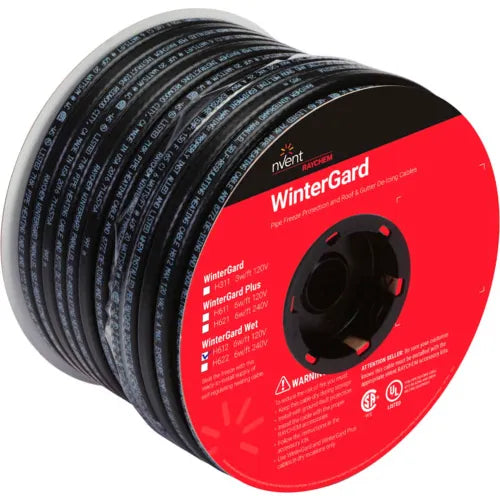

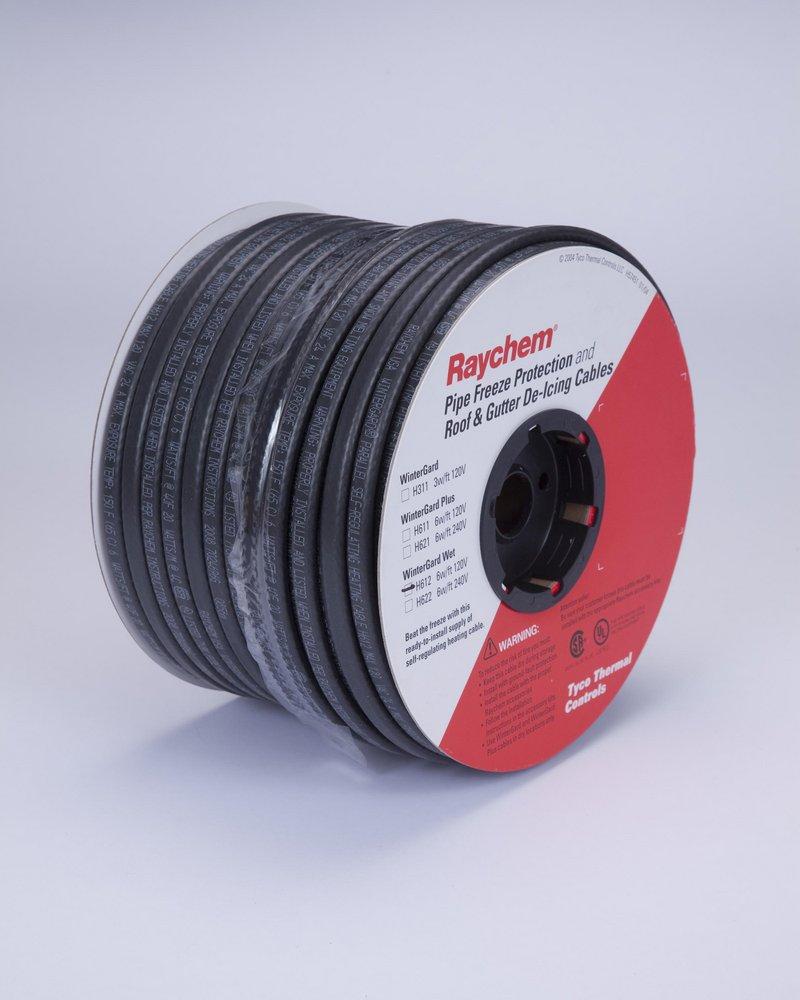

Raychem H612250 Wintergard Wet Heat Cable 6W/ft 250 ft Reel

Product Description

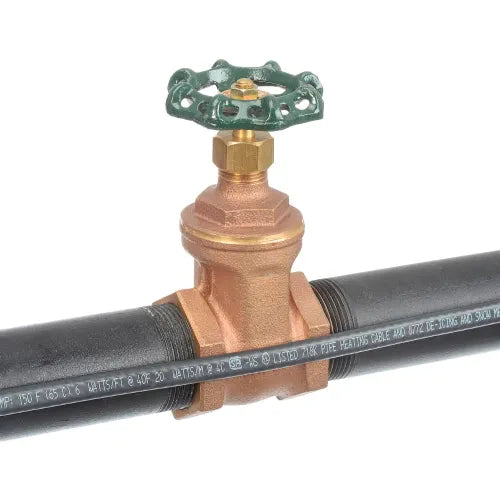

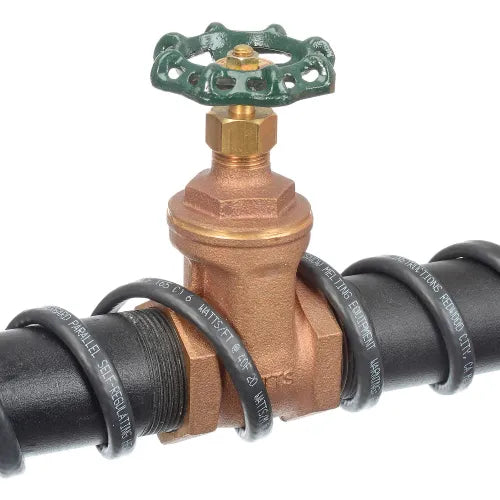

The RAYCHEM H612250 WinterGard Wet Heating Cable is a 250-foot reel of 6-Watt per foot, 120V cable designed for pipe freeze protection on metal or plastic pipes up to 6 inches in diameter. It is suitable for both wet and dry locations, as well as roof and gutter de-icing applications. This self-regulating cable requires a Power Connection Kit and ground-fault protection as per National Electrical Code for safe installation.

• Easy to install, cut to length with meter marks
• Energy efficient and safe self-regulating cable with advanced energy saving controls, preventing overheating
• Simple to design for various applications

Product Highlights

Self-regulating heating cable for pipe freeze protection and roof/gutter de-icing, offering energy efficiency and easy, cut-to-length installation.

Product Information

Standard Information

• Brand: RAYCHEM
• Manufacturer Part Number: H612250

Technical Specifications

• Pipe Size: 6 in
• Watts per Foot: 6 W/ft
• Type: Self-Regulating Heating Cable
• Voltage: 120 V
• Total Wattage: 1500 W
• Amperage: 12.5 A
• Plug Type: Hardwired
• For Use With: Pipes, Roofs, Gutters and Leaders
• Assembly Required: Yes
• Certifications: UL Listed 718K; UL Listed 877Z; CSA Certified LR21133
• Length: 250 ft
• Application: Commercial; Residential; Nonhazardous Areas
• Conductor Material: Nickel Plated Copper
• Conductor Size: 16 AWG Bus, 14 AWG Braid
• Temperature Rating: 150 °F Maximum Exposure
• Jacket Material: Polyolefin
• UPC: 715629000187
• Heat Trace Termination Type: Terminate In The Field Heat Trace
• Heat Trace Type: Roof and Gutter Heat Trace
• Secondary Heat Trace Type: Pipe Heat Trace
• Finish: Nickel Plated
• Number of Conductors: 2
• Mounting Location: Wet or Dry
• Outside Diameter: 0.415 in
• Color: Black
• Series: Wintergard Wet
