Raychem H311100 WinterGard Heating Cable 120V 100 feet and 3W

Product Description

The Raychem H311100 WinterGard self-regulating heating cable provides freeze protection for professionally installed residential and commercial water pipes and roof-and-gutter de-icing applications. It features a braided metal shield and is suitable for use with metal or plastic pipes up to 2 inches in diameter in dry locations. The nominal power output is 3W/ft.

• Self-regulating and energy efficient
• Suitable for metal or plastic pipes up to 2 inches in diameter

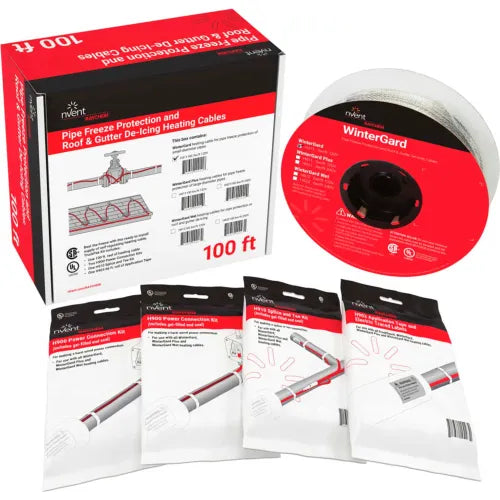

• Includes cable, power connection kits, splice/tee kit, and application tape

Product Highlights

Provides reliable freeze protection for pipes and roofs. Includes all necessary components for installation. Designed for use in dry locations.

Product Information

Standard Information

• Brand: RAYCHEM
• Manufacturer Part Number: H311100
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: H311100
• Brand Name: WinterGard
• Item: Heating Cable
• Voltage Rating: 120 Volt
• Power Rating: 3 Watt (Pipe)
• Length: 100 Foot
• Type: Self-Regulating, Braided Metal Shield
• Temperature Rating: 150 Deg F
• Approval: UL 718K, CSA
• Fits pipe size: 2 in
• Nominal power output: 3W/ft
• Voltage: 120.0 V
• Wattage: 300 W
• Amperage: 2.5 A
• Material: Polyolefin
• Plug Type: Hardwired
• Width: 3/8 in
• Height: 3/16 in
• For Use With: Metal or Plastic Water Pipes (Dry Only)
• Watts per Foot: 3.0 W
• Thickness: 3/16 in
• Cord Length: 100.0 ft
• Assembly Required: Yes
• Bus Wire Gauge: 16 AWG
• Certifications: UL, CSA
• Cable Construction: Self Regulating
• Watt/Foot: 3 Watt/Ft
• Heat Trace Termination Type: Terminate In The Field Heat Trace
• Heat Trace Type: Pipe Heat Trace
