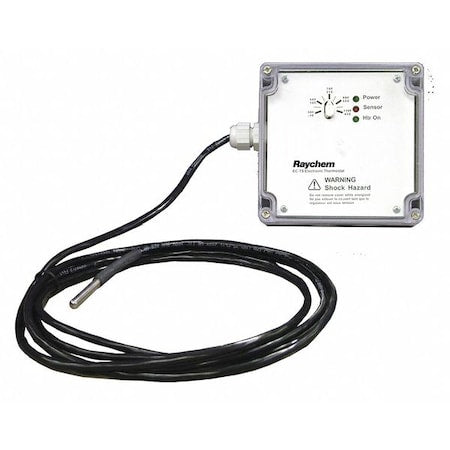

Raychem EC-TS Line Volt Electronic Tstat Open on Rise Wall SPST 100 to 277VAC

Product Description

The Raychem EC-TS Line Volt Electronic Thermostat is designed for HVAC systems. This thermostat, with MPN EC-TS, provides reliable control for heating systems with a voltage range of 100 to 277VAC. It has a single-pole, single-throw switch action and is suitable for wall mounting.

• Thermostat Voltage: 100 to 277V AC
• Thermostat Control Range: 30 Degrees to 110 Degrees F
• Remote Sensing Capability: Yes

Product Highlights

This thermostat is ideal for any hardwired heating cable system. It features an LED display and includes a 25-foot temperature sensor. The thermostat operates within a temperature range of 30 to 110 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Raychem
• MPN: EC-TS

Technical Specifications

• Thermostat Switch Type: SPST
• Control Range: 30 Degrees to 110 Degrees F
• Voltage: 100 to 277VAC
• Amperage: 30 A
• Height: 4 13/16 in
• Width: 4 47/64 in
• Depth: 2 in
• Temp. Sensitivity: +/-3 Degrees F
• Remote Sensing Capability: Yes
• Switch Action: Open on Rise
• Differential: 4 Degrees F
• Mounting Type: Wall
