Description

Product Description

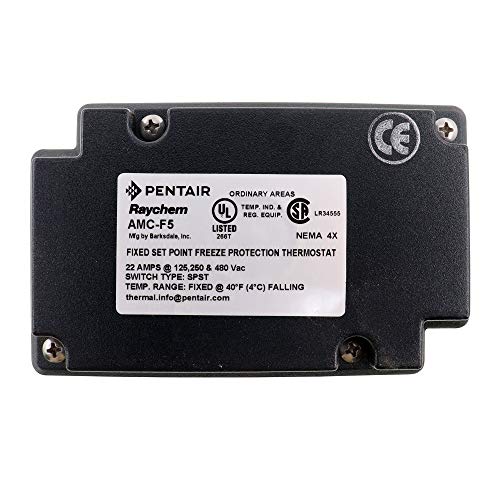

The Raychem AMC-F5 is a line voltage mechanical thermostat designed for heating applications. This thermostat operates on voltages ranging from one hundred twenty to four hundred eighty volts and can handle full load currents up to twenty-two amps. It is suitable for both indoor and outdoor installations, making it versatile for different environments.

  • Voltage Rating: 125, 250 to 480VAC
  • Switch Type: SPST, Open on Rise
  • Remote Sensing Capability: Yes

Product Highlights

This thermostat features a fixed control range of forty degrees Fahrenheit and includes a remote sensing bulb for enhanced temperature measurement. It is ideal for systems requiring a simple on/off control for heat tracing applications.

Product Information

Standard Information

  • Brand: Raychem
  • MPN: AMC-F5
Technical Specifications
Thermostat Item
Line Voltage Mechanical Thermostat
Switch Action
Open on Rise
Full Load Amps @ 120VAC
22A
Full Load Amps @ 240VAC
22A
Contact Rating
125 to 480V AC
Temperature Control Range
40 Degrees F
Overall Dimensions
Height 5-1/4 inches, Width 3-1/4 inches, Depth 2-1/2 inches
Mounting Type
Surface
Enclosure Type
Plastic NEMA 4X
Operating Temperature Range
-30 to 140 Degrees F
