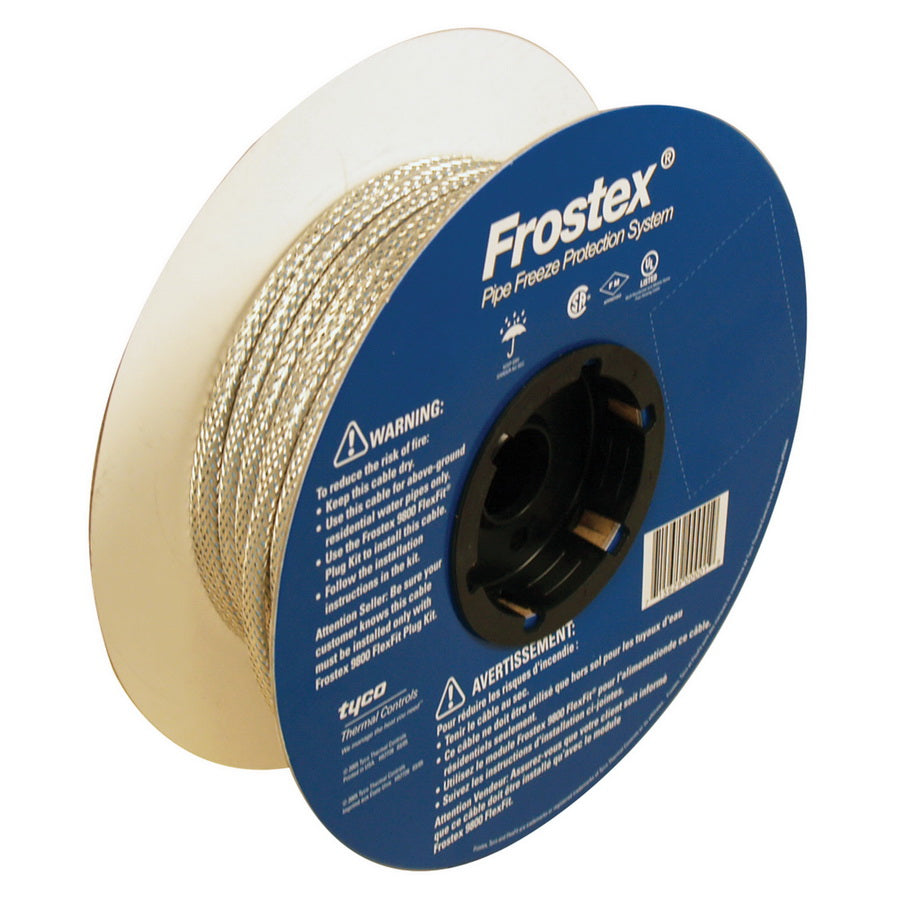

RAYCHEM 777445-000 Frostex Self-Regulating Heating Cable 120V 100 Feet

Product Description

The RAYCHEM 777445-000 Frostex self-regulating heating cable is made for protecting residential pipes from freezing. This cable features a self-regulating core that changes its heat output with temperature variations. It is suitable for dry or weatherproofed locations and needs a Frostex 9800 FlexFit plug kit to terminate. The cable comes in a one hundred-foot spool.

• Self-regulating trace heating cable
• Protects pipes from freezing
• Nominal power output of three watts per foot at fifty degrees Fahrenheit, 120 volts

Product Highlights

This cable is ideal for keeping pipes safe and operational in cold weather.

Product Information

Standard Information

• Brand Name: nVent RAYCHEM
• Manufacturer: Raychem

Technical Specifications

• Manufacturer Part Number: 777445-000
• Nominal Voltage: 120 V
• Nominal Power Output @ 50°F, 120V: 3 W/ft
• Spool Length: 100 feet
• Maximum Circuit Length: 50 feet
• Nominal Cable Width: 0.25 inches
• Wire Gauge: 22 AWG
• Application: Pipe Freeze Protection
