Raychem 254741-000 RAY-NUH RTD-200 RTD FOR AMBIENT TEMP SENSING -100F TO 300F

Product Description

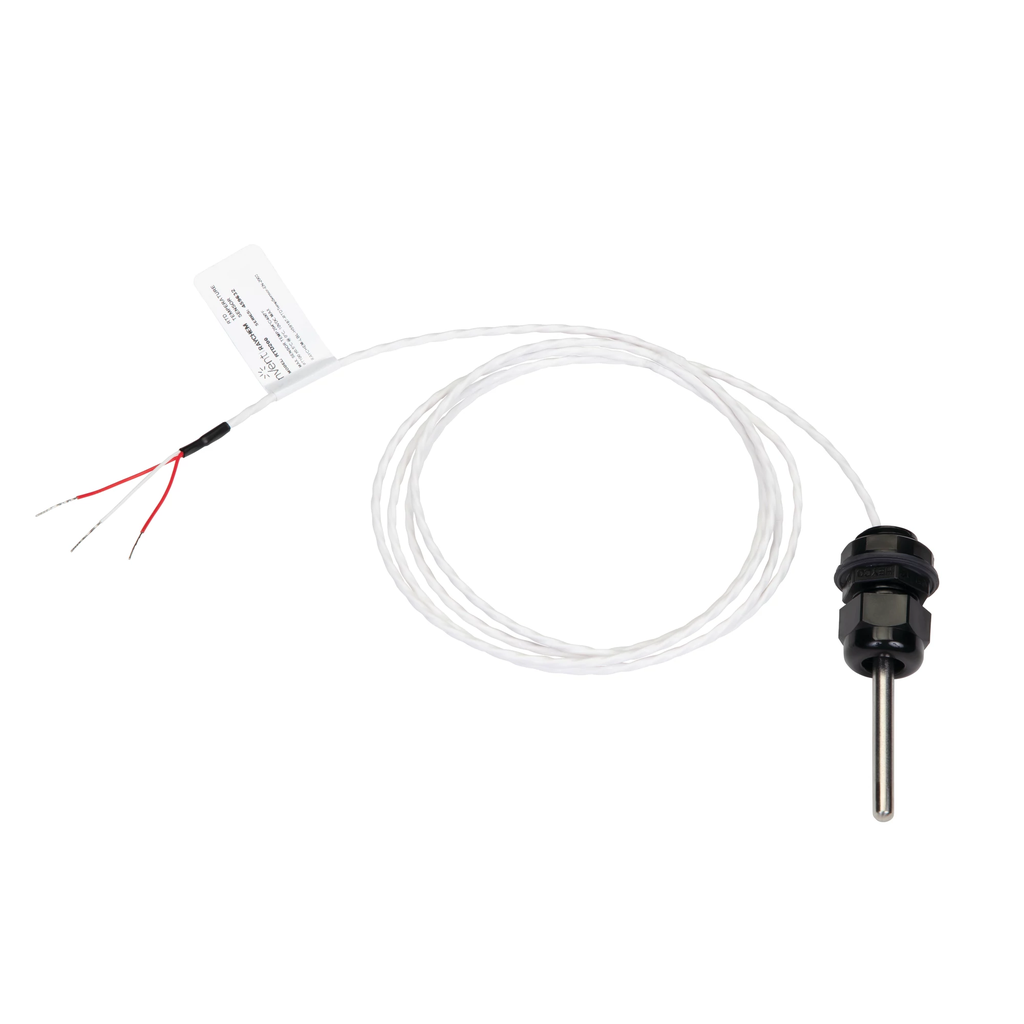

The Raychem 254741-000 RAY-NUH RTD-200 is a three-wire ambient sensing platinum resistance temperature detector (RTD). This product is designed for electronic control systems that require precise ambient temperature measurements. It features a one-half inch NPT fitting for easy installation in a conduit box, allowing for secure placement in various environmental conditions. This RTD is suitable for use in hazardous locations when connected to the correct enclosure.

• Temperature range: -100°F to 300°F
• Accuracy: +/- 0.3°F
• Material: 316 stainless steel housing

Product Highlights

The RAY-NUH RTD-200 is built for reliability and accuracy in temperature sensing applications.

Product Information

Standard Information

• Brand: Raychem
• MPN: 254741-000

Technical Specifications

• Temperature Rating: 300 degrees F
• Resistance: 100 Ohm
• Amperage: 600 V wire dielectric strength
• Material: 316 stainless steel housing, fluoropolymer outer jacket
• Applications: For electronic control systems
• Product UPC: 71562900740
• 12-Digit UPC: 715629007407
