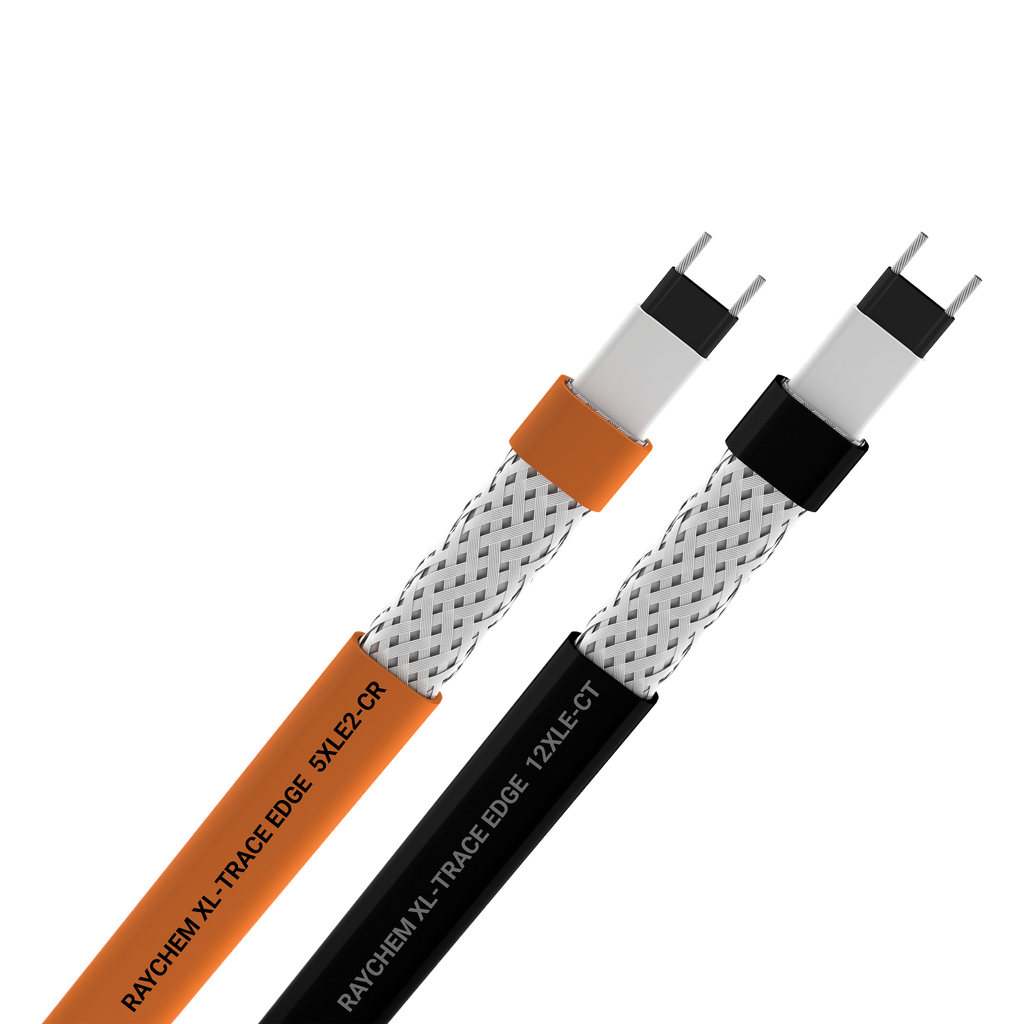

Raychem 2000002607 RAY-NUH 5XLE1-CR-M 5W/FT 120V SELF-REG HEATING CABLE

Product Description

Raychem 2000002607 RAY-NUH 5XLE1-CR-M is a self-regulating heating cable designed to prevent pipe freeze and maintain proper flow in grease waste lines and above-ground fuel lines. This heating cable is energy efficient and easy to install. It can be cut to the desired length using its meter marks. The cable features a RayClic cold connection system for simple assembly.

• Self-regulating heating cable for safe use
• Suitable for plastic pipes without overheating
• 10-year extended warranty available for reliability

Product Highlights

This heating cable is reliable and maintenance-free, making it ideal for various applications requiring freeze protection.

Product Information

Standard Information

• Type: Self Regulating
• Brand: Raychem

Technical Specifications

• Voltage: 120 Volt
• Wattage: 5 Watt/ft
• Conductor Size: 16 AWG
• Conductor Material: Nickel-Plated Copper
• Temperature Rating: 154 degrees F
• Insulation Material: Modified Polyolefin
• Jacket Material: Modified Polyolefin
• Applications: For Pipe Freeze Protection and Flow Maintenance of Grease Waste Lines (Above and Below Ground) and Fuel Lines (Above Ground)
