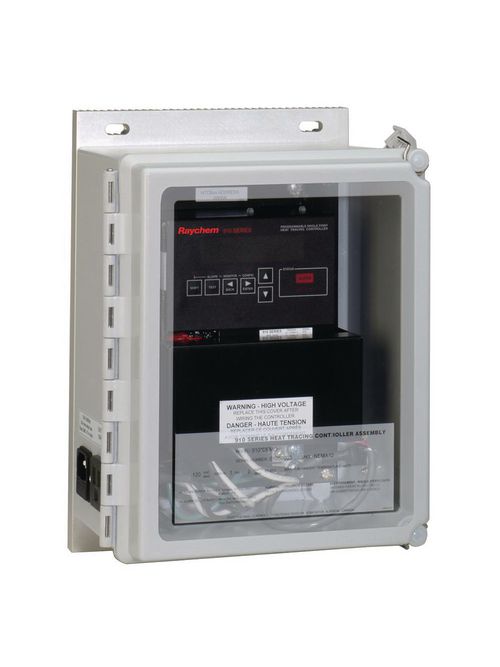

Raychem 10170-026 RAY-NUH C910-485 Digitrace Controller In FRP Enclosure W/ 2 Pole 30A EMR W/ 2-Wire Isolated RS485

Product Description

The Raychem 10170-026 is a DigiTrace single-point heat-tracing control system designed for commercial heating applications. This microprocessor-based controller operates at a supply voltage range of 100 to 277 VAC and supports up to 30 amp ratings. It features a digital LED display that shows actual temperature, control temperature, heater current, ground faults, and alarm parameters.

• Compact design for easy installation
• Microprocessor-based control
• Digital display for real-time monitoring

Product Highlights

This controller is ideal for managing electric heating cable circuits efficiently.

Product Information

Standard Information

• Brand: Raychem
• Product Type: Single Point, Compact, Microprocessor Based

Technical Specifications

• Supply Voltage: 100-277 VAC
• Amperage: 30 Amp
• Depth: 6.25 inches
• Width: 8.5 inches
• Height: 10.5 inches
• Wire Size: 22-8/28-12 AWG
• Sensor Type: 100 Ohm Platinum RTD
• Display Type: LED
• Housing Material: Fiberglass Reinforced Polyester
• Environmental Conditions: 0 - 90% Relative Humidity
• TC Connection: Screw and Spring Clamp Terminal
