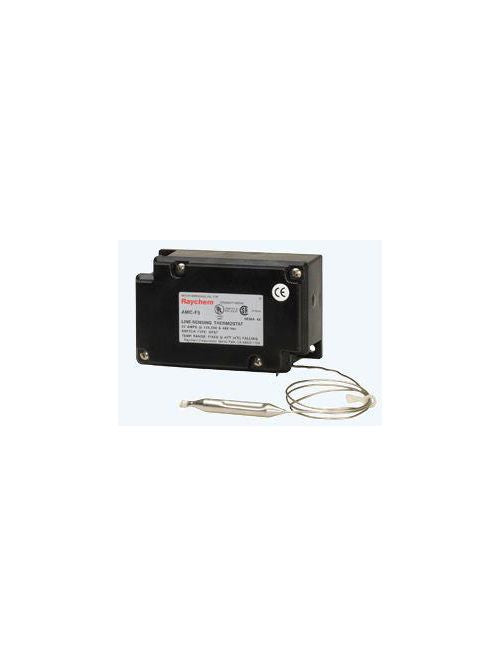

Raychem 031661-000 AMC-F5 3/4 Inch 125/250/480 VAC 22 Amp SPST NEMA 4X Set Point Thermostat

Product Description

The Raychem 031661-000 is a DigiTrace freeze protection thermostat designed to control heat-tracing systems for freeze protection in non-hazardous locations. It has a fixed set point of 4.4 degrees Celsius. This thermostat can operate in ambient-sensing mode or line-sensing mode, allowing flexibility for installation on pipes or tank walls. It controls a single heat tracing circuit or can serve as a pilot control for multiple circuits.

• Compatible With 125/250/480 VAC
• Fixed Set Point of 4.4 ºC
• 22 Amp Amperage Rating

Product Highlights

This thermostat is essential for managing freeze protection in ordinary areas, ensuring systems remain operational in low temperatures.

Product Information

Standard Information

• Brand: Raychem
• Type: Non-Programmable, Fixed Set-Point Freeze-Protection, 1-Pole

Technical Specifications

• Color: Black
• Voltage: 125/250/480 VAC
• Accuracy: +/- 3 F
• Amperage: 22 Amp
• Sensor Type: Fixed Fluid-Filled (Silicone) Bulb and Capillary
• Switch Type: SPST
• Enclosure Type: Type 4X, UV-Resistant
• Applications: For Controlling Freeze Protection Heat-Tracing Circuits in Ordinary Areas
