Rational 3100.1081 Fan Motor with Motor Shaft Gasket 240V 60Hz (Each) 3100.1084

Brand: RATIONAL
SKU: 3100.1081
Availability: Out Of Stock
$3,082.00
$3,082.00
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

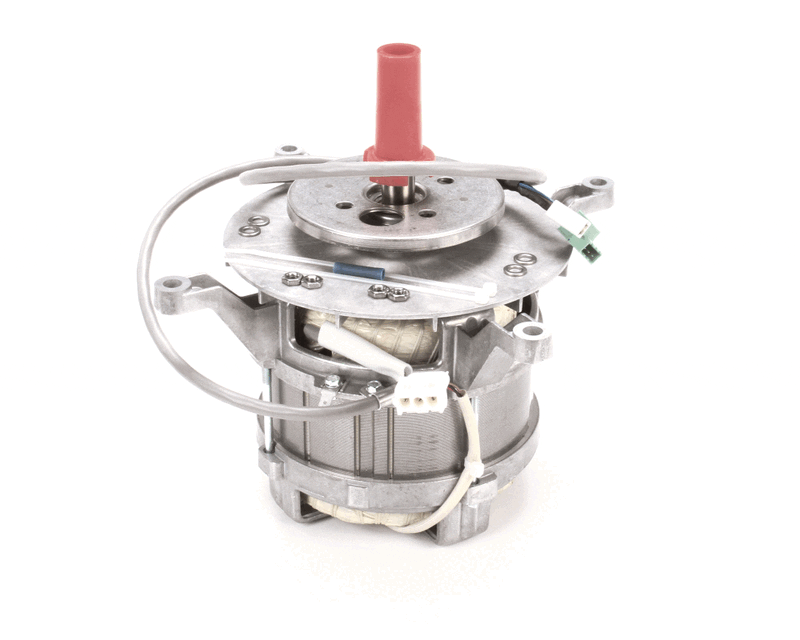

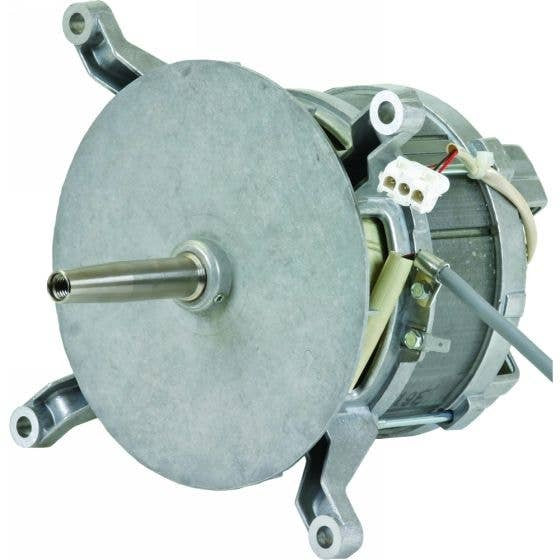

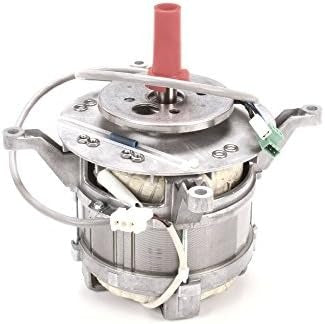

Rational 3100.1081 is an OEM fan motor assembly (L9 4-pole) rated 240 V, 60 Hz and supplied with a motor shaft gasket. The motor is used in commercial Rational combination ovens and CPC-line equipment and is dimensioned for direct replacement in compatible models. Electrical and mechanical specifications include 3-phase operation, 0.68 kW rated power, and a 1730 rpm speed at 60 Hz.

  • L9 4-pole fan motor assembly with motor shaft gasket for commercial cooking equipment
  • Electrical rating: 240 V, 60 Hz, 3-phase; rated power 0.68 kW, speed 1730 rpm
  • Physical size and weight: approx. 15.8 in x 15 in x 12.1 in; weight 22.28 lbs

Product Highlights

OEM L9 4-pole fan motor with shaft gasket, 240 V 60 Hz, compatible with Rational CPC/CD/CM series; obsolete status noted

Product Information

Standard Information

  • Brand: RATIONAL
  • Manufacturer Part Number: 3100.1081
  • Country of Origin: United States
Technical Specifications
Brand
Rational
Manufacturer Part Number
3100.1081
Alternate Part Numbers
3100.1084, 31001081, 31001084, 601308
Description
Fan motor L9 4-pole with motor shaft gasket
Poles/Type
L9, 4-pole
Phases
3-phase
Input Voltage
240 V
Frequency
60 Hz
Rated Power
0.68 kW
Rated Speed
1730 rpm (at 60 Hz)
Current
2.9 A (see note: value inconsistent with 3-phase 0.68 kW rating)
Included Accessories
Motor shaft gasket / shaft seal
Dimensions (L x W x H)
15.8 in x 15 in x 12.1 in (40.13 cm x 38.10 cm x 30.73 cm)
Weight
22.28 lbs / 10106 g
Shaft Lengths
155 mm; 47 mm; 35 mm (multiple shaft length options / variants)
Shaft Diameters
17 mm; 13 mm
Thread
M10R IG
Compatible Models
CPC102, CPC102E, CPC102G, CPC202, CPC202E, CPC202G, CD102, CD102E, CD202, CD202E, CM102, CM102E, CM102G, CM202, CM202E, CM202G
Fits Models (summary)
CPC Line CD/CM/CPC 102/202 and related Rational combination ovens
Country of Origin
United States
Status
Obsolete / no longer available
Units
Each
