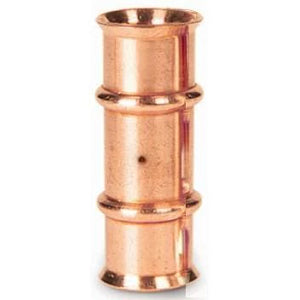

Rapid Locking System 3011121200111 3/4 Coupling W/Stop

Product Description

The RAPID LOCKING SYSTEM 3011121200111 is a 3/4 coupling with a stop. It is designed for high-pressure HVACR applications and is approved for use with various refrigerants, including R410A and R134a, as well as non-potable water and glycol. This coupling is intended for use with RLS tools and jaws only.

• Approved for R410A, R134a, R404A and R407A/C/F, R507, R290, R600A, R32, non-potable water and glycol
• Maximum operating pressure of 700 psi
• Maximum burst pressure of 3000 psi

Product Highlights

This 3/4 coupling with stop is suitable for high-pressure HVACR systems using approved refrigerants and requires RLS tools for installation.

Product Information

Standard Information

• Brand: RAPID LOCKING SYSTEM
• Manufacturer Part Number: 3011121200111
• Country of Origin: UNITED STATES

Technical Specifications

• Size 1: 3/4
• Size 2: 3/4
• Fitting Body Material: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
• O-Ring Material: HNBR
• Maximum Rated Pressure (MRP): 700 psi
• Continuous Operating Temperature: 250 °F
• End Type: Press End
• A: 0.76 in
• B: 0.88 in
• C: 1.07 in
• D: 1.29 in
• End Style: Press
• Fitting/Connector Type: ACR Coupling
• Material: Copper
• Maximum Pressure: 700 psi
• Operating Temperature: 250 deg F
• Size: 3/4 in
• Type: With Dimple Stop
