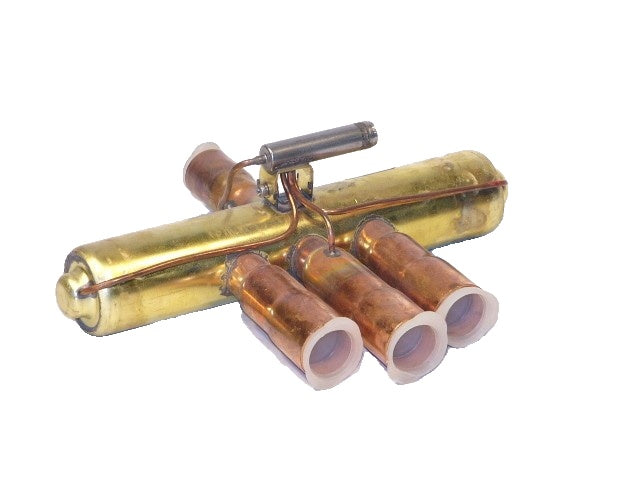

Ranco V6-414120-170 Heat Pump Reversing Valve 7x8 3x4 Inches

Product Description

The Ranco V6-414120-170 Heat Pump Reversing Valve is an essential component designed for efficient control of refrigerant flow in heat pump systems, ensuring both heating and cooling functions. Engineered for residential and commercial applications, this valve facilitates the defrosting process in air source pumps and supports a variety of heat sources, including air and water.

• Optimized for minimal pressure drop to enhance system efficiency.
• Features a 4-way pilot valve that utilizes high and low side refrigerant pressures for reliable operation.
• Constructed with high-quality brass, copper, and stainless steel to prevent external leakage.

Product Highlights

This valve is designed to endure with a hermetic structure and Tefloninchu00ae lubricated surfaces, ensuring long-lasting performance and resistance to contaminants. Its solenoid coils are color-coded by voltage, simplifying maintenance and replacements.

Product Information

Standard Information

• Brand: Ranco
• MPN: V6-414120-170

Technical Specifications

• Tube Size Suction: 7/8 inches
• Tube Size High Pressure: 3/4 inches
• Capacity R-22: 0.4 to 5.5 Tons
• Capacity R-410A: 0.5 to 6.7 Tons
• Available Wiring Harnesses: Customizable lengths and terminations
