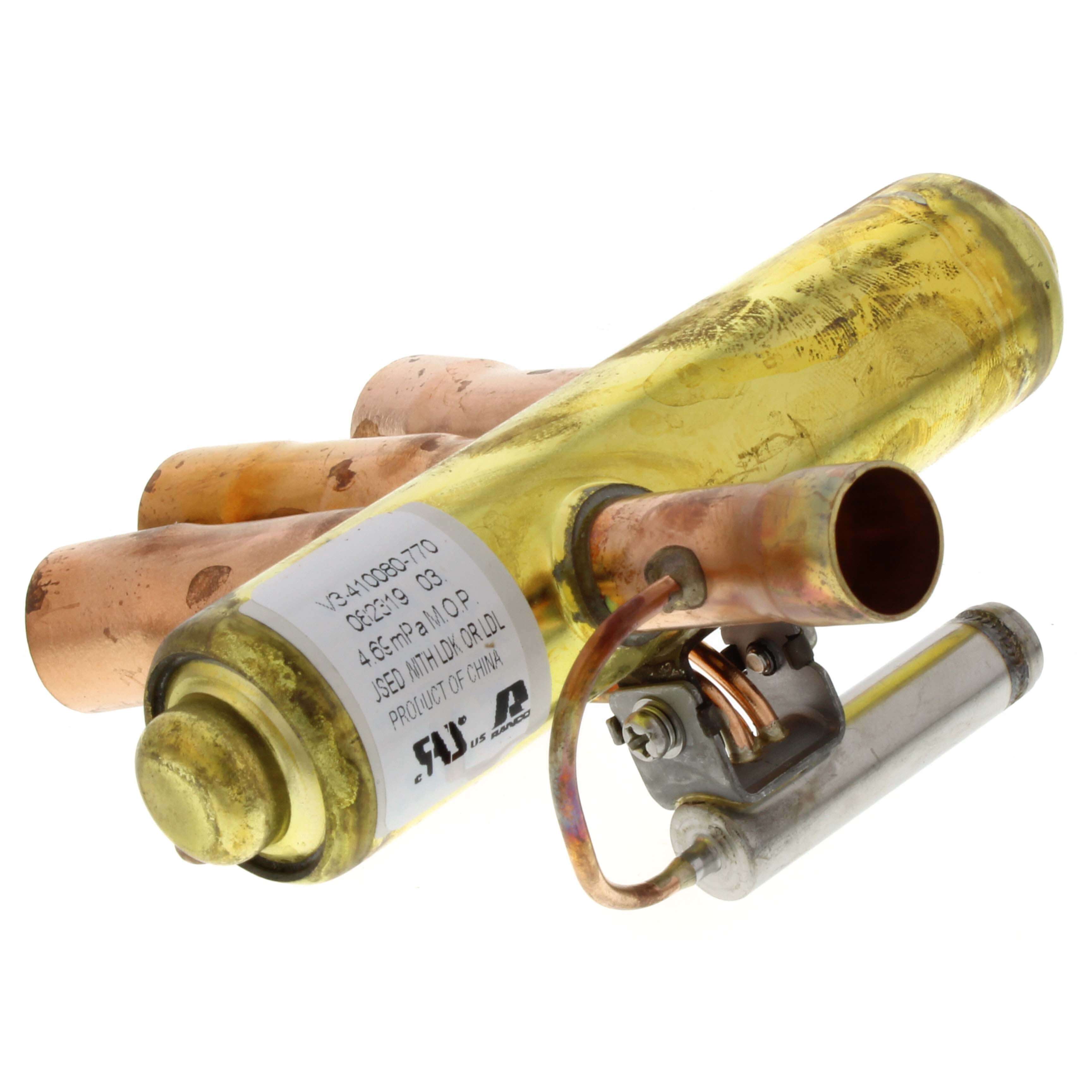

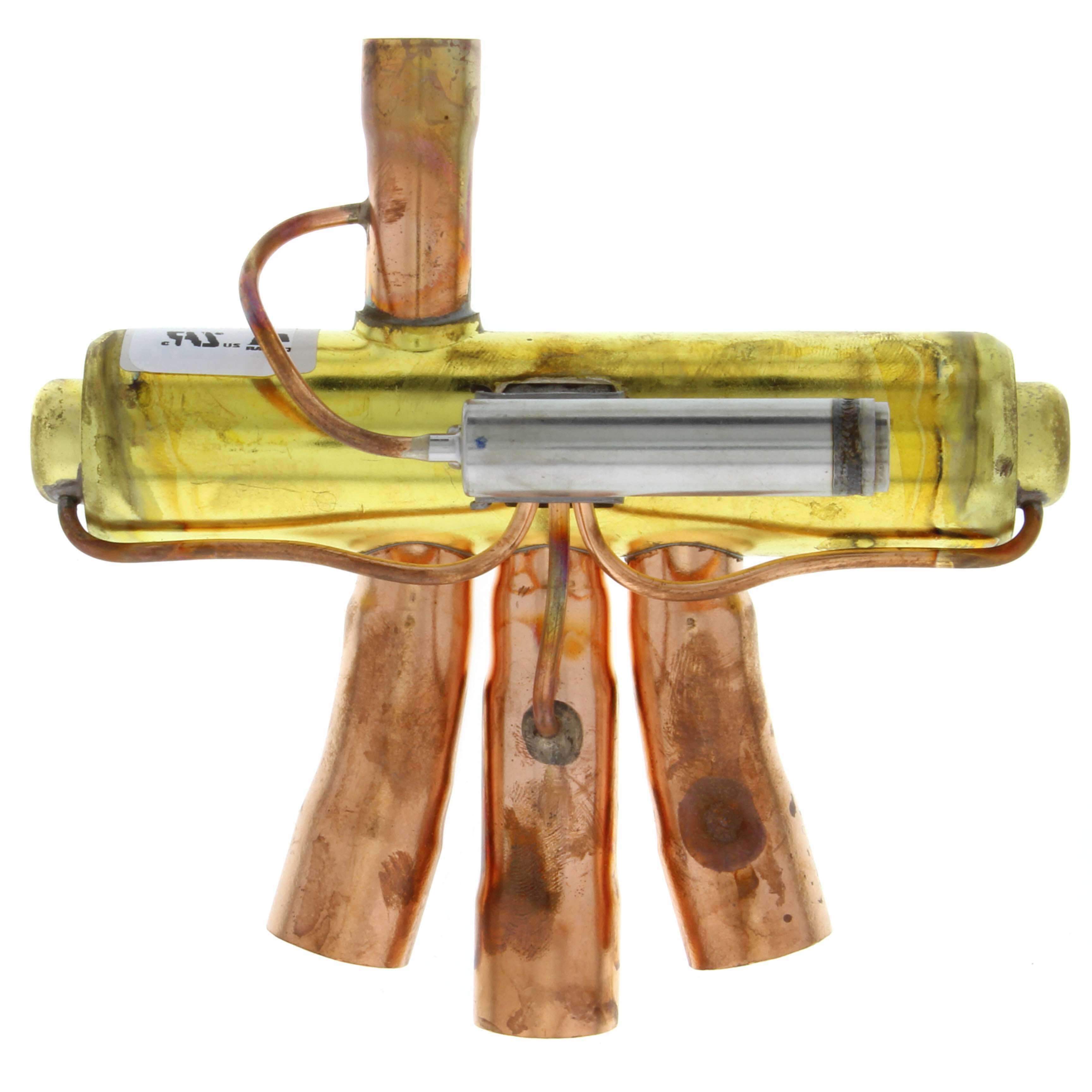

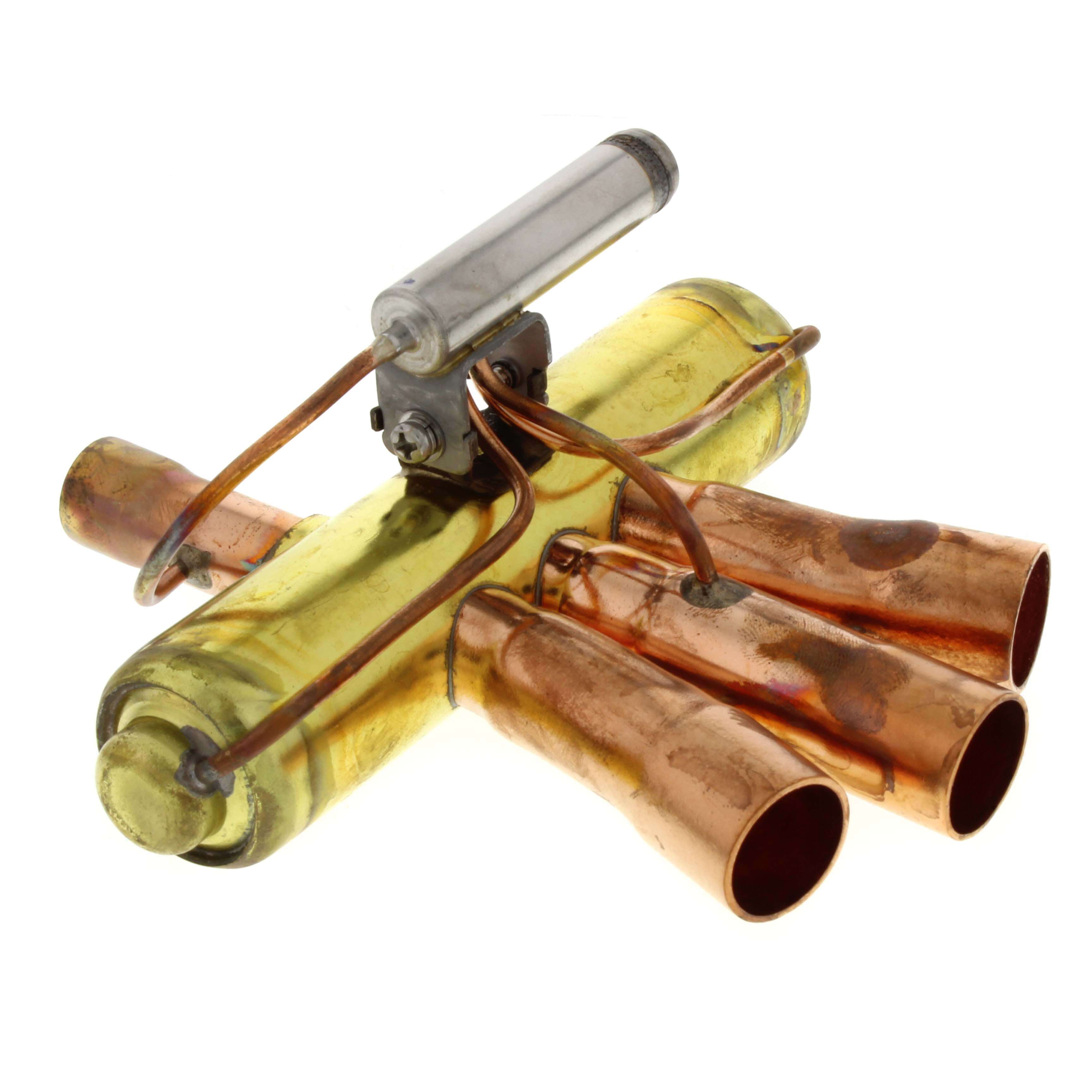

Ranco V3-410080-770 Reversing Valve 5/8 x 1/2 R22 R410A

Product Description

The Ranco V3-410080-770 Reversing Valve is a versatile component designed for heat pump systems. It efficiently reverses the direction of refrigerant flow for cooling, heating, and defrosting functions.

• Minimal pressure drop for higher system efficiencies
• Hermetic construction to eliminate external leakage
• Low solenoid power consumption

Product Highlights

This reversing valve, compatible with R22 and R410A refrigerants, boasts robust construction using brass, copper, and stainless steel. Ideal for residential and commercial applications, the valve ensures long-term reliability and efficiency.

Product Information

Standard Information

• Item: Reversing Valve, 5/8 x 1/2
• Brand: Ranco
• MPN: V3-410080-770

Technical Specifications

• Tube Size Suction: 5/8 inches
• Tube Size High Pressure: 1/2 inches
• Capacity R-22: 0.4 to 1 tons, 1.0 to 2.8 tons
• Capacity R-410A: 0.5 to 1.7 tons, 1.3 to 3.1 tons
• Weight: 0.86 pounds
• Dimensions: 7.5 inches x 5.1 inches x 3.45 inches
• Country of Origin: China
