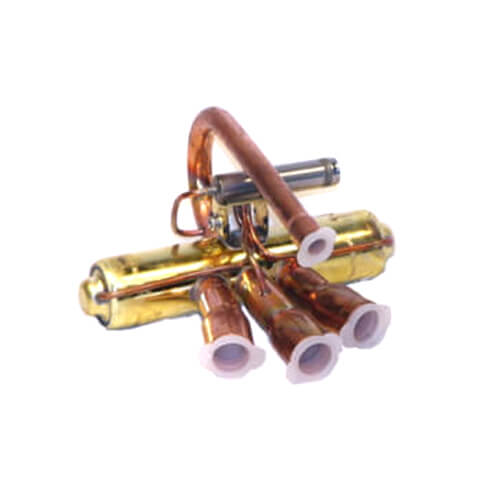

Ranco V2-410060-470 Heat Pump Reversing Valve 3/8 inch by 5/8 inch

Product Description

The Ranco V2-410060-470 Heat Pump Reversing Valve is an essential component for residential and commercial heat pump systems, facilitating the interchange of heating and cooling functionalities by reversing refrigerant flow. This valve is designed for reliability and efficiency in air and water heat source systems.

• Streamlined design for minimal pressure drop enhancing system efficiency.
• Constructed with high-quality materials including brass, copper, and stainless steel to prevent leakage and extend service life.
• Teflon lubricated components reduce friction and improve durability.

Product Highlights

Equipped with a low power consumption solenoid offering a Class B UL thermal rating, the V2-410060-470 supports various refrigerants including R-22 and R-410A. Its versatile design allows installation in unitary and split systems and supports up to 2.5 tons capacity.

Product Information

Standard Information

• Brand: Ranco
• MPN: V2-410060-470

Technical Specifications

• Solenoid: Color-coded by voltage, with 1/4 inch male quick connects
• Operating Pressures: Max pressure 680 psi
• Valve Type: 4-way slide
• Temperature Range: -40°F to 248°F
• Valve Size: 3/8 inch by 5/8 inch
