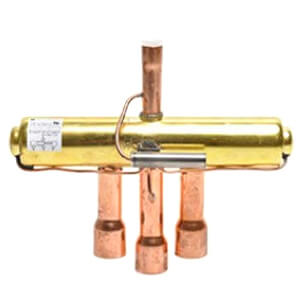

Ranco V10-414140-470 7/8 x 7/8 Heat Pump Reversing Valve

Product Description

The Ranco V10-414140-470 is a 7/8 x 7/8 heat pump reversing valve. This valve operates within heat pump systems to reverse refrigerant flow. It enables both heating and cooling from the system and assists in outdoor coil defrosting in air source units.

• Designed to minimize pressure drop for higher efficiency.
• Constructed from brass, copper, and stainless steel to enhance durability.
• Teflon lubricated surfaces reduce internal friction.

Product Highlights

This valve is suitable for residential and commercial heat pumps, accommodating various heat sources.

Product Information

Standard Information

• Brand: Ranco
• Type: Reversing Valve
• Capacity R-22: 0.4 to 1 Tons, 3.0 to 9.9 Tons
• Capacity R-410A: 0.5 to 1.7 Tons, 3.8 to 11.9 Tons

Technical Specifications

• Weight: 3.9 lbs
• Tube Size Suction: 7/8 inches
• Tube Size High Pressure: 7/8 inches
• Shipping Depth: 5.5 inches
• Shipping Width: 4.2 inches
• Shipping Height: 3.6 inches
• Solenoid Power Consumption: Low
• Wiring Harness Options: Available separately
