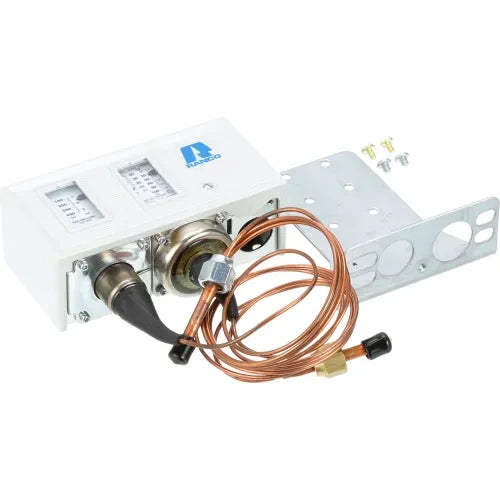

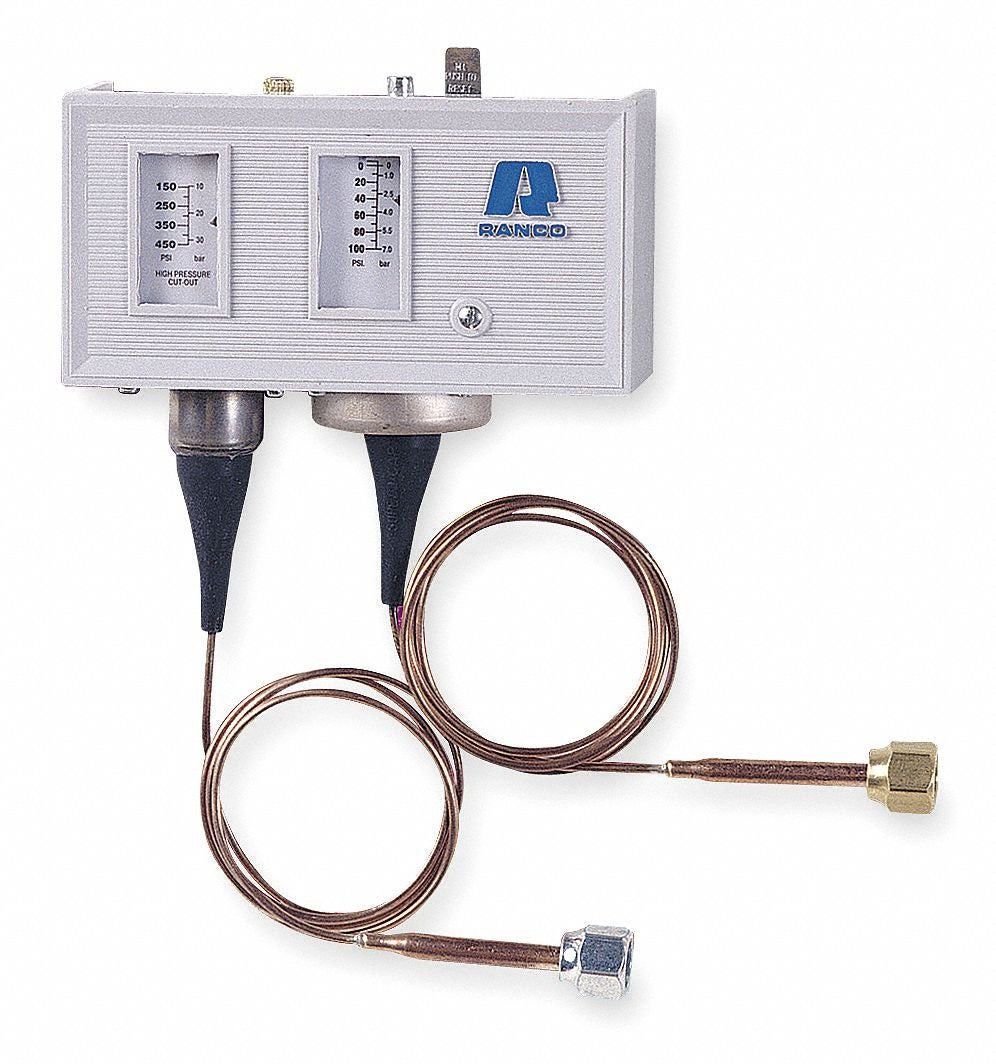

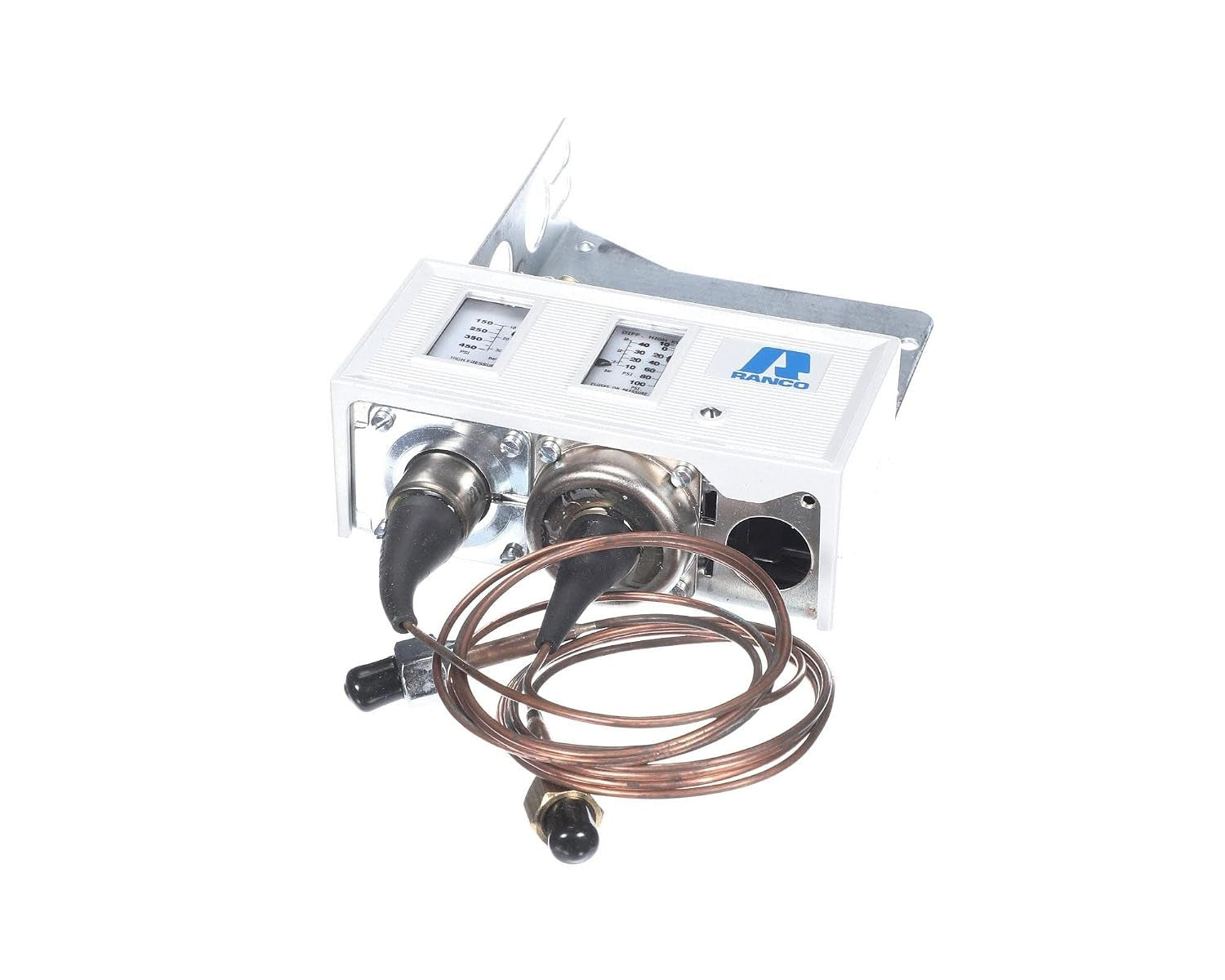

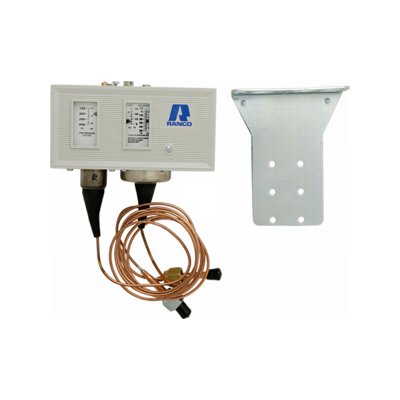

Ranco O12-4834 Pressure Control - Dual Function 120/240 VAC (48 in Capillary) Replacement O12-4834

Product Description

Ranco O12-4834 is a dual-function pressure control combining low- and high-pressure sensing for HVAC and refrigeration systems. It provides a low cut-in range of 10 in Hg to 100 PSIG with a 10–40 PSIG differential and a high cut-out range of 150–450 PSIG with a fixed 70 PSIG drop. The unit includes 48 in capillaries with flare nuts, selectable automatic or manual high reset, and SPST switching rated for 120/240 VAC.

• Low pressure: 10 in Hg to 100 PSIG (differential 10–40 PSIG); high pressure: 150–450 PSIG (fixed 70 PSIG drop)
• 48 in capillary with 1/4 in SAE flare nut; high reset selectable automatic or manual; low reset automatic
• Electrical and contact ratings: 24 A full load @ 120/240 VAC; 144 A locked rotor @ 120/240 VAC; 720 VA pilot duty; SPST switch

Product Highlights

Dual-function SPST pressure control for HVAC/refrigeration with 48 in capillary, 10 in Hg–100 PSIG low range, 150–450 PSIG high range, and selectable high reset

Product Information

Standard Information

• Brand: RANCO
• Manufacturer Part Number: O12-4834
• Country of Origin: Mexico
