Product Description

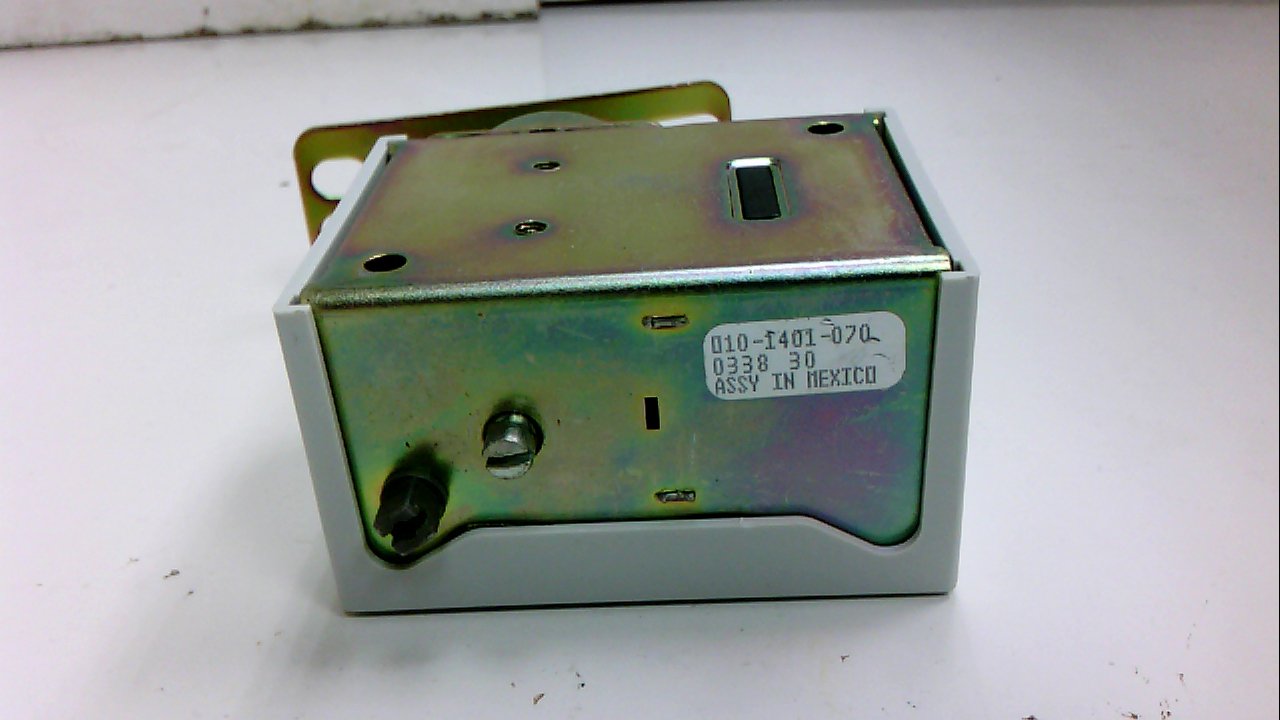

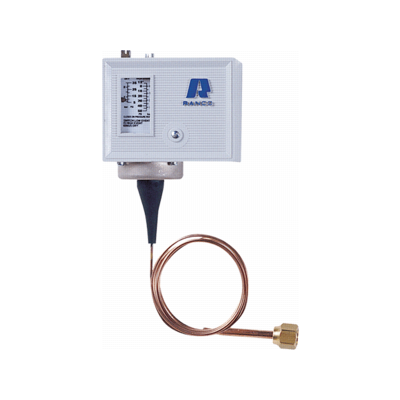

The RANCO O10-1401 low pressure control switch features a SPST switch that closes on high and opens on low. It has a range of 12" VAC to 50 PSIG and a 1/4" male flare connector. It is compatible with refrigerants R-410A, R-134A, R-401A, R-401B, R-402A, R-402B, R-403A, R-403B and R-404A.
- NEMA 1 Enclosure with non-conductive cover
- Front-located captive cover screw
- Super Cap capillary protection system
Product Highlights
The O10-1401 pressure control is designed for universal mounting and has a compact design with laser-welded bellows for extended life.
Product Information
Standard Information
-
Brand: RANCO
-
Manufacturer Part Number: O10-1401
-
Country of Origin: Mexico
Technical Specifications
-
MPN: O10-1401
-
Connections: 1/4" SAE Flare Nut
-
Differential: 5 - 35 psi
-
Pressure Range: 12"Hg - 50 psi
-
Reset: Auto
-
Series-Brand: O Series
-
Switching: SPST
-
Pressure Connection: 1/4 in Male Flare
-
Contact Form: SPST
-
Differential Pressure (PSI): 5 to 35
-
Enclosure: NEMA 1
-
Function: To Protect the Compressor Loss of Refrigerant in Commercial Refrigeration and Air Conditioning Systems
-
Input Sensor Type: Pressure Sensor
-
Item: Single Pressure Control
-
Mounting: Universal
-
NEMA Rating: 1
-
Pressure Connection Gender: Male
-
Pressure Connection Size: 1/4 in
-
Pressure Connection Type: Flare
-
Pressure Differential - Minimum: 5 psi
-
Pressure Differential Max.: 35 psi
-
Pressure Range - Maximum: 50 psi
-
Pressure Range - Minimum: 12 in Hg
-
Pressure Type: Differential
-
Product Type: Single Pressure Control
-
Range (PSI): (12 in) to 50
-
Rated Voltage: 120V AC, 240V AC, 24V AC, 277-600V AC
-
Reset Type: Automatic Reset
-
Switch Action: Open on Fall
-
Switch Type: SPST
-
Type: Low Pressure
-
Brand: Ranco
-
Model: 010-1401
-
Country of Origin: United States
