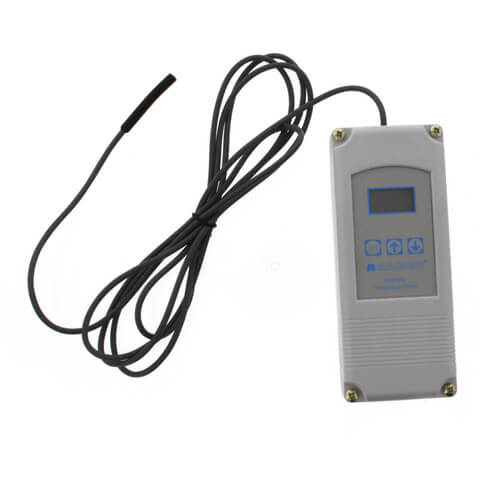

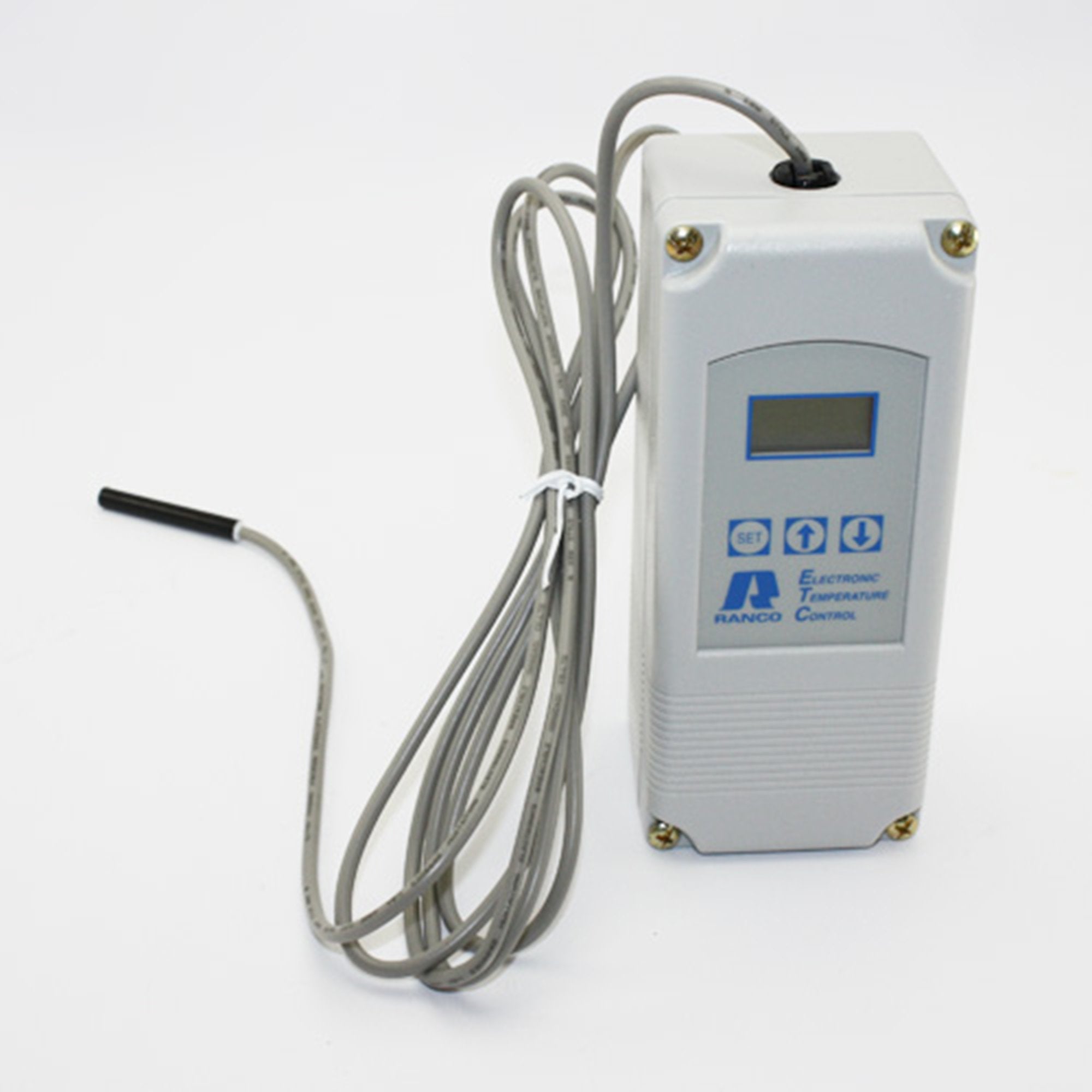

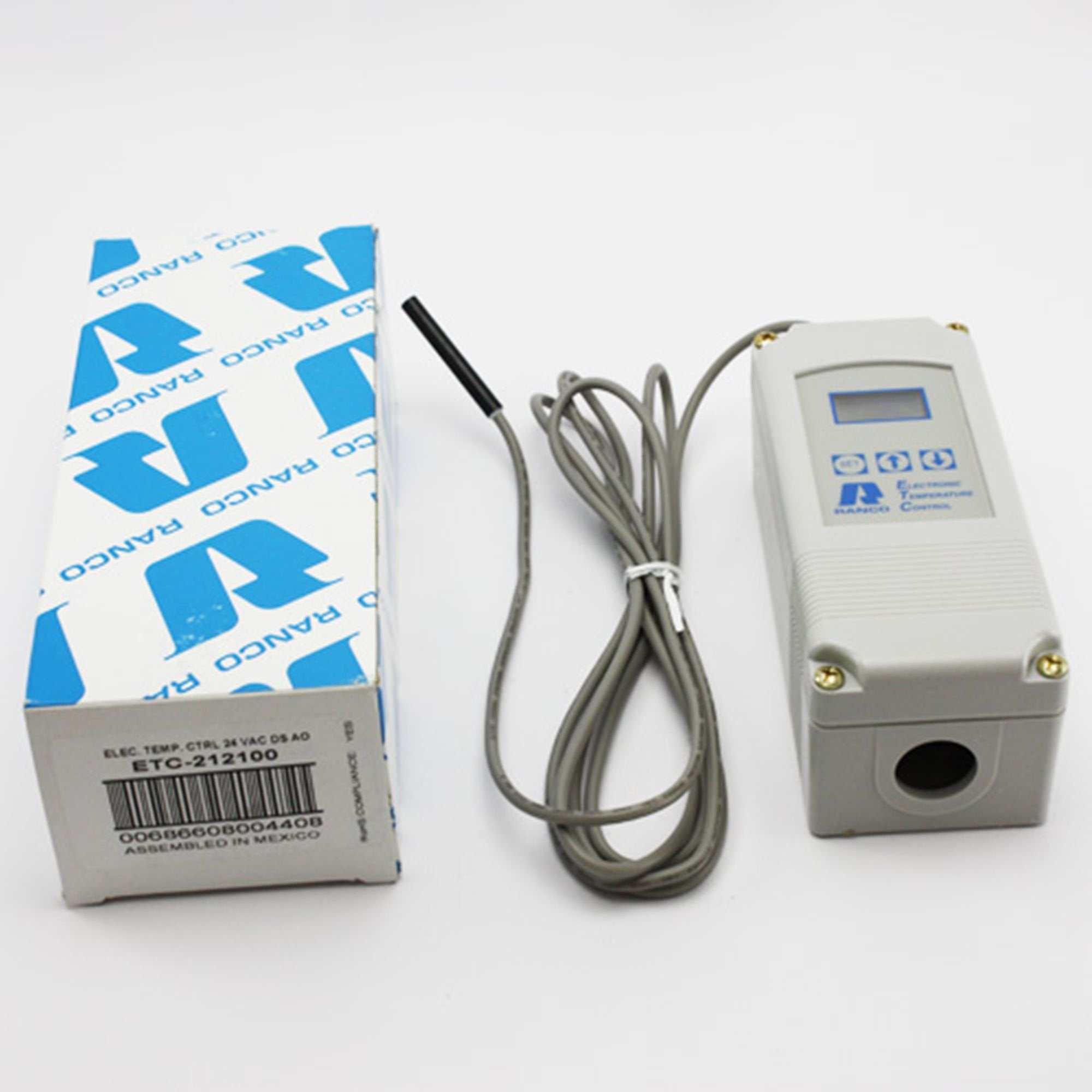

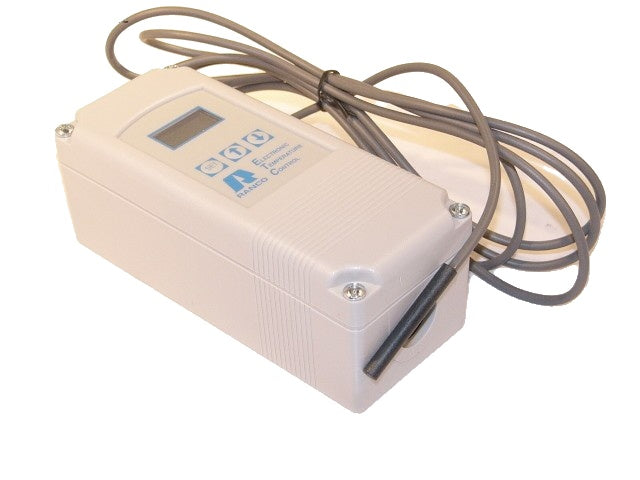

Ranco ETC-212100-000 Two Stage Temperature Control with Sensor 24V Input 0-10V Output Replacement ETC-212100

Product Description

The Ranco ETC-212100-000 Two Stage Temperature Control with Sensor is engineered for precise temperature management in industrial settings. This control unit features a 24V input and a 0-10V output which are essential for various temperature-dependent operations.

• Wide temperature control range from -30 to 220 degrees Fahrenheit
• Remote temperature sensing capabilities up to 400 feet using 22 gauge sensor wire
• Built-in diagnostic programs for error detection and a keypad lockout to prevent unauthorized setting changes

Product Highlights

The device provides real-time temperature readouts and includes a digital display for easy programming and monitoring. It supports both heating and cooling operations, making it versatile for different environmental needs.

Product Information

Standard Information

• Brand: Ranco
• MPN: ETC-212100-000
• Input Voltage: 24V
• Output Voltage: 0-10V

Technical Specifications

• Temperature Range: -30 to 220°F
• Control Type: Two Stage
• Sensor Type: Thermistor
• Switch Type: SPDT
• Enclosure Type: NEMA-1
• Humidity Range: 0 to 95% RH (Non Condensing)
