Ranco ETC-111100-000 Electronic Temp Control 120 to 240 VAC (Single Stage) ETC-111100-000

RANCO
Brand: RANCO
SKU: ETC-111100-000
Availability: In Stock

Ships same day if ordered by 12 pm
$243.30
$243.30
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

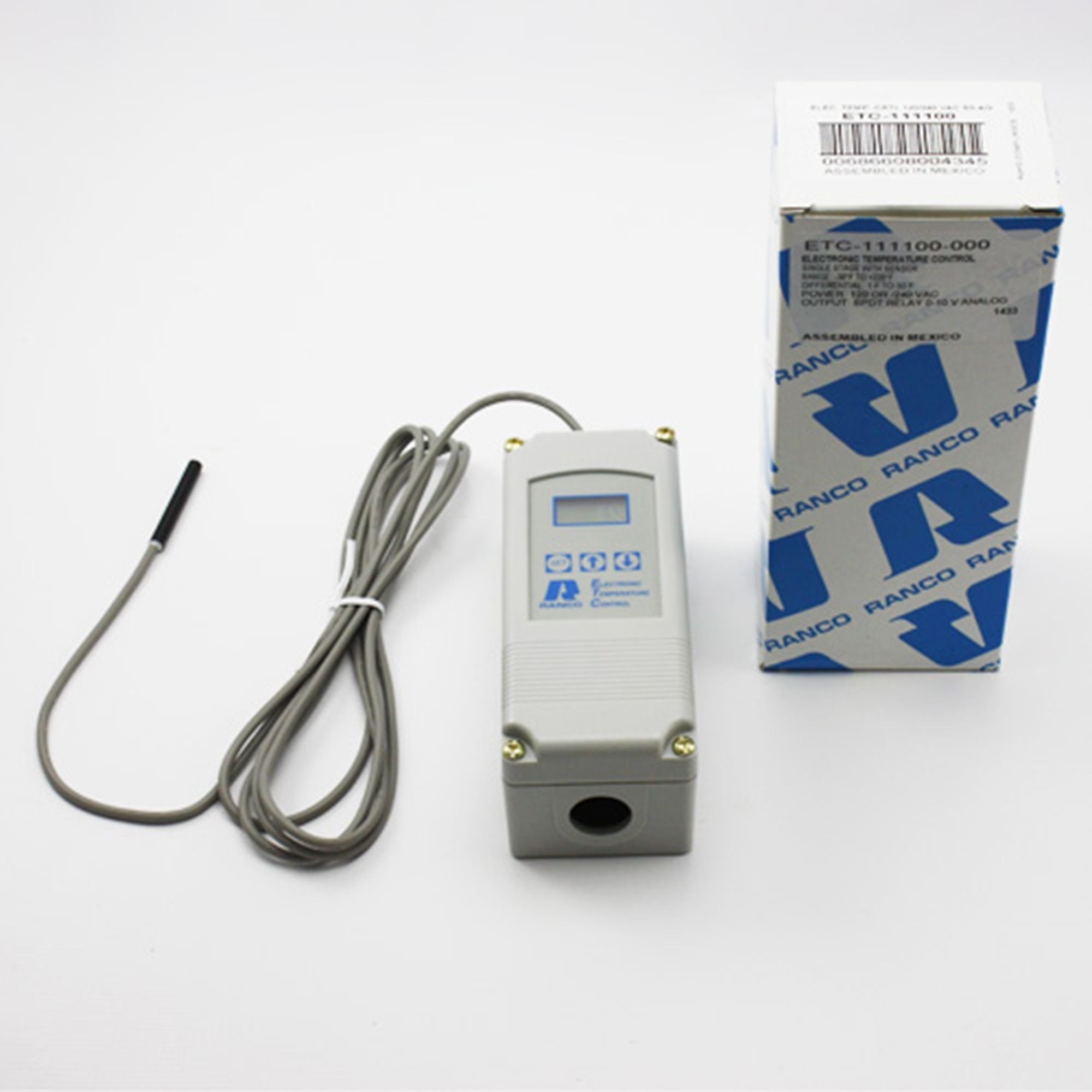

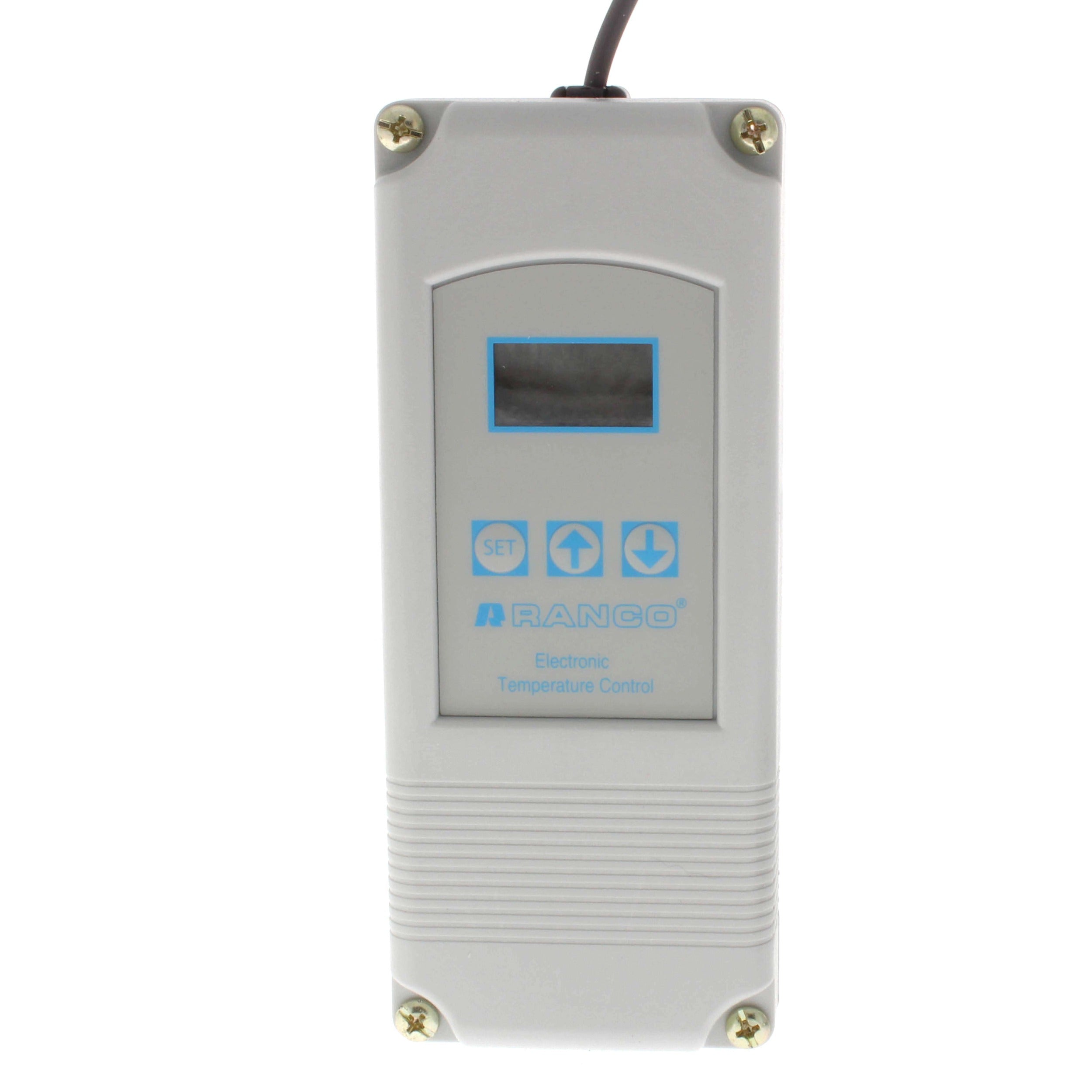

The Ranco ETC-111100-000 is a single-stage electronic temperature control that monitors temperature with a thermistor sensor and actuates an SPDT relay. It supports 120/208/240 VAC supply, provides a 0 to 10 V analog output for monitoring, and has a -30 to 220 F control range with 1 to 30 F differential. The unit is NEMA 1 rated and includes an 8 ft sensor lead.

  • Single-stage SPDT control with -30 to 220 F setpoint range and 1 to 30 F differential
  • Supports 120/208/240 VAC input, 0 to 10 V analog output, and relay full load ratings: 120 VAC 5.8 A (NC)/16 A (NO); 240 VAC 2.9 A (NC)/8 A (NO)

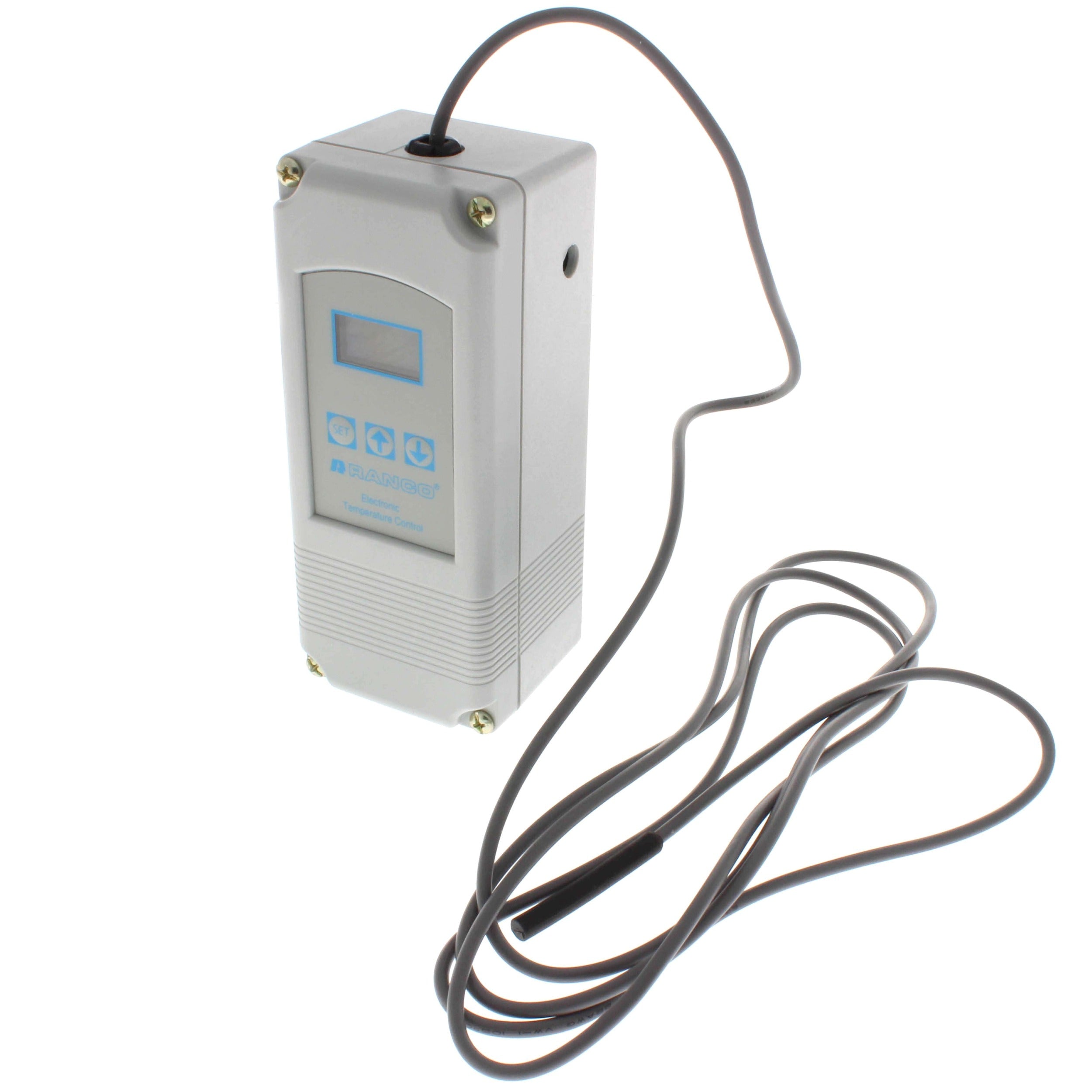

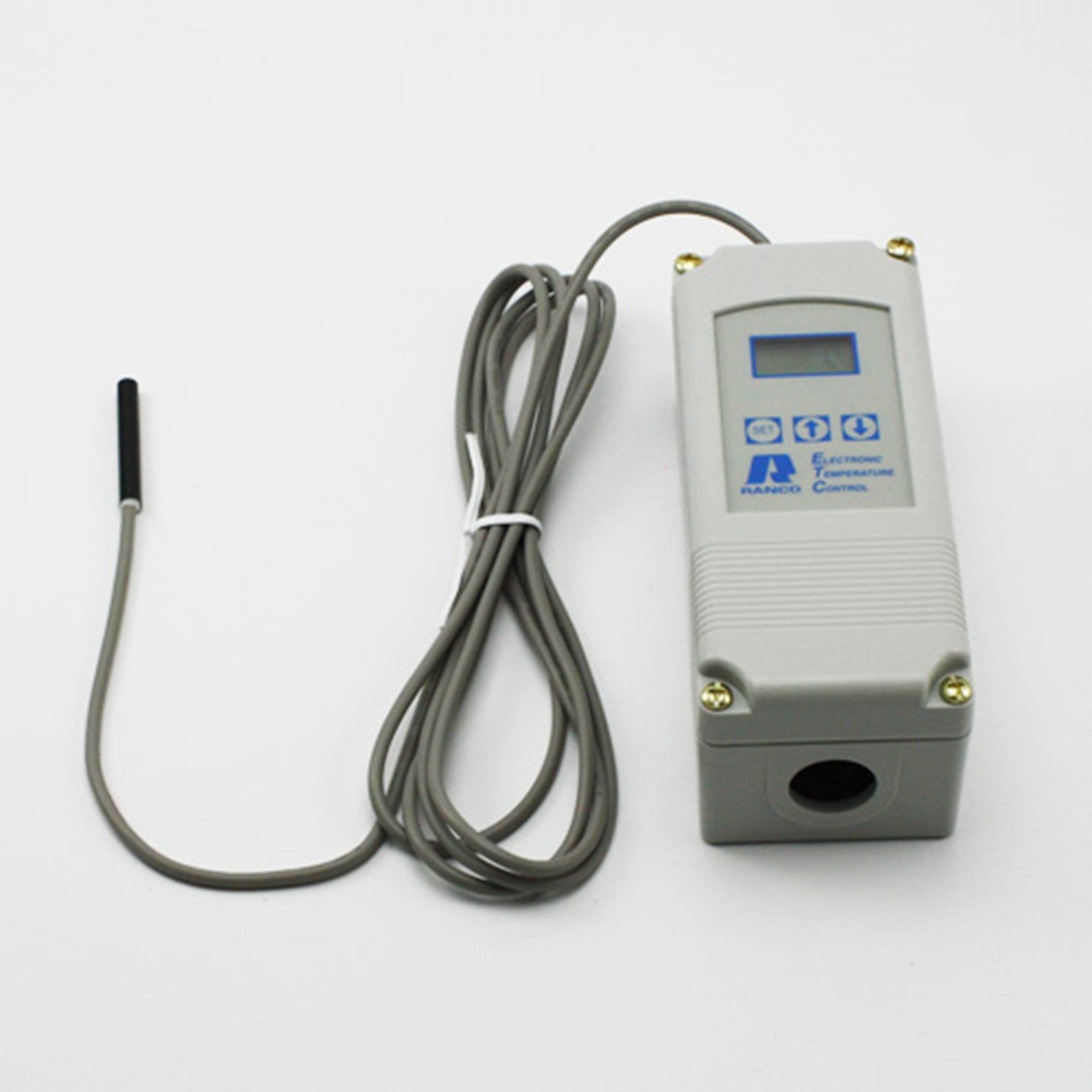

  • Thermistor sensor (2 in x 1/4 in) with 8 ft cable (extendable to 400 ft), digital display/keypad, diagnostics, and keypad lockout

Product Highlights

Single-stage electronic temperature controller with SPDT relay and 0-10 V output for HVAC and refrigeration temperature monitoring and control

Product Information

Standard Information

  • Brand: RANCO
  • Manufacturer Part Number: ETC-111100-000
  • Country of Origin: Mexico
Technical Specifications
Brand
Ranco
MPN
ETC-111100-000
Input Voltage
120/208/240 VAC
Output
0 to 10 V analog output
Output Impedance
1 K Ohms
Switch Type
SPDT (Single Pole Double Throw)
Switch Action
Open/Close on Rise
Number of Stages
One (single-stage)
Temperature Range
-30 to 220 F
Differential
1 to 30 F
Sensor Type
Thermistor
Sensing Bulb Diameter
1/4 in
Sensing Bulb Length
2 in
Sensor Lead Length
8 ft (extendable to 400 ft with 18 or 22 gauge wire)
Enclosure Rating
NEMA 1
Dimensions (H x W x D)
6.5 in x 2.75 in x 2.5 in
Weight
1.33 lb (603 g)
Relay Ratings (Full Load Amps)
120 VAC: 5.8 A (NC), 16 A (NO); 208/240 VAC: 2.9 A (NC), 8 A (NO)
Pilot Duty
125 VA
Locked Rotor Amps
120 VAC: 96 A (NO), 34.8 A (NC); 208/240 VAC: 48 A (NO), 17.4 A (NC)
Resistive Amps
120 VAC: 15 A (NO), 5.8 A (NC); 208/240 VAC: 8 A (NO), 2.9 A (NC)
Operating Ambient Temperature
-20 to 140 F
Storage Temperature
-40 to 176 F
Humidity Range
0 to 95% RH, non-condensing
Display
Digital display with 1 F resolution and keypad
Features
Built-in diagnostics with error codes; keypad lockout; anti-short cycle delay; EEPROM memory retains settings
Certifications
UL listed (file E94419, Guide XAPX); CSA certified (file LR68340, class 4813 02)
