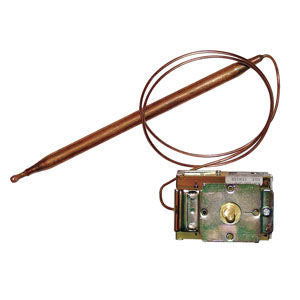

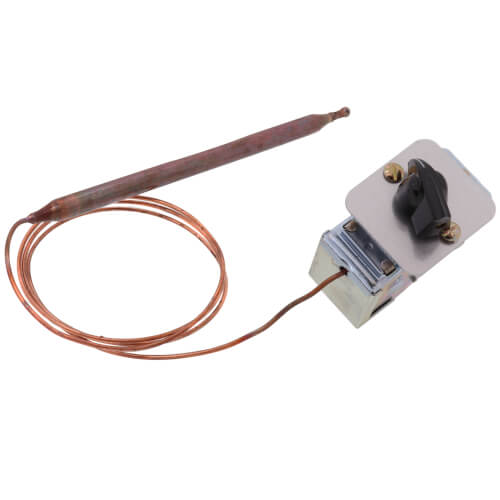

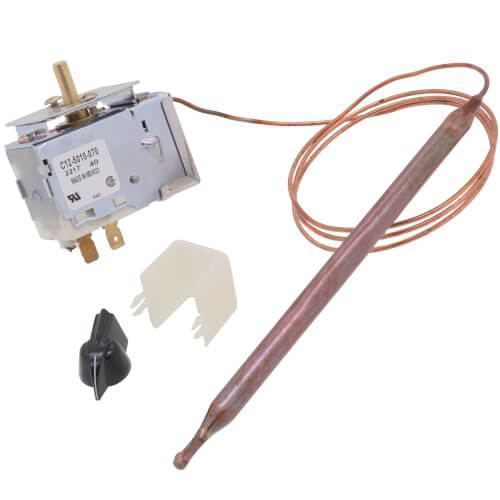

ROBERTSHAW C12-5010 SPDT Single Stage Heat-Cool Control 60-98F 36 Inch Cap 3/8 Inch X 9 Inch Bulb

Product Description

Explore the efficiency of the ROBERTSHAW C12-5010, a single pole double throw (SPDT) heat/cool control, perfect for maintaining a controlled environment. Ideal for both residential and commercial settings, this device operates with a temperature range from 60 degrees Fahrenheit to 98 degrees Fahrenheit, equipped with a capillary length of 36 inches and a bulb size of 3/8 inch by 9 inches.

• Dual-functionality for heating and cooling applications.
• Non-programmable, manually adjustable settings.
• Includes a copper bulb sensor for accurate temperature detection.

Product Highlights

Intended for diverse environments, the C12-5010 offers simple, efficient control over your HVAC systems without the need for complicated programming. Its robust construction ensures long-term reliability and performance under varying conditions.

Product Information

Standard Information

• Brand: ROBERTSHAW
• MPN: C12-5010

Technical Specifications

• Control Type: SPDT
• Temperature Range: 60 to 98 degrees Fahrenheit
• Voltage Rating: 120 to 277V AC
• Switch Action: Opens/Closes on temperature rise
• Sensing Bulb Size: 3/8 inch diameter by 9 inches length
• Capillary Length: 36 inches
• Electrical Capacity: 15A at 120VAC, 15A at 240VAC
• Mounting Type: Any position
