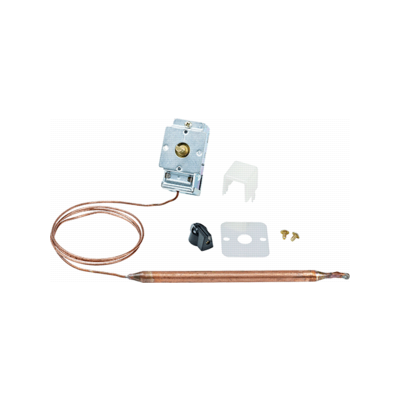

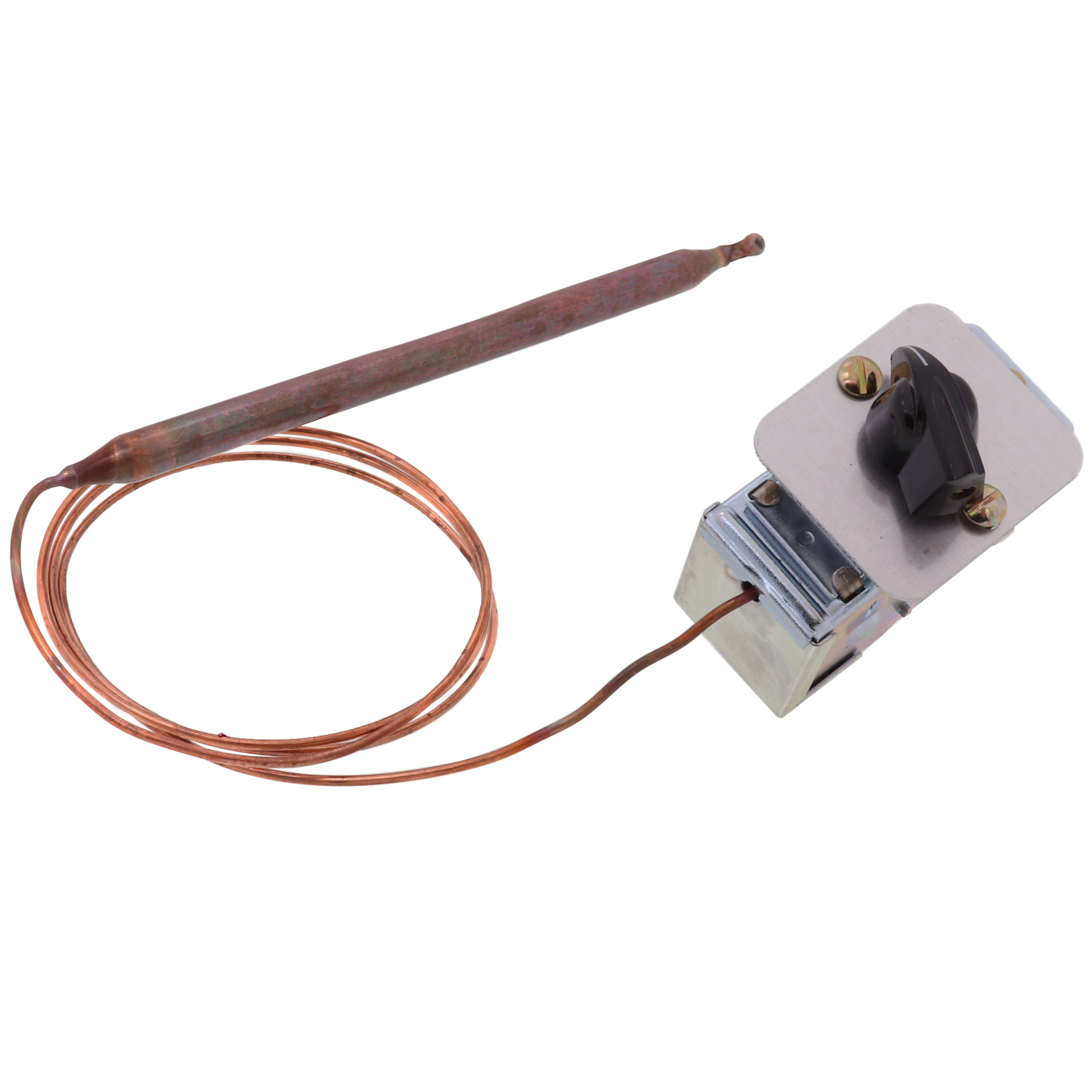

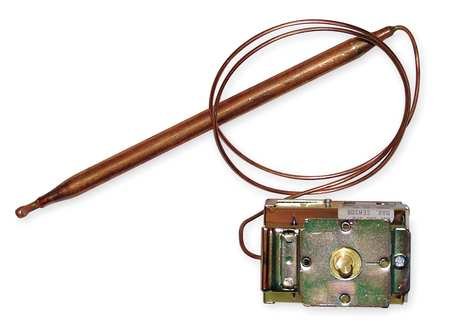

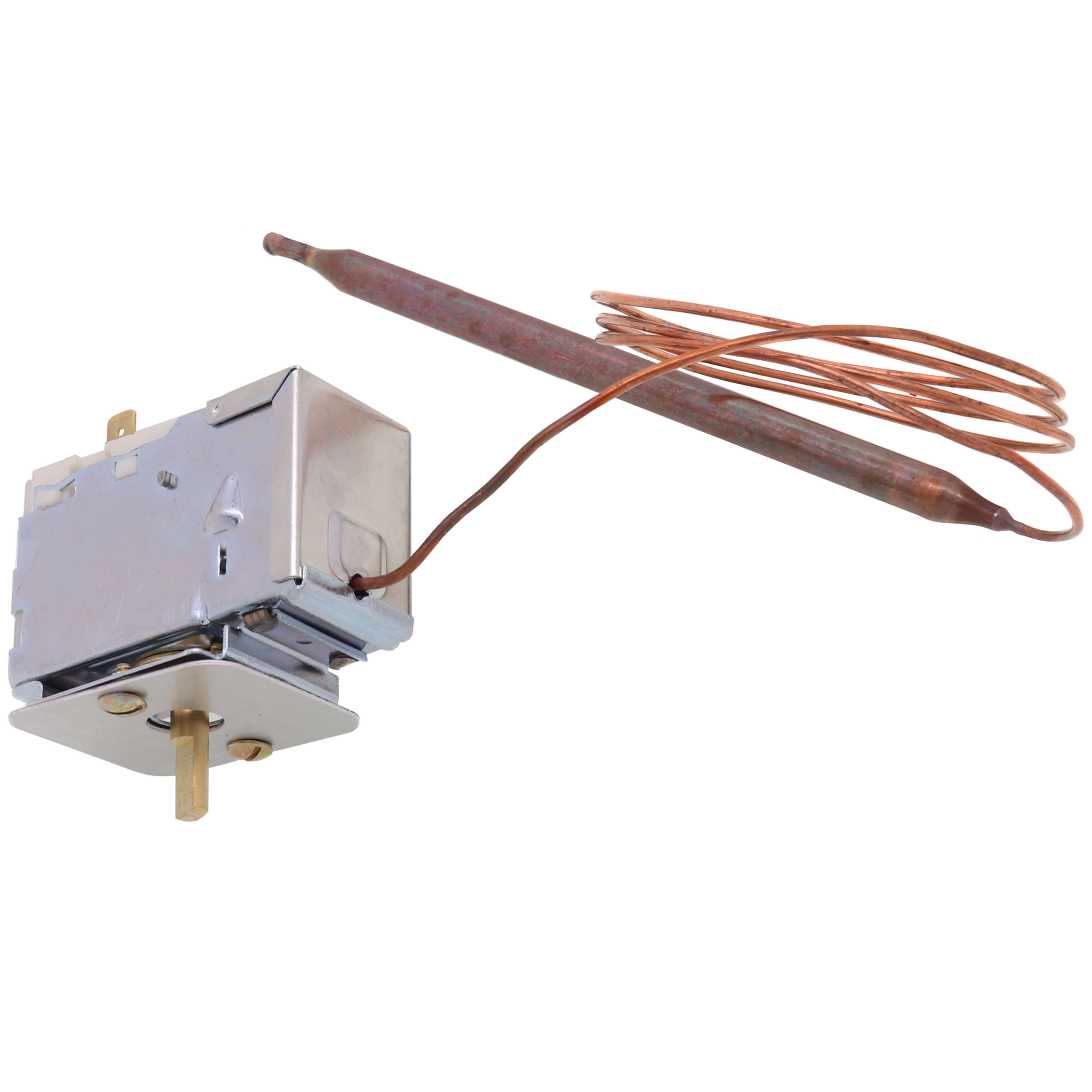

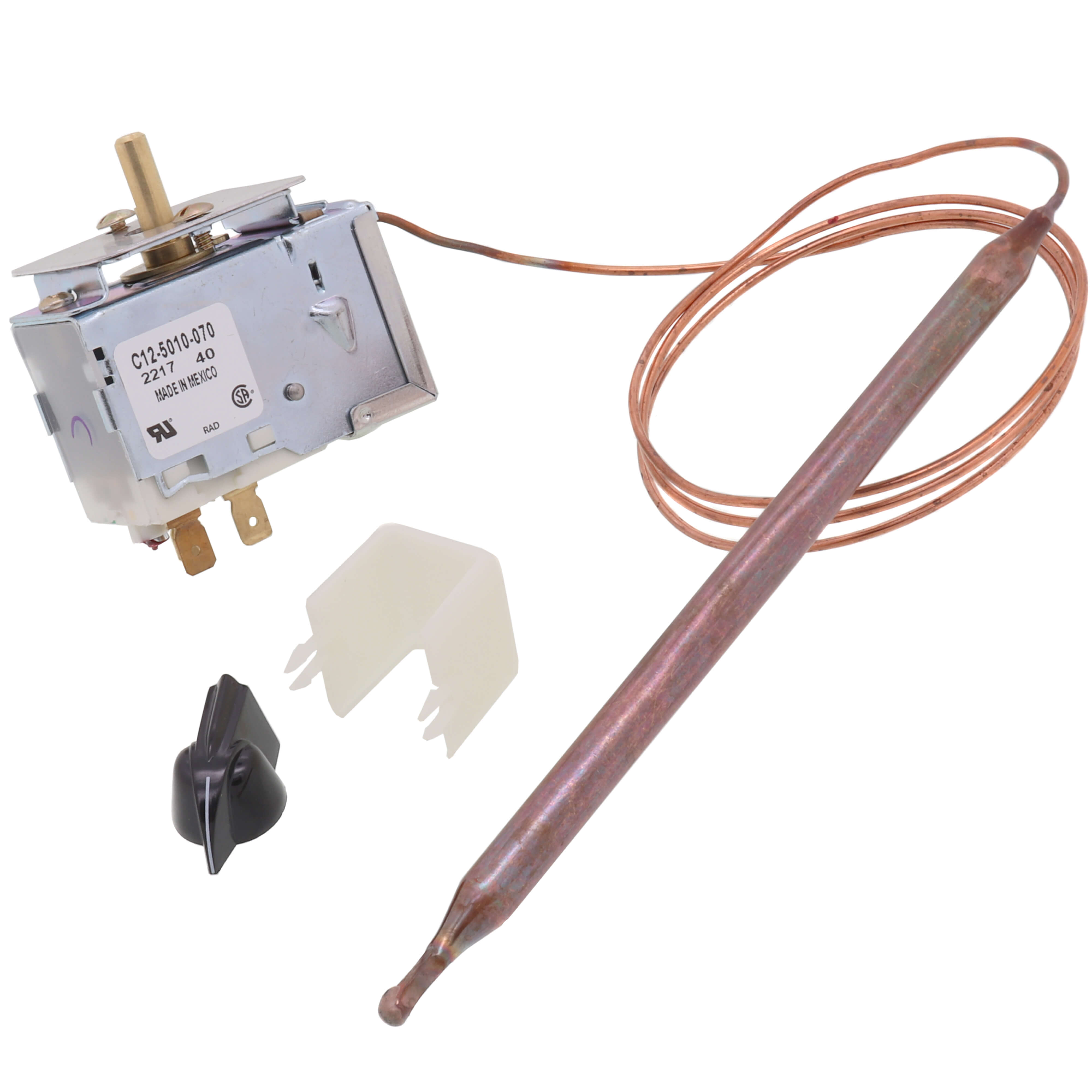

Ranco C12-5010 Htg/Clg A/C Control 3/8 Inch x 9 Inch Bulb, 36 Inch Capillary, 1-Stage

Product Description

The RANCO C12-5010 is a temperature control with a 3/8 Inch x 9 Inch bulb and a 36 Inch capillary. It features a 1-stage design and a temperature range of 60 to 98 Deg F. This control is suitable for refrigeration and air conditioner applications, replacing many OEM controls on single-stage units.

• Fixed or Adjustable Temperature Settings
• Laser-Welded Stainless Steel Sensing Elements
• Narrower Differentials Attainable

Product Highlights

The RANCO C12-5010 is ideal for maintaining precise temperature in refrigeration and air conditioning systems.

Product Information

Standard Information

• Brand: RANCO
• Manufacturer Part Number: C12-5010
• Country of Origin: Mexico

Technical Specifications

• Application: Refrigeration, Air Conditioner
• Contact Configuration: SPDT
• Contact Rating: 20 Amp at 125/240 Volt, 16 Amp at 277 Volt (Full Load), 80 Amp at 125/240 Volt, 60 Amp at 277 Volt (Locked Rotor), 240 Volt Amp at 125/240/277 Volt, 25 Amp at 125 Volt/16 Amp at 277 Volt (Resistive Load)
• Temperature Range: 60 to 98 Deg F
• Type: 3/8 Inch x 9 Inch Bulb, 36 Inch Capillary, 1-Stage
• Differential Temperature Rating: 3 Deg F
• Manufacturer: RANCO
• Product Type: Temperature Controls
• Thermostat Switch Type: SPDT
• Thermostat Voltage: 120 to 277VAC
• Full Load Amps @ 120VAC: 15A
• Full Load Amps @ 240VAC: 15A
• Thermostat Programmable: No
• Remote Sensing Capability: Yes
• Thermostat Heating/Cooling: Heating/Cooling
• Thermostat Item: Line Voltage Mechanical Thermostat
• Remote Sensing Bulb Included: Yes
• Switch Action: Open/Close on Rise
• Number of Switches: 1
• Differential: 3 Degrees F
• Height: 3"
• Width: 2-1/4"
• Depth: 3"
• Sensor Type: Copper
• Sensing Bulb Dia.: 3/8"
• Sensing Bulb Length: 9"
• Capillary Length: 36"
• Enclosure Type: None
• Inductive Amps @ 120V: 20A
• Inductive Amps @ 240V: 20A
• Contact Rating Resistive @ 120V: 25A
• Resistive Amps @ 208VAC: 25A
• Contact Rating Resistive @ 277V: 16A
• Pilot Duty Contacts (VA): 240VA
• Mounting Type: Any Position
• Mounting Location: On Unit
• Standards: None
• Series Application: C12/C21 Single Stage Control
• Sensing Element: 3/8" x 9" Bulb
• Switch: SPDT
• Brand: RANCO
• MPN: C12-5010
• Model: C12-5010
• UPC: 662013920883
