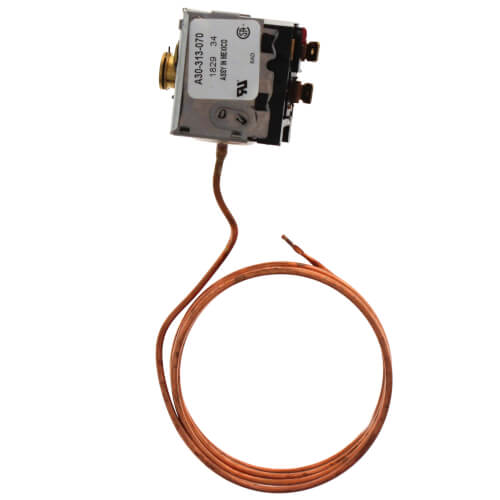

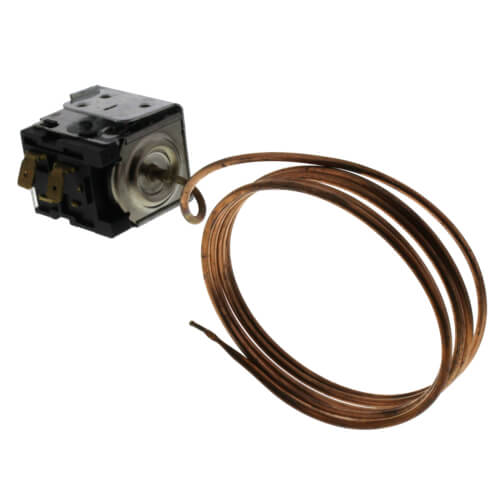

Ranco A30-313 SPST 42 inchesCap 8fDiff TempControl

Product Description

The Ranco A30-313 SPST temperature control switch offers precise temperature regulation for industrial applications. This single-pole, single-throw switch features a 42" capillary sensing bulb and an 8 0F fixed differential for accurate temperature control. Crafted from durable materials, the Ranco A30-313 ensures reliable performance in demanding environments.

• SPST (Single Pole Single Throw) switch for reliable temperature control
• 42-inch capillary tube for flexible installation
• 8°F differential for precise temperature regulation

Product Highlights

The Ranco A30-313 is ideal for HVAC systems, industrial process control, refrigeration equipment, and food and beverage processing.

Product Information

Standard Information

• Brand: RANCO
• Manufacturer Part Number: A30-313

Technical Specifications

• Item Number: A30-313
• Brand: Ranco
• MfgNum: A30-313
• Main Category: Refrigeration
• Category: Controls
• SubCat: Temperature
• SubSubCat: Refrigeration
• ItemNum: A30313
• Differential: 8 0F
• Normal Off ( 0F): -10
• Normal On ( 0F): 2
• Warm On ( 0F): 21
• Cold Off ( 0F): -20
• Capillary Length: 42"
• Switch Action: SPST
• Temperature Range: -20 0 to 21 0F
• Min Temp (F): -20 0F
• Max Temp (F): 21 0F
• URI Part Number: A30313
• Vendor Part Number: A30313
• Length (In.): 5.00
• Width (In.): 4.00
• Height (In.): 2.50
• Contact Rating (Amps): 20 F.L. Amp 240 Vac
• Switch: SPST, Open Low
• Series-Brand: A30 Series
• Switching: SPST
• Cold On: NA
• Off Position: Yes
