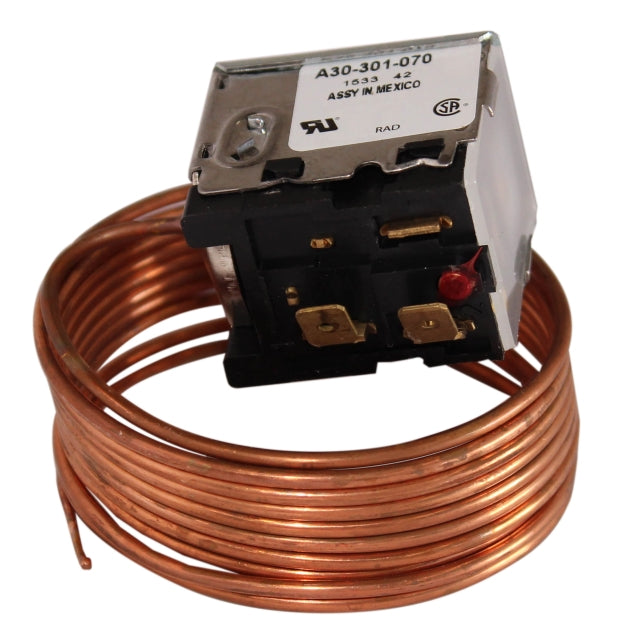

Ranco A30-301 Cold Control 84 inches Cap

Product Description

The RANCO A30-301 is a cold control designed to switch electrical components of refrigeration systems in response to sensed temperatures. It features a SPST switch and an 84" capillary tube. It is readily adaptable to nearly all commercial refrigerators and freezers. It does not have an "Off" position.

• SPST switch
• 84" Capillary Tube
• Adaptable Constant Differential Temperature Control

Product Highlights

This Ranco cold control is designed for refrigeration systems, ensuring reliable temperature regulation with its adaptable design and durable components.

Product Information

Standard Information

• Brand: RANCO
• Manufacturer Part Number: A30-301
• Country of Origin: United States

Technical Specifications

• AllPoints OEM Part Number: RCOA30-301
• OEM Part Number: A30-301
• OEM: Ranco
• Hazardous: false
• Product Category: Parts
• Product Type: Mavrik
• Vendor Name: Ranco/Robertshaw
• Capillary Length: 84"
• Contact Configuration: SPST
• Application: Refrigerator, Freezer
• Approval: UL (Canada and US)
• Temperature Range: -24 Deg F (Cold Off), 8.5 Deg F (Differential), -3 Deg F (Normal Off), 5.5 Deg F (Normal On), 20 Deg F (Warm On)
• Connection Type: 1/4 Inch Quick-Connect
• Contact Rating: 20 Amp at 120/240 Volt AC, 16 Amp at 277 Volt AC (Full Load), 80 Amp at 120/240 Volt AC, 60 Amp at 277 Volt AC (Locked Rotor), Pilot Duty 240 Volt Amp at 120/240/277 Volt AC, 16 Amp at 277 Volt (Resistive Load)
• Differential: 8.5 °F
• Switch: SPST, Open Low, No Off
• Series Application: A22/A30 Series Adaptable Constant Differential Control
• Cold Off: -24 °F
• Normal Off: -3 °F
• Normal On: 5.5 °F
• Warm On: 20 °F
• Off Position: No
• Comments: Does not have "Off" position
• Brand: Ranco
• Type: Refrigeration Controller
• Country of Origin: United States
• Contact Rating (Amps): 20 F.L. Amp 240 Vac
