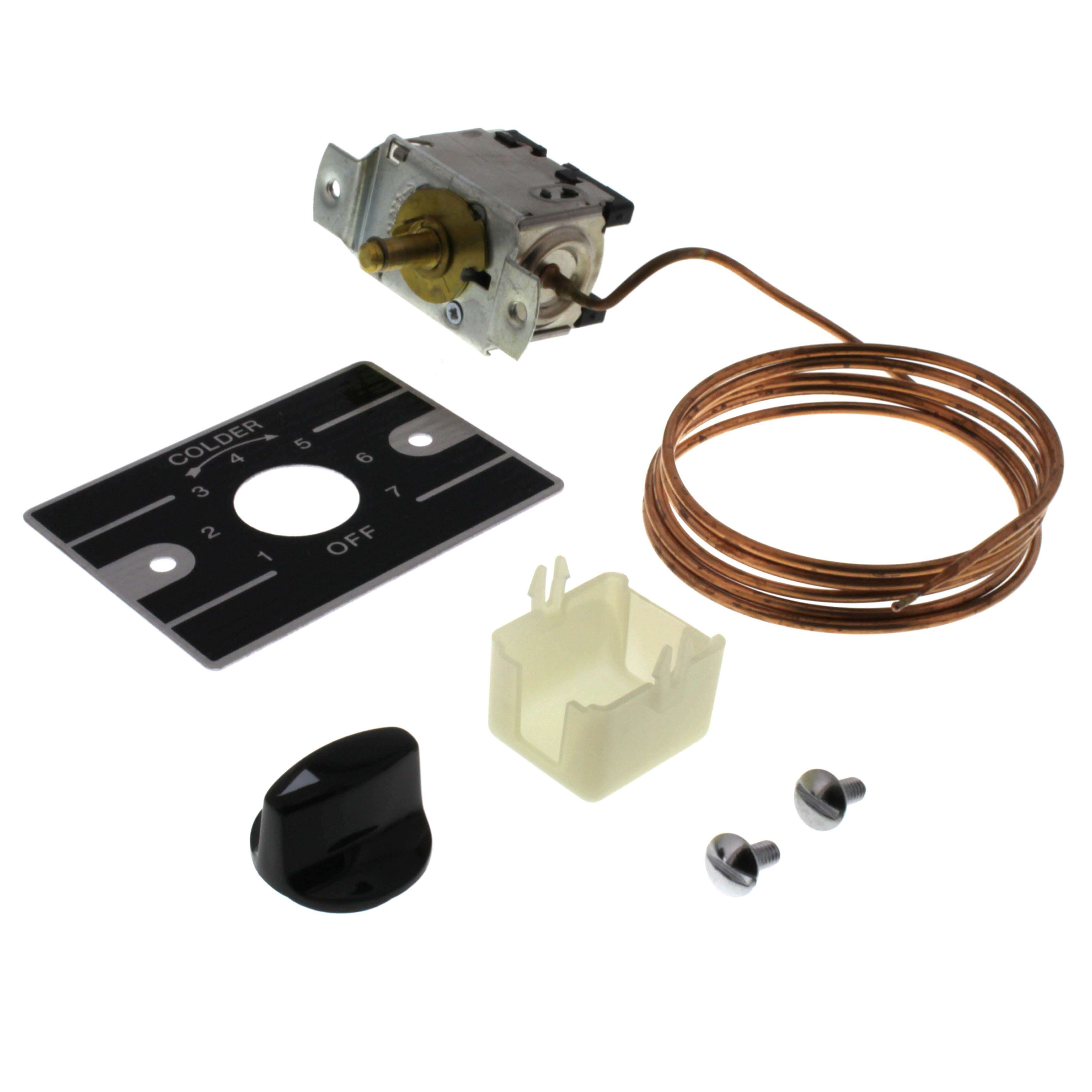

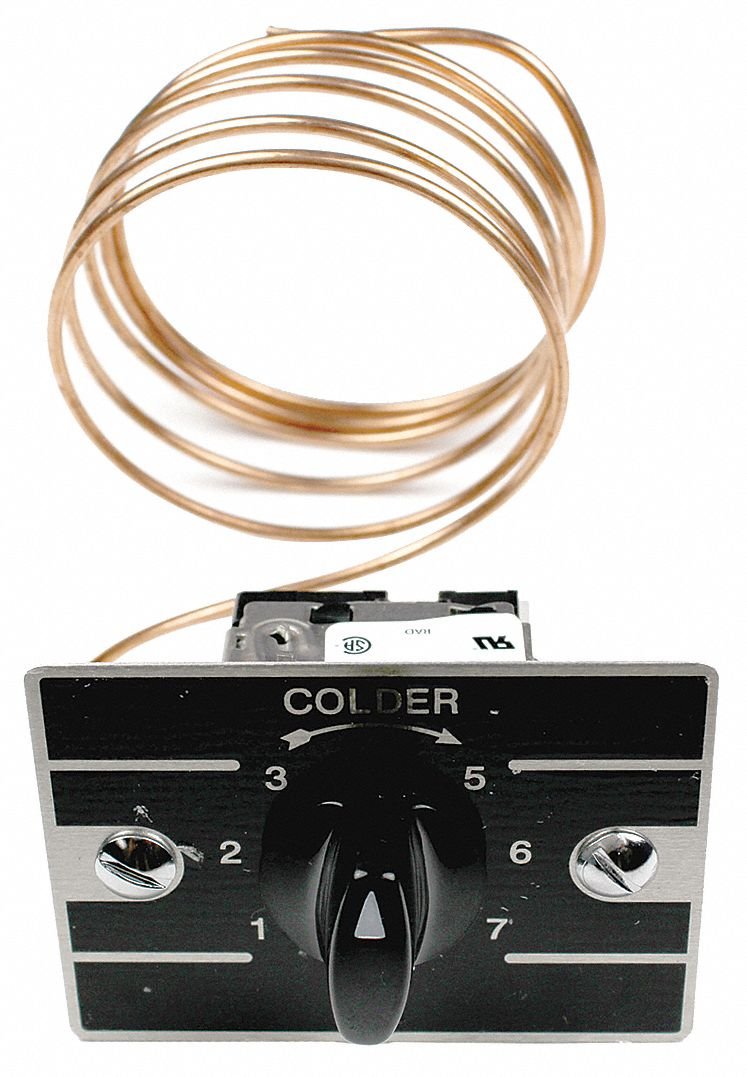

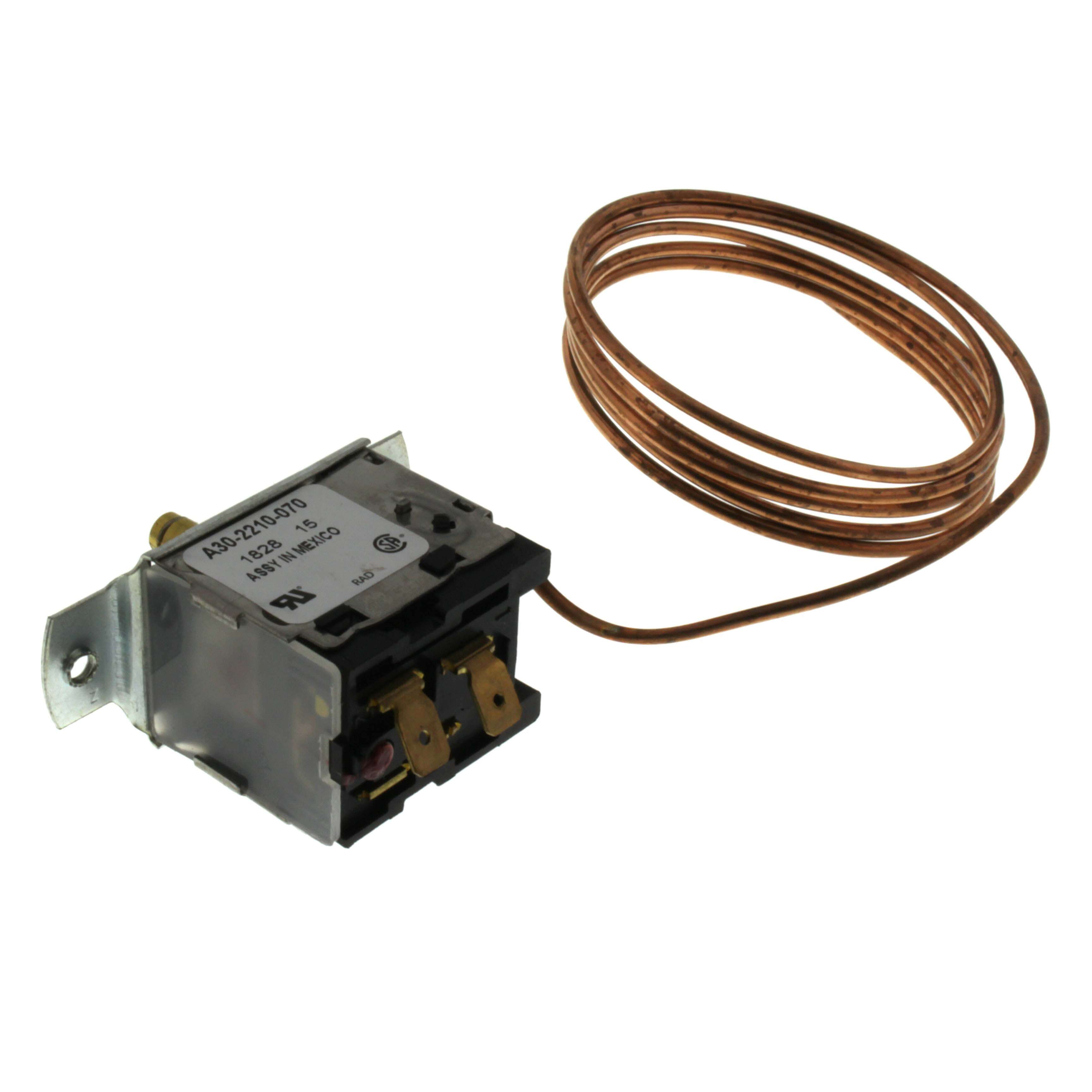

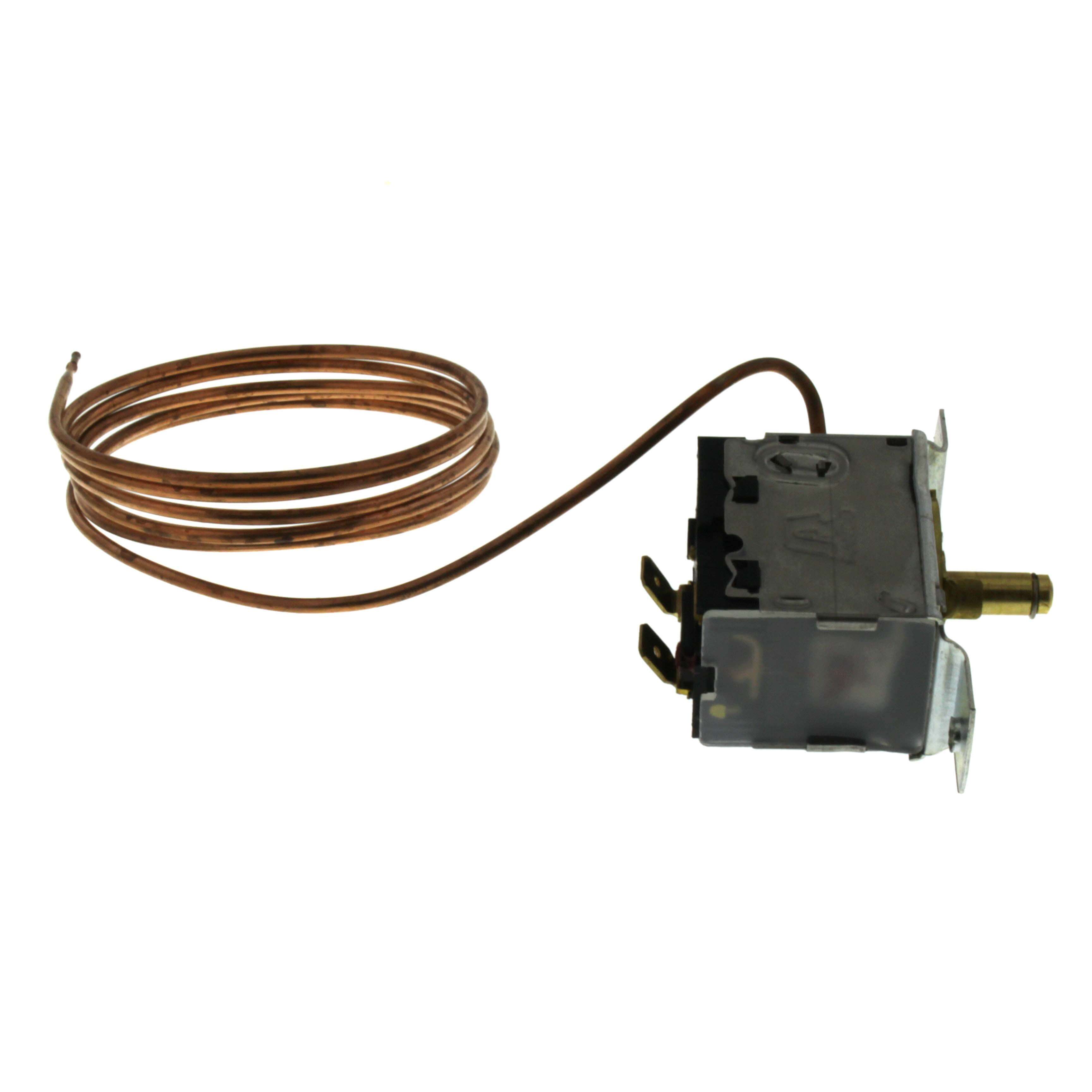

Ranco A30-2210 Control, Temperature 48 inches Capillary

Product Description

The RANCO A30-2210 is a temperature control device designed for refrigeration systems. It features a constant differential and SPST switching with an off position. This control is suitable for commercial refrigerators, ice machines, vending machines, beverage coolers, and water coolers.

• Constant differential control
• SPST Switching with "off" position
• 48" Capillary length

Product Highlights

Designed for refrigeration systems, the RANCO A30-2210 ensures precise temperature management in commercial applications.

Product Information

Standard Information

• Brand: RANCO
• Manufacturer Part Number: A30-2210
• Country of Origin: Mexico

Technical Specifications

• Item Model Number: A30-2210
• MPN: A30-2210
• Main Category: Refrigeration
• Category: Controls
• SubCat: Temperature
• SubSubCat: Refrigeration
• Switch Type: SPST
• Capillary Length: 48"
• Differential: 8 °F
• Warm On: 42 °F
• Cold Off: 30 Degrees F
• Normal On: 40 °F
• Normal Off: 32 °F
• Control Range (F): 32 to 61
• Voltage: 120/240
• Full Load Amps: 20
• Locked Rotor Amps: 80/80
• Application: Refrigeration
• Approval: UL (Canada and US)
• Connection Type: 1/4 Inch Quick-Connect
• Contact Configuration: SPST
• Temperature Range: 30 DEG F to 42 DEG F
• Off Position: Yes
• Brand: Ranco
