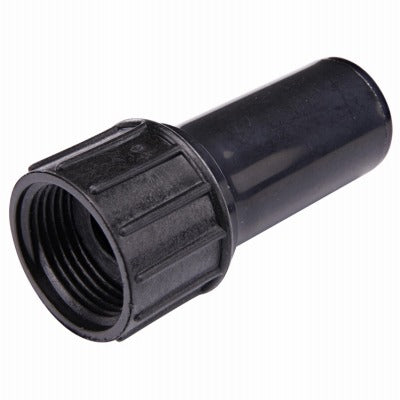

Raindrip Inc 328G00UB 3/4 in Swivel X 5/8 in Compression Adaptor

Product Description

The RAINDRIP INC 328G00UB is a swivel-to-compression adaptor designed to connect 5/8 inch poly hose to a 3/4 inch male pipe thread fitting. One end features a 3/4 inch male pipe thread swivel connection, while the other accepts 5/8 inch poly hose with an outside diameter ranging from 0.690 inches to 0.700 inches via a compression-style fitting. A washer is included to ensure a leak-resistant seal at the swivel connection. The black compression ring secures the hose without requiring adhesives or clamps. This adaptor is commonly installed by irrigation technicians and plumbers during drip or micro-irrigation system assembly.

This fitting is used in residential and light commercial drip irrigation systems where a poly hose supply line must transition to a threaded pipe outlet, such as a hose bib, manifold port, or zone valve. It is compatible with 5/8 inch poly hose only, within the 0.690 inch to 0.700 inch OD range. The swivel design allows the hose to be oriented without twisting the hose line during installation. Each package contains 50 units, making it practical for contractors installing multiple zones or lateral runs.

Key Features

• 3/4 inch male pipe thread swivel end with included washer for a reliable seal
• 5/8 inch compression end accepts poly hose with 0.690 inch to 0.700 inch OD
• Black compression ring secures hose without clamps or adhesives
• Swivel design prevents hose twisting during installation
• Sold in a 50-unit package, suited for multi-zone irrigation projects

Compatibility

Compatible with 5/8 inch poly hose with an outside diameter of 0.690 inches to 0.700 inches only. Connects to 3/4 inch male pipe thread fittings. Not rated for use with other hose diameters or materials.

Installation Notes

Installation is typically performed by irrigation technicians or plumbers. Shut off the water supply and relieve system pressure before making any connections. Hand-tighten the swivel end onto the male pipe thread, then use pliers as needed to snug the fitting without overtightening, which can crack the compression body. Verify hose OD falls within the 0.690 inch to 0.700 inch range before seating the compression ring.
