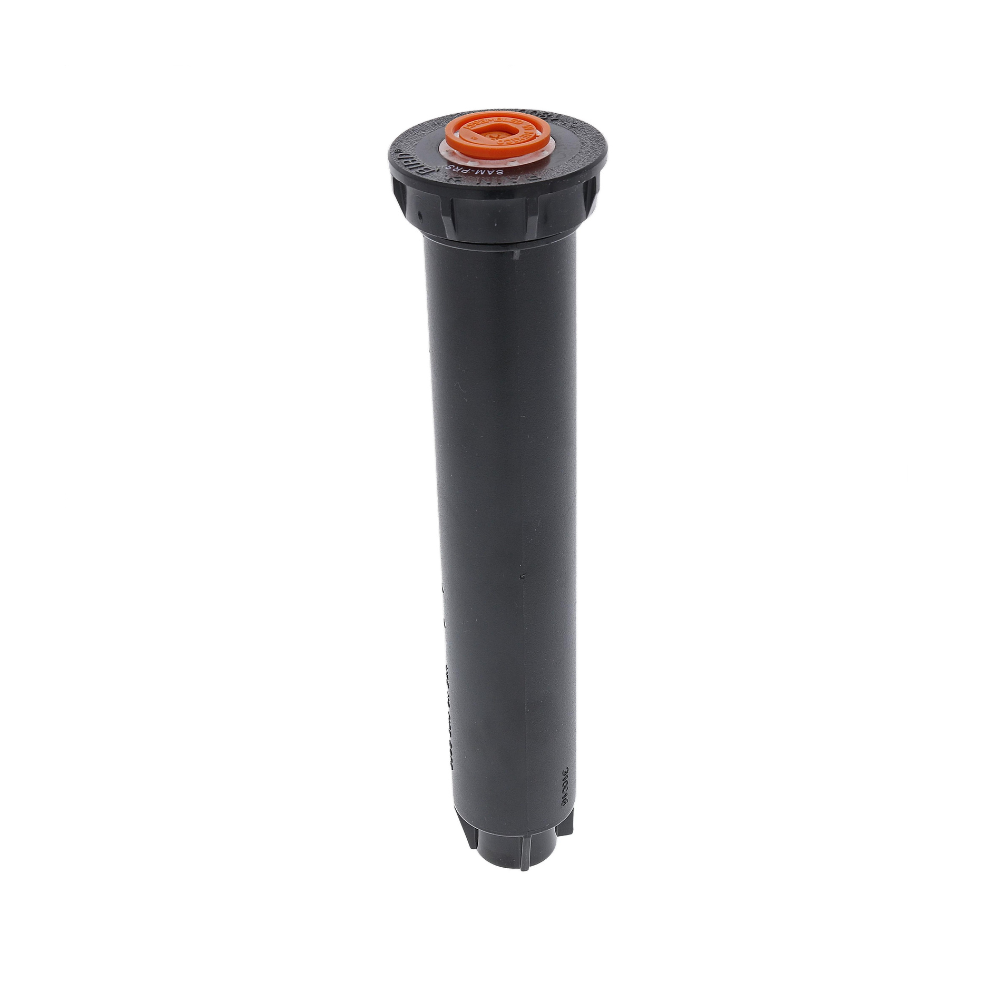

Rainbird 1806SAM 1800 Series SAM Spray Head 6 in No Nozzle

Product Description

The Rain Bird 1806SAM is a six-inch 1800 Series pop-up spray head featuring a Seal-A-Matic check valve. This product efficiently manages water flow in elevation changes of up to fourteen feet, which reduces wear on system components and minimizes water hammer during start-up. The design prevents drainage from spray heads positioned at lower elevations.

• Built-in Seal-A-Matic check valve
• Pressure-activated, multi-functional wiper seal
• Top-removable components for easy maintenance

Product Highlights

The 1806SAM is designed for use with all Rain Bird plastic spray head nozzles, offering a reliable performance in both residential and commercial applications.

Product Information

Standard Information

• Model: 1806SAM
• Application: Residential and Commercial

Technical Specifications

• Pop-up Height: 6 inches
• Spacing: 3 to 20 feet
• Pressure: 25 to 70 psi
• Inlet Size: 1/2 inches
• Check Valve: SAM
• Spray Head Spring: Stainless Steel
• Warranty: 5 Years
• Installation: Bottom inlet
