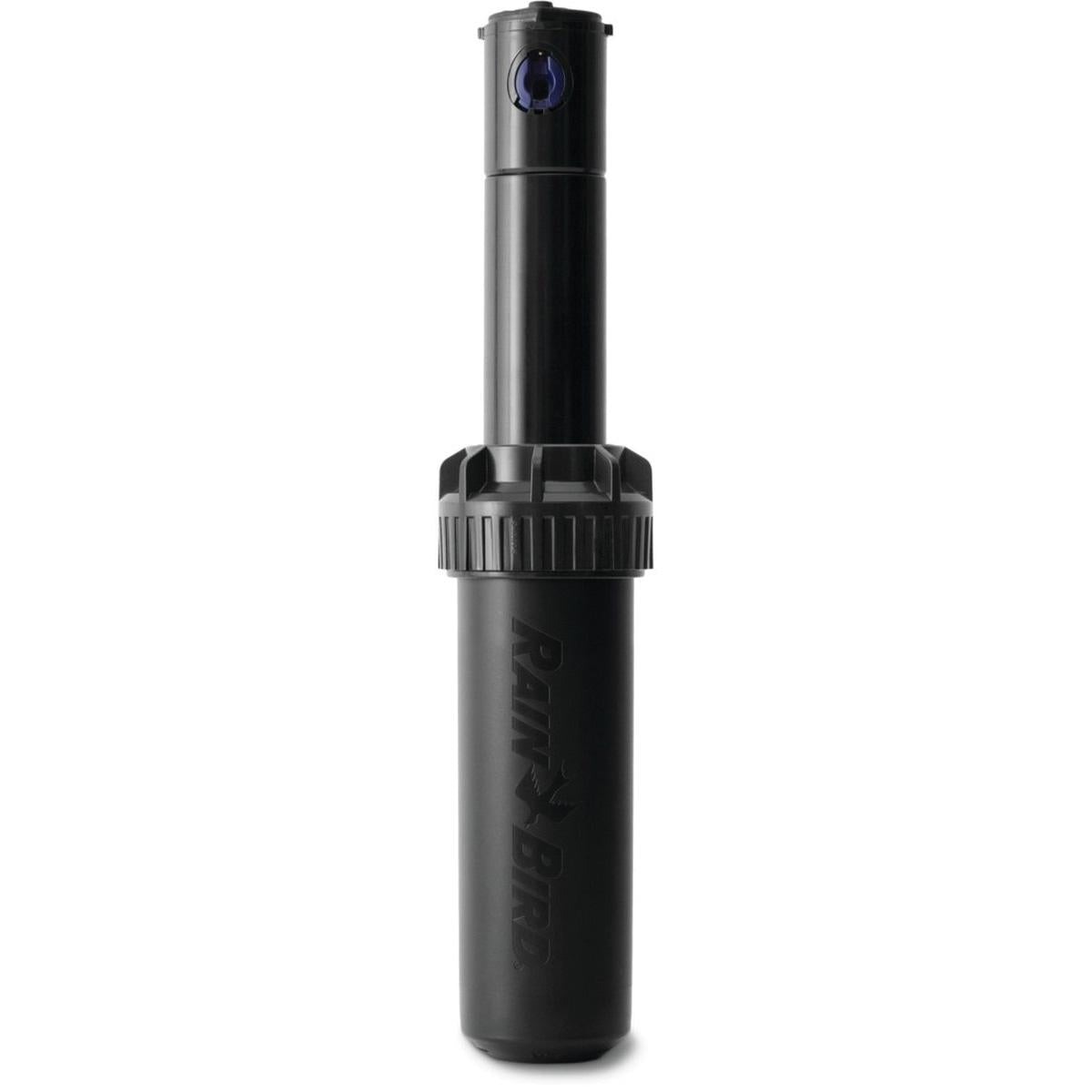

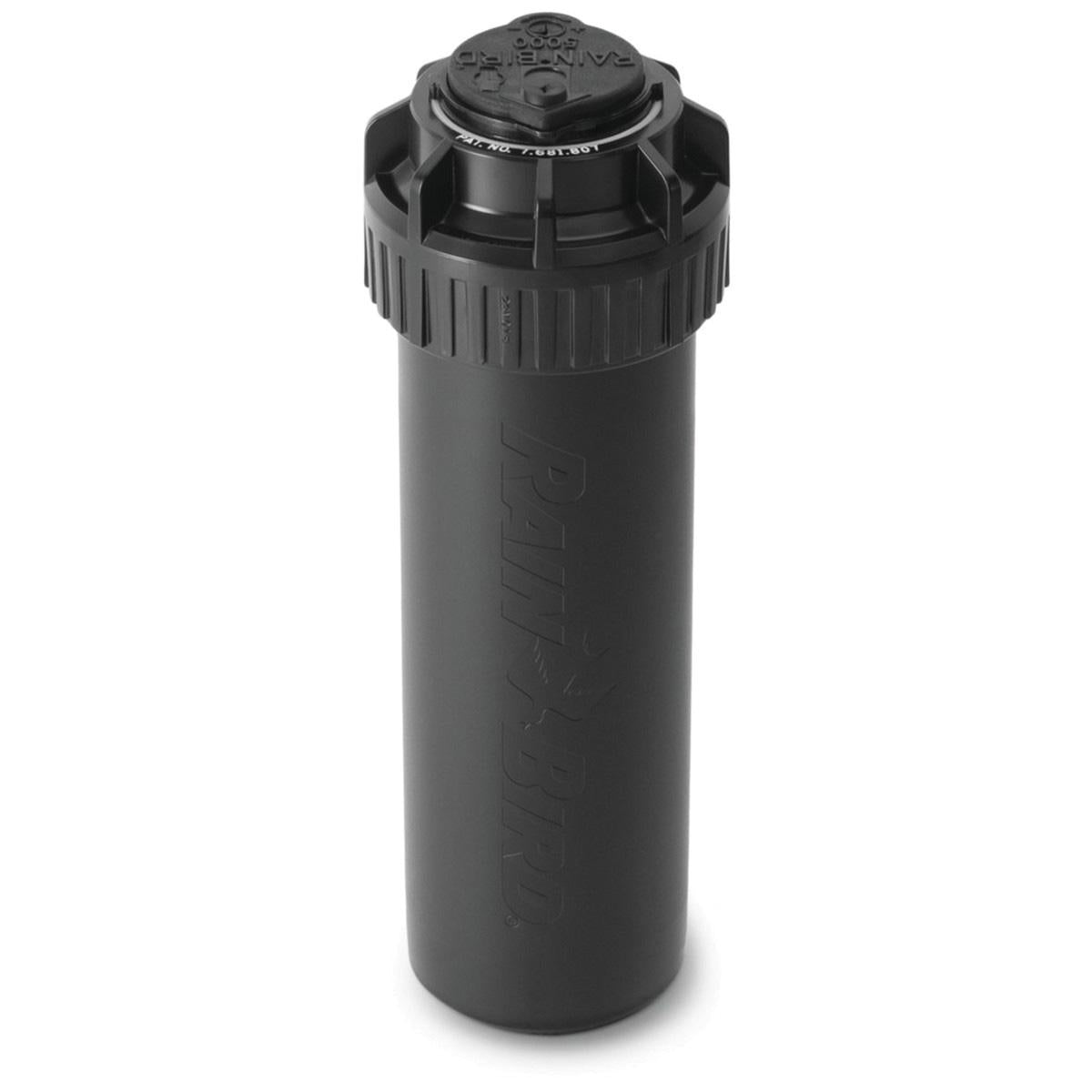

Rain Bird y65750ss 5000 Plus Series Part-circle Rotor

Product Description

The RAIN BIRD y65750ss is a 5000 Plus Series pop-up rotor sprinkler designed for professional irrigation installations in residential and light commercial turf applications. It delivers a part-circle spray pattern with an operating range of 15 to 50 feet and a flow rate of 0.76 to 9.63 GPM, making it adaptable across a wide range of zone layouts. The rotor operates at 20 to 65 psi and features a 4-inch pop-up height to clear typical turf grass. Licensed irrigation contractors and landscape professionals are the primary installers of this type of rotor head.

This rotor is suited for turf zones in residential lawns, parks, golf course roughs, and commercial landscapes where part-circle coverage is needed. The 3/4-inch NPT connection makes it compatible with standard lateral pipe fittings used in low-voltage-controlled irrigation systems. The precipitation rate of 0.20 to 1.01 inches per hour allows system designers to match application rates to soil absorption capacity, reducing runoff on sloped or clay-heavy sites.

Key Features

• Part-circle spray pattern with 15 to 50 foot operating radius
• Flow rate range of 0.76 to 9.63 GPM supports multiple nozzle configurations
• Operating pressure range of 20 to 65 psi
• 4-inch pop-up height clears standard turf grass
• 3/4-inch NPT connection fits standard irrigation lateral piping
• Precipitation rate of 0.20 to 1.01 inches per hour for matched application design

Compatibility

Designed as an OEM-style replacement or new-installation rotor within the Rain Bird 5000 Plus Series irrigation system platform.

Installation Notes

Installation should be performed by a licensed irrigation contractor following local codes and manufacturer spacing guidelines. Shut off the irrigation system water supply and depressurize the lateral line before replacing or installing the rotor head. Confirm operating pressure at the zone falls within the 20 to 65 psi range using a gauge at the head location before finalizing the layout. Hand-tighten the NPT connection and avoid over-torquing to prevent thread damage on the inlet.

Technical Specifications

• Series: 5000 Plus
• Spray Pattern: Part-Circle
• Operating Radius: 15 to 50 feet
• Flow Rate: 0.76 to 9.63 GPM
• Operating Pressure: 20 to 65 psi
• Precipitation Rate: 0.20 to 1.01 inches per hour
• Pop-Up Height: 4 inches
• Overall Height: 7.375 inches
• Connection Size: 3/4 inch
• Connection Type: NPT

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: y65750ss
