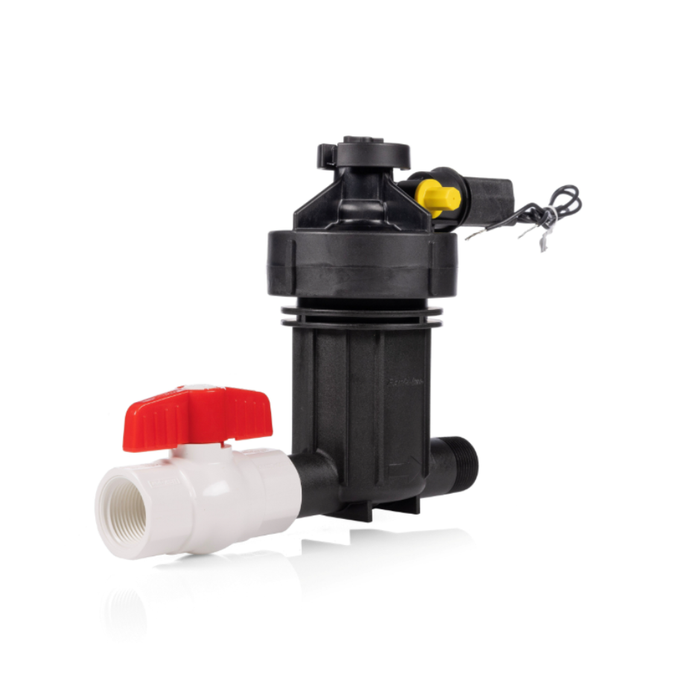

Rain Bird XAOZ100 All-in-One Zone Control 1in NPT

Product Description

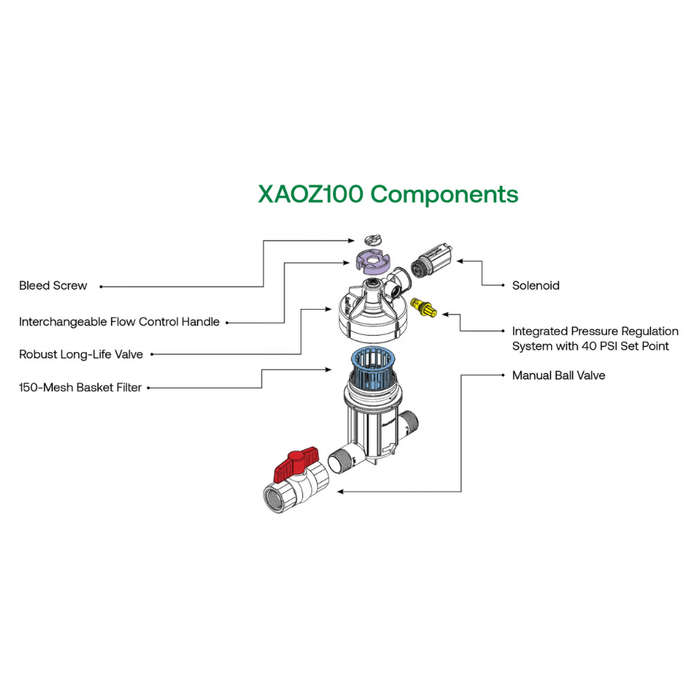

The RAIN BIRD XAOZ100 All-in-One Zone Control is a compact solution for commercial micro-irrigation. It integrates valve, filter, and regulator functions into a single device, designed to simplify installation and minimize valve box requirements. This unit works for virtually any commercial drip zone, offering a wide flow range and fitting into almost any valve box. It streamlines drip irrigation management by combining essential components.

• Pre-assembled for simple, streamlined installation
• Wide operating range covers virtually any commercial drip zone
• Includes optional purple handle for non-potable systems

Product Highlights

Integrates valve, filter, and regulator into a compact unit for simplified commercial micro-irrigation.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: XAOZ100

Technical Specifications

• Flow Range: 3 to 30 GPM
• Operating Inlet Pressure: 15 to 150 PSI
• Nominal Outlet Pressure: 40 PSI
• Filter Type: 150-mesh
• Controller Compatibility (Traditionally-wired): Traditional solenoid
• Controller Compatibility (TBOS/DC): DC latching solenoid
• Controller Compatibility (IVM): IVM SOL
• Controller Compatibility (2-wire decoder): ESP-LXD controller
• Inlet Connection: 1-inch female NPT
• Outlet Connection: 1-inch male NPT
• Minimum Valve Box Size: Mini rectangular (PVBMST)
• Electrical: 24 VAC Solenoid
