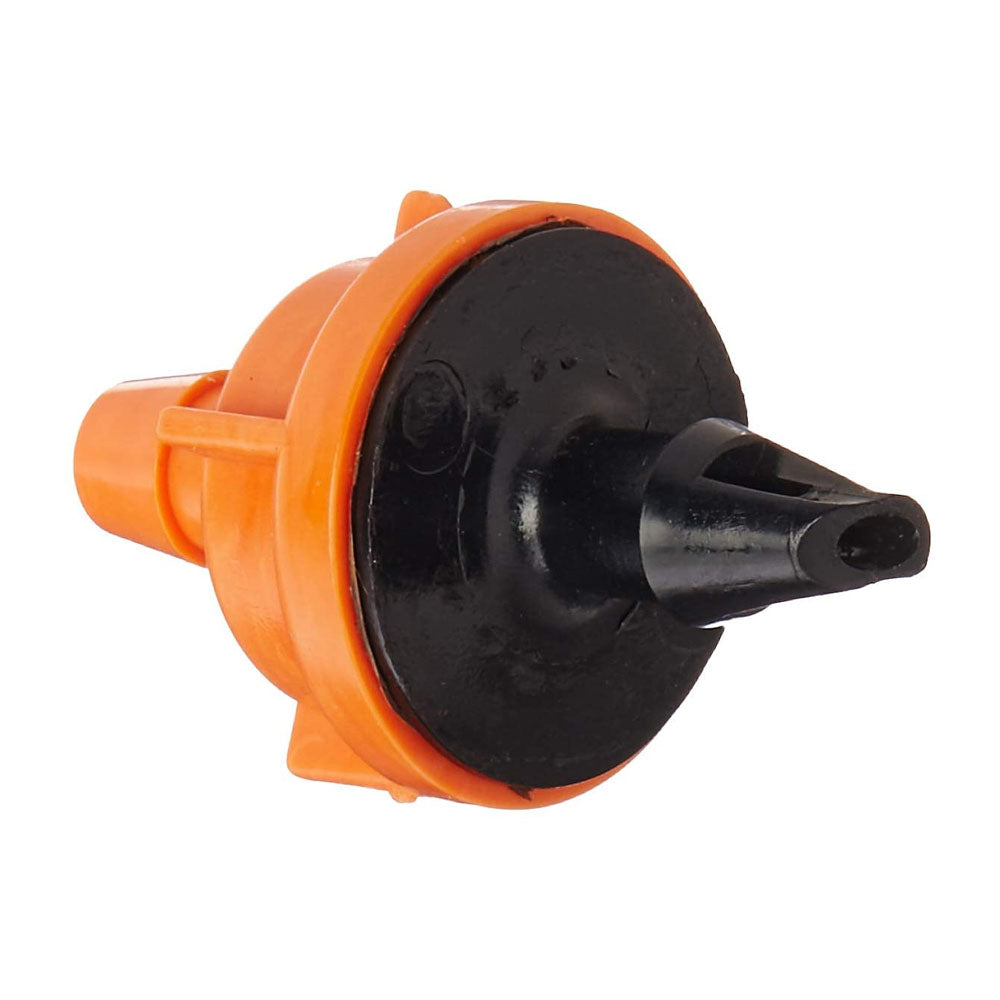

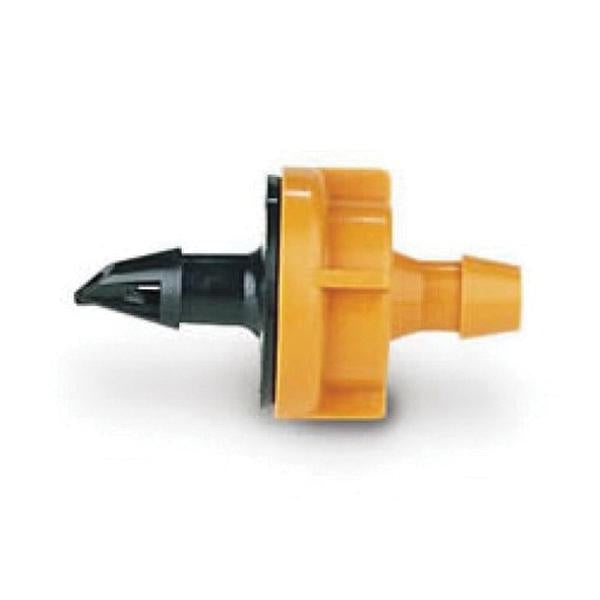

Rain Bird X71024 PC24 Pressure-Compensating Module Barb Inlet 24.0 GPH

Product Description

The RAIN BIRD X71024 PC24 Pressure-Compensating Module is a point-source medium-flow emitter designed for efficient landscape watering of larger shrubs and trees. Featuring a barb inlet, it delivers a consistent 24.0 GPH flow rate. Its pressure-compensating design ensures uniform water distribution across a wide operating pressure range of 10 to 50 psi, making it ideal for drip irrigation systems. The module incorporates self-piercing barbs for easy insertion into 1/2 inch or 3/4 inch drip tubing.

• Pressure-compensating design delivers uniform flow throughout a wide pressure range (10 to 50 psi; 0.7 to 3.5 bar)
• Self-piercing barbs for quick one-step emitter insertion into 1/2 in. or 3/4 in. drip tubing
• Robust design; durable plastic construction is UV-resistant and color-coded to identify flow rate

Product Highlights

Compact, UV-resistant emitter ensures uniform 24 GPH flow for efficient watering of shrubs and trees.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: X71024

Technical Specifications

• Model: PC24
• Emission Device Type: Single-outlet Emitter
• Inlet Type: Barb
• Flow Rate: 24 gph
• Operating Pressure Range: 10 to 50 psi (0.7 to 3.5 bar)
• Required Filtration: 100-mesh (150-micron)
