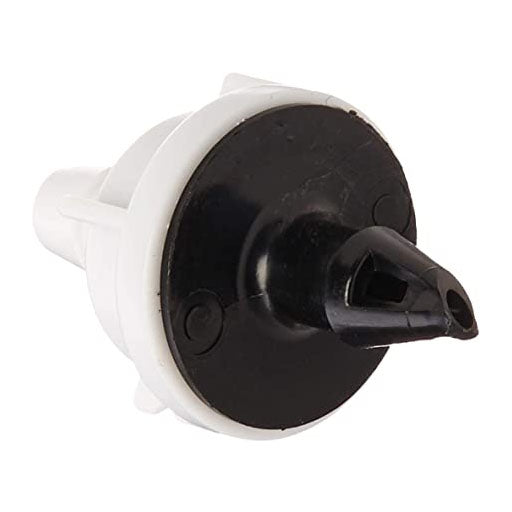

Rain Bird X71018 PC18 Pressure-Compensating Module Barb Inlet 18.0 GPH 10 Pack

Product Description

The RAIN BIRD X71018 PC18 is a pressure-compensating module designed for efficient drip irrigation systems. This single-outlet emitter provides a consistent 18 GPH flow rate, ideal for watering larger shrubs and trees. Its pressure-compensating design ensures uniform flow across a wide operating range of 10 to 50 psi, requiring 100-mesh filtration for optimal performance. The barb inlet and self-piercing barbs facilitate quick installation into drip tubing.

• Most compact and unobtrusive emitters for discreet installation
• Pressure-compensating design delivers uniform flow throughout a wide pressure range (10 to 50 psi; 0.7 to 3.5 bar)
• Self-piercing barbs for quick one-step emitter insertion into 1/2 in. or 3/4 in. drip tubing

Product Highlights

Point-source medium-flow emitters for watering larger shrubs and trees.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: X71018

Technical Specifications

• Model: PC18
• Emission Device Type: Single-outlet Emitter
• Inlet Type: Barb
• Flow Rate: 18 gph
• Operating Pressure Range: 10 to 50 psi (0.7 to 3.5 bar)
• Required Filtration: 100-mesh (150-micron)
• Brand: Rain Bird
• Department: IRRIGATION
• Number of Pieces: 1
• Manufacturer: Rainbird
• UPC: 753810002589
• MPN: X71018
• ASIN: B007UQOQXY
• Pack Quantity: 10
• Color: White
• Material Type: Plastic
• SKU: PC18
