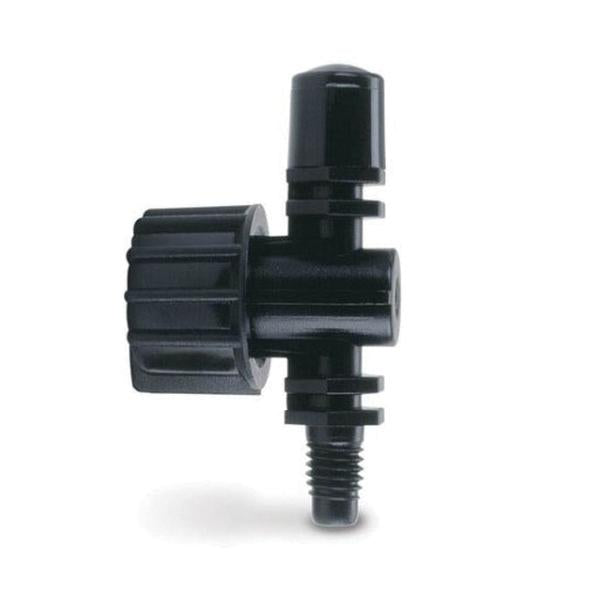

Rain Bird X66000 XS090 Xeri-Spray Quarter-Circle Spray Pattern 90 Degree

Product Description

The RAIN BIRD X66000 is a Micro-Spray from the Xeri-Spray Series, featuring a Quarter-Circle Spray Pattern. This device has a 10-32 Threaded inlet and operates within 0 to 10.6 ft, 10 to 30 psi, and 0 to 31 gph flow rate. It is designed for efficient irrigation of ground cover, mass plantings, annual flower beds, and containers, providing uniform water distribution.

• Adjust flow/radius by turning integral ball valve
• Uniform emission pattern provides excellent distribution
• 10-32 self-tapping threads fit into 1/2 in. x 10-32 adapter (10-32A); 1800 Xeri-Bubbler™ adapter (XBA-1800); and polyflex riser (PFR-12)

Product Highlights

Adjustable micro-spray with uniform quarter-circle pattern for targeted irrigation.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: X66000

Technical Specifications

• Model: XS090
• Emission Device Type: Micro-Spray
• Inlet Type: 10-32 Threaded
• Manufacturer: Rain Bird
• Brand: Rain Bird
• Part Number: 76A-XS090
• MPN: X66000
• Operating Range: 0 to 10.6 ft
• Operating Pressure: 10 to 30 psi
• Flow Rate: 0 to 31 gph
• Connection Type: 10-32 UNF Threaded
• Material: Plastic
• Color: Black
• Department: IRRIGATION
• Item Number: RAIX66000
• Sub-Category: Drip Emitters
