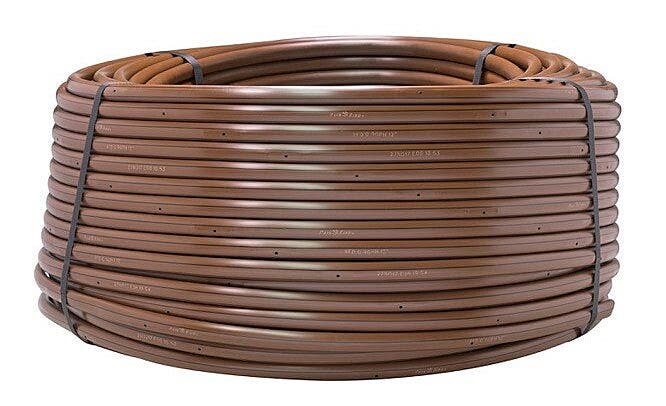

Rain Bird X47031MX XFCV 0.9GPH 12 inches spacing 250 foot coil

Product Description

The Rain Bird X47031MX XFCV Dripline is designed for on-surface irrigation, featuring a heavy-duty 3.5 psi check valve. This dripline maintains water charge, preventing puddling and ensuring uniform watering, especially in areas with elevation changes. It operates within a pressure range of 20 to 60 psi and accepts various 17 mm barbed insert fittings, making it suitable for diverse landscape applications.

• Features a 3.5 psi check valve technology that keeps the dripline charged, enhancing watering uniformity and conserving water.
• Constructed with a proprietary tubing material, making it the most flexible dripline for easy design and installation.
• Pressure-compensating emitter design ensures consistent flow over the entire lateral length for high uniformity.

Product Highlights

This XFCV Dripline offers superior watering uniformity and water conservation through its integrated check valve and flexible, pressure-compensating design, ideal for challenging landscapes.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: X47031MX

Technical Specifications

• Model: XFCV0912250
• Opening Pressure: 14.5 psi
• Operating Pressure: 20 to 60 psi (1.38 to 4.14 bar)
• Flow Rate: 0.4, 0.6 and 0.9 gph (1.6, 2.3 and 3.5 l/hr)
• Water Temperature: Up to 100°F (37.8° C)
• Ambient Temperature: Up to 125°F (51.7° C)
• Required Filtration: 120 mesh
• Outer Diameter: 0.634" (16mm)
• Inner Diameter: 0.536" (13.6mm)
• Thickness: 0.049" (1.2mm)
