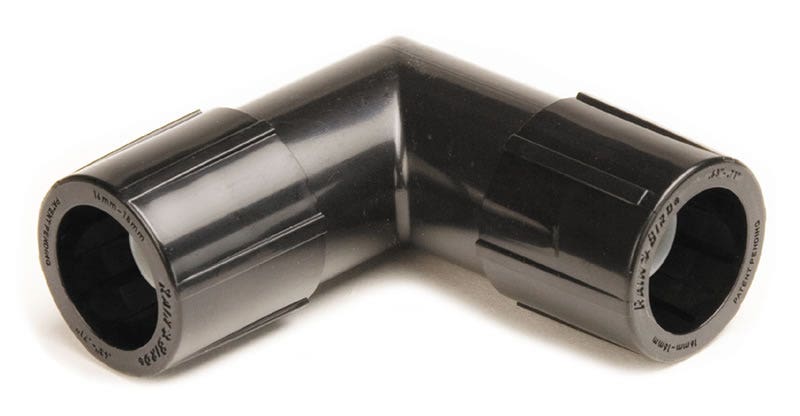

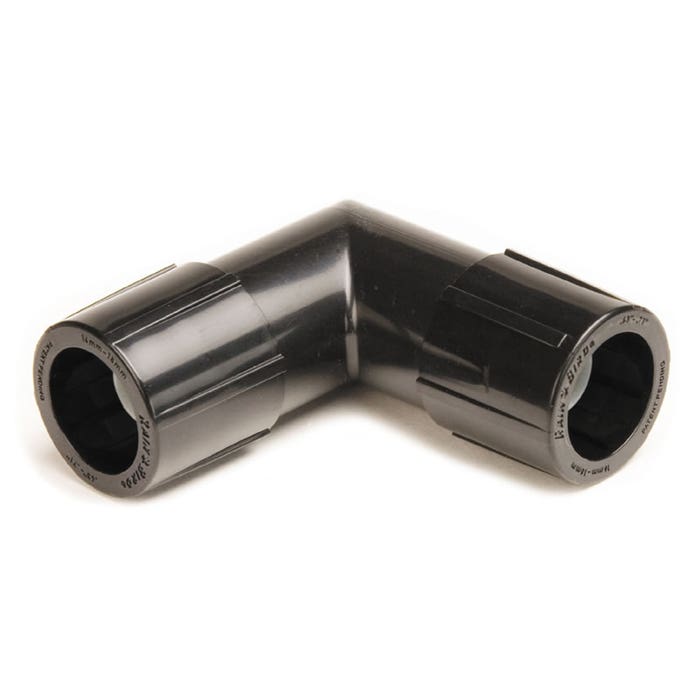

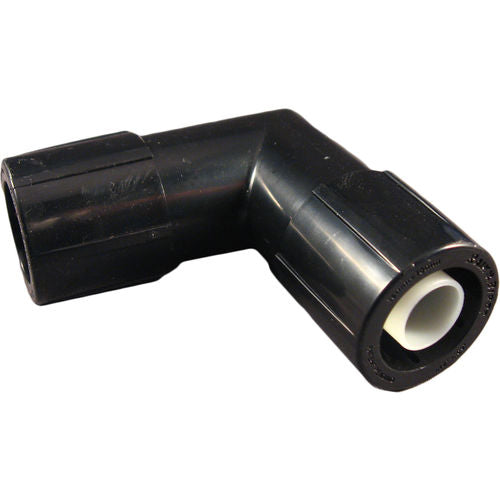

Rain Bird X43001 MDCFEL Easy Fit Compression Fitting System Elbow 1/2 inch

Product Description

The RAIN BIRD X43001 is a compression fitting system elbow designed for low-volume irrigation systems. This component facilitates tubing connections, accepting 1/2 inch tubing with an outside diameter from 0.630 to 0.669 inches (16mm to 17mm). It operates within a pressure range of 0 to 60 psi (0 to 4.1 bar) and requires up to 50% less force for installation, making it suitable for new setups, maintenance, and retrofitting existing systems.

• Requires up to 50% less force for tubing installation, simplifying setup.
• Ideal for maintenance and retrofitting existing irrigation systems.
• Compatible with 1/2 inch tubing from various manufacturers, O.D. 0.630" to 0.669" (16mm to 17mm).

Product Highlights

This Easy Fit Compression Fitting System Elbow offers versatile tubing connections for low-volume irrigation, supporting 1/2 inch tubing with reduced installation effort and broad compatibility.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: X43001

Technical Specifications

• Model: MDCFEL
• Operating Pressure Range: 0 to 60 psi (0 to 4.1 bar)
• Tubing Outer Diameter: 0.630" to 0.669" (16 -17mm)
