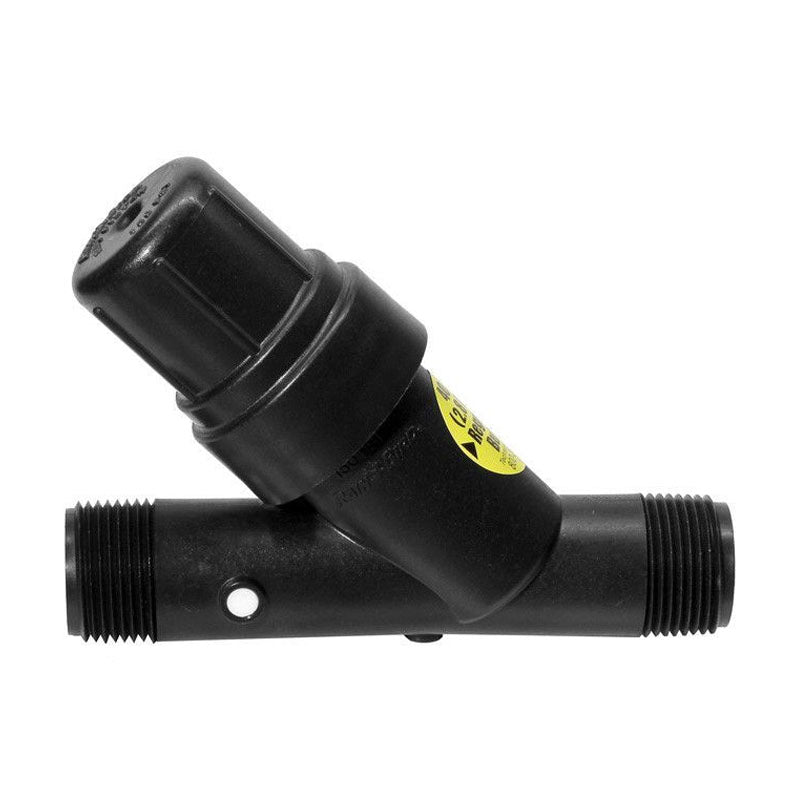

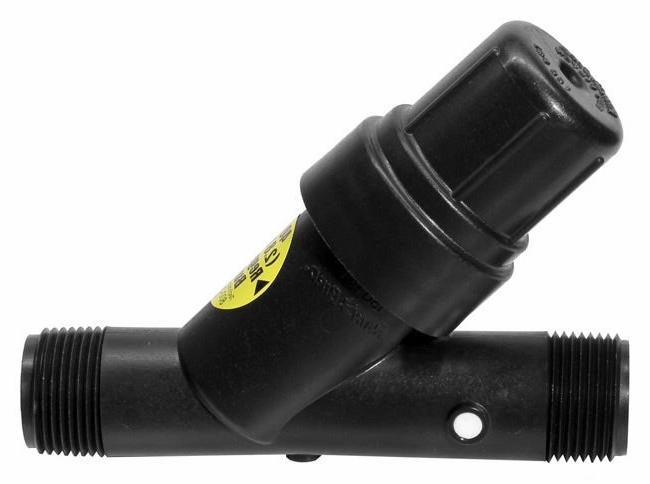

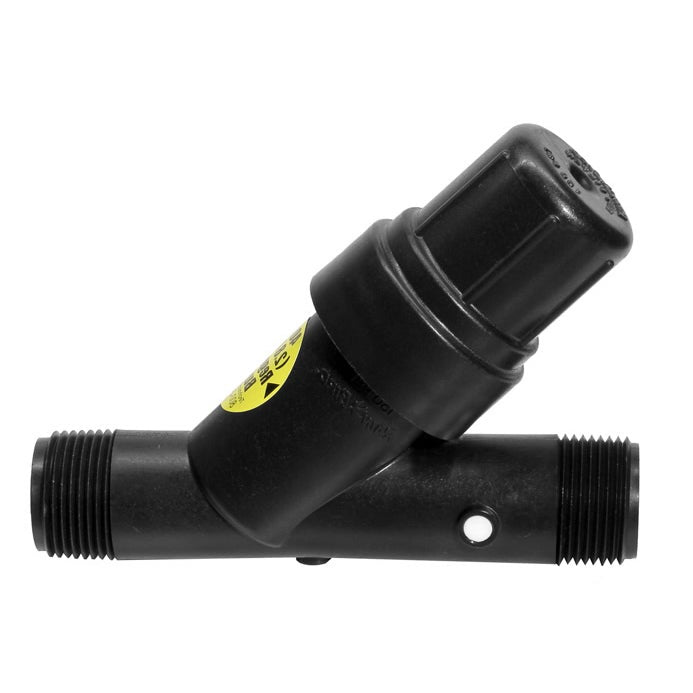

Rain Bird X13001 Pressure Regulating 1 inches Filter

Product Description

The RAIN BIRD X13001 is a unique, compact unit that combines filtration and pressure regulation in one piece, protecting downstream components in low-volume irrigation systems. It reduces the number of connections, making installation easier and faster. Fewer parts and threaded connections mean less chance of leaks.

• 1 in. static RBY filter regulates pressure to a nominal 40 psi (2.8 bar)
• PF RBY Filter Cap has sealing O-ring and unthreads to provide access to the filter element for easy cleaning
• 40 psi pressure regulator is integrated into the filter body

Product Highlights

This combination unit simplifies control zones, reduces installation time, and enhances system reliability.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: X13001

Technical Specifications

• Model: PRF100RBY
• Flow Range: Medium Flow: 3 to 15 gpm
• Pressure Regulation: 40 psi
• Filter Type: Screen Filter
• Filtration: 200 mesh (75 micron)
• Operating Range: Inlet pressure: 20 to 150 psi (1.4 to 10.3 bar)
• Connection Size: 1" x 1"
• Brand: Rain Bird
• Department: IRRIGATION
• Item model number: X13001
