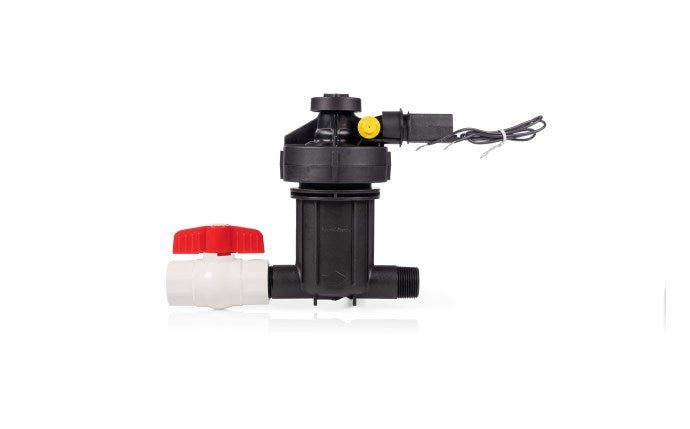

Rain Bird x10400 Drip Zone Control Valve 1 Inch 40 Psi

Product Description

The RAIN BIRD x10400 is an all-in-one drip zone control valve designed for residential irrigation systems. This 1-inch valve integrates pressure regulation at 40 psi directly into the valve body, eliminating the need for a separate pressure regulator downstream. It controls flow to drip and micro-irrigation zones while maintaining consistent operating pressure. Licensed irrigators and landscape contractors install this valve at the zone inlet, typically after the backflow preventer and mainline shutoff. The compact, integrated design simplifies zone assemblies and reduces the number of components required at each drip zone.

This valve is suited for residential drip irrigation applications including garden beds, planting areas, and low-flow landscape zones. The all-in-one construction combines a solenoid control valve and pressure regulator in a single unit, making it a practical choice for new installations and retrofits where space at the valve box is limited. It is used in both inline and below-grade valve manifold configurations common to residential irrigation systems.

Key Features

• Integrated 40 psi pressure regulation eliminates a separate regulator at each drip zone
• 1-inch valve size suits standard residential zone piping
• All-in-one design reduces component count and simplifies valve box layout
• Rated for residential irrigation use
• Compact footprint at approximately 9.5 x 4.25 x 5.3 inches shipping dimensions

Compatibility

Designed as an OEM-style replacement or new-installation valve for residential drip and micro-irrigation zone control applications using 1-inch connections.

Installation Notes

Installation should be performed by a licensed irrigator or qualified landscape contractor in accordance with local plumbing and irrigation codes. Shut off the mainline water supply and depressurize the system before disassembly or installation. Use thread sealant tape on all threaded connections and avoid over-tightening fittings to prevent body cracking. Verify system operating pressure at the inlet does not exceed the valve rated working pressure before returning the zone to service.

Technical Specifications

• Valve Size: 1 inch
• Regulated Pressure: 40 psi
• Application: Irrigation
• Use Type: Residential
• Shipping Dimensions: 9.5 x 4.25 x 5.3 inches
• Product Weight: 1.7 pounds
• UPC: 077985095468

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: x10400
