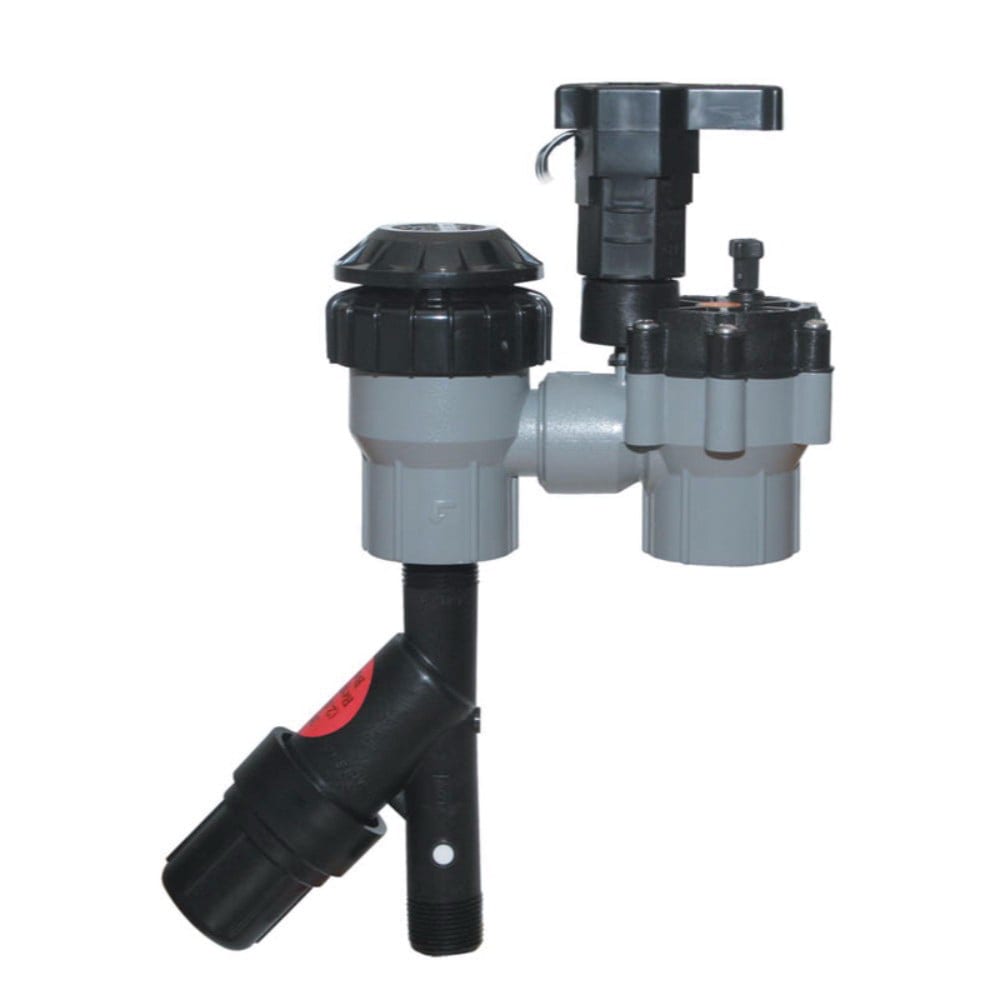

Rain Bird X10323 3/4 inches 0.2 to 5 gpm Low Flow Control Zone Kit

Product Description

The Rain Bird X10323 control zone kits provide all components necessary for ON/OFF control, filtration, and pressure regulation in a single package, simplifying ordering and installation. These reliable kits include a low flow valve capable of handling flows below 3 gpm without weeping. Complete with a field-proven low flow anti-siphon valve featuring an atmospheric vacuum breaker for backflow prevention and an IAPMO rating.

• Provides all components necessary for ON/OFF control, filtration, and pressure regulation.
• Includes the low flow valve, the only valve on the market that can handle low flows (below 3 gpm) without weeping.
• Features a field-proven low flow anti-siphon valve with an atmospheric vacuum breaker for backflow prevention and an IAPMO rating.

Product Highlights

Provides on/off control, filtration, and pressure regulation. Features a 200 Mesh stainless steel screen (75 micron).

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: X10323

Technical Specifications

• Brand: Rain Bird
• MFG Number: X10323
• UPC: 753810020613
• Tubing Compatibility: 3/4 in.
• Flow Range: 0.2 to 5 gpm
• Pressure Rating: 30 psi
• Filter Type: Screen Filter
• Mesh Rating: 200 Mesh
• Pressure Regulation: Yes
• Valve Type: Anti-Siphon Valve
• End Connection 1: Male Threaded
• End Connection 2: Male Threaded
• End Connections: Male Threaded x Male Threaded
• Valve Size: 3/4 in
• Pressure - Maximum: 150 psi
• Material: Plastic
• Height: 4-1/2
• Length: 4-3/8
