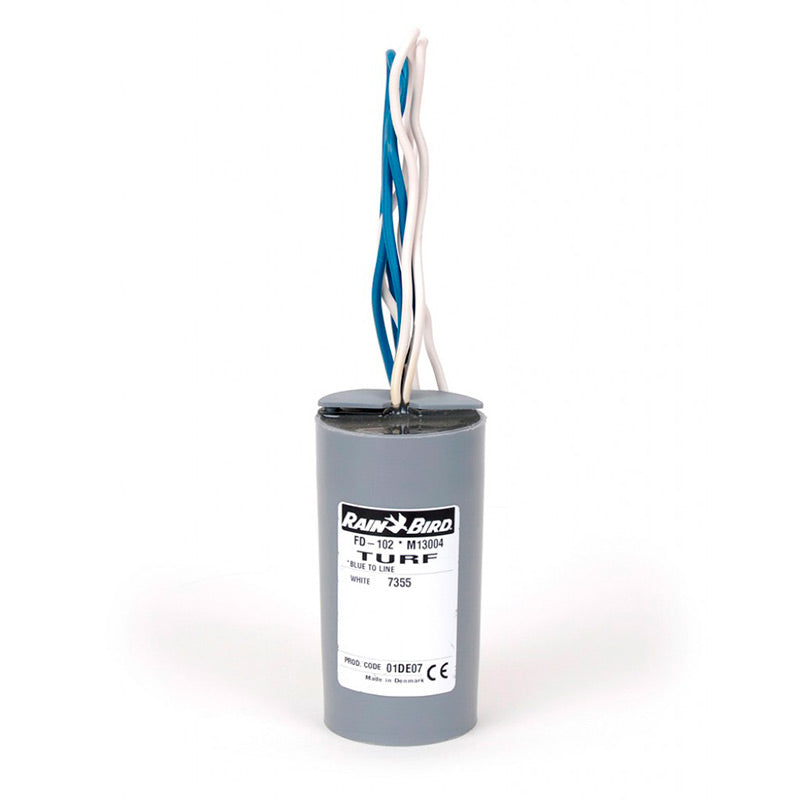

Rain Bird M13005 fd202turf fd series 2-wire decoder 2 valves or 2 pairs of valves

Product Description

The Rain Bird M13005 Field Decoders provide easy, cost-effective installation and expansion for SiteControl Decoder or ESP-LXD Decoder Central Control Systems. These decoders are installed out of sight to help protect them from the elements and vandalism. They operate 2 individual valves or 2 pairs of automatic irrigation valves.

• Operates 2 individual valves or 2 pairs of automatic irrigation valves
• Fully waterproof; mount inside a valve box or direct burial
• Address pre-coded from the factory (no switches)

Product Highlights

Rain Bird decoders offer simple wiring, are fully sealed within a water-tight enclosure, and are suitable for flood plains.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: M13005

Technical Specifications

• Model: FD202TURF
• Operates: 2 individual valves or 2 pairs of automatic irrigation valves
• Address: pre-coded from the factory (no switches)
• Protection: Installed out of sight and protected from the elements and vandalism
• Enables: advanced diagnostics and sensor features
• Standby current: 0.5 mA
• Surge protection: 40 V, 1.5 KW transit surge protection
• AMP Rating: 0.5 mA Idle, 18 mA Per Active Solenoid
• Material: Plastic
• Type: Decoder
• MFG Number: M13005
• UPC: 751850057613
• Series/Model: FD
• Manufacturer Part Number: M13005
• Manufacturer: Rain Bird
