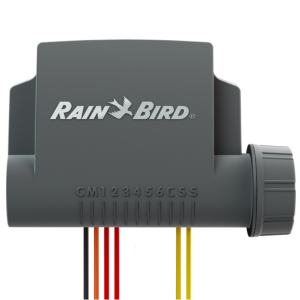

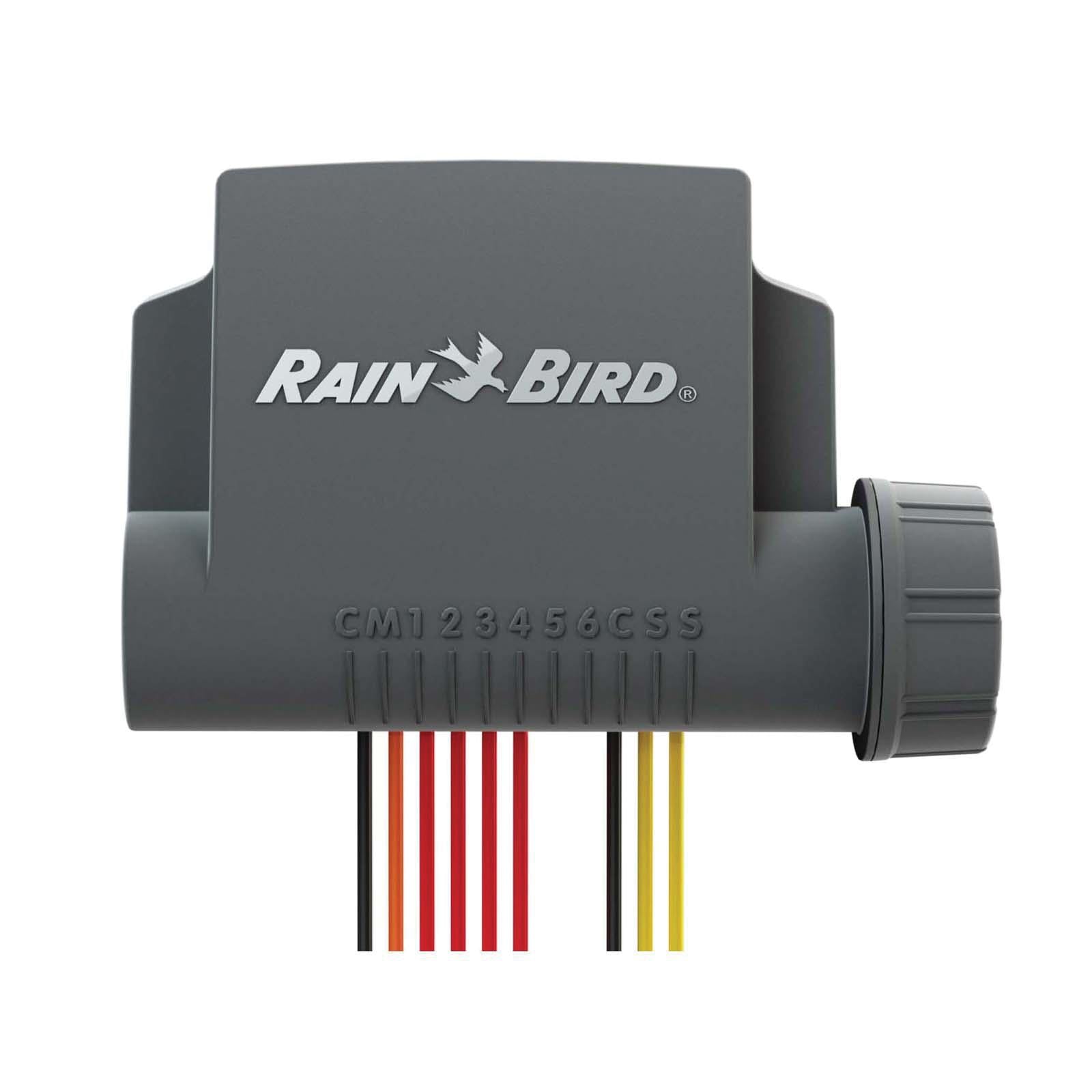

Rain Bird F58572 ESPBAT-BT2 Bluetooth battery operated 2-station controller

Product Description

The Rain Bird F58572 is a Bluetooth-enabled, battery-operated irrigation controller that provides two-station valve control and app-based programming. It supports four independent programs (A–D) with up to 8 start times per program and per-station run times from 7 seconds to 9 hours (extendable to 18 hours with 200% seasonal adjust). The unit features IP68 waterproof construction, up to five years of battery life using four AA batteries, and integration with the Rain Bird 2.0 app for mapping and offline control.

• Bluetooth control via Rain Bird 2.0 app; built-in 2402–2480 MHz radio with PCB antenna
• Four independent programs with up to 8 start times; run times 7 seconds to 9 hours (up to 18 hours with 200% seasonal adjust)
• Battery operation using four AA cells (up to 5 years), IP68 waterproof enclosure, PIN protection, rain sensor input, and short/open circuit detection

Product Highlights

2-station Bluetooth battery controller with Rain Bird 2.0 app, IP68 waterproof case, up to 5 years battery life, four programs, 7s–9h runtimes, 0%–200% seasonal adjust

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: F58572

Technical Specifications

• Brand: Rain Bird
• MPN: F58572
• Model: ESPBAT-BT2
• Part Number: ESPBAT-BT2
• Stations: 2
• Battery Type: Four AA (AA, LR6, LR06) — batteries not included
• Battery Life: Up to 5 years (with four high-quality AA batteries)
• Bluetooth Frequency: 2402 to 2480 MHz
• Maximum RF Power: 9.66 dBm (USA/Canada); 9.95 dBm (EU/UK)
• Antenna Type: PCB antenna
• Antenna Gain: 2.35 dBi (USA/Canada); 2.41 dBi (EU/UK)
• Ingress Protection: IP68 waterproof
• App: Rain Bird 2.0 App (Android and iOS)
• Programs: Four independent programs (A, B, C, D) with up to 8 start times per program
• Run Time Range: 7 seconds to 9 hours (max 18 hours with 200% seasonal adjust) in 1-second increments
• Seasonal Adjust: Global monthly 0% to 200% (1% increments)
• Watering Day Modes: Custom, even, odd, cyclical; permanent days off; selectable by program
• Rain Delay: 1 to 14 days
• Rain Sensor Compatibility: Direct rain sensor connection; sensor shutoff globally or by station (compatible with Rain Bird RSD-BEx)
• Master Valve/Pump Output: Yes
• Diagnostics: Short and open circuit detection; no loss of program after battery replacement; backup program save/restore
• Security: PIN code protection
• Dimensions: 5.6 in x 2.5 in x 4 in
• Weight: 1.70 lbs
• UPC: 077985088207
• Display Type: Digital
• Maximum Wire Run: 12 AWG: 1250 ft (381 m); 14 AWG: 750 ft (229 m); 18 AWG: 300 ft (91 m)
• Certifications: CE, UKCA, ACMA-RCM, UL-US, FCC Part 15b & 15c, Bluetooth SIG Qualification, C-UL, ICES-003, ISED RSS-247, NOM, IFETEL, ANATEL, MIC, CST, ICASA, TDRA, ECAS-ROHS, NTRA
