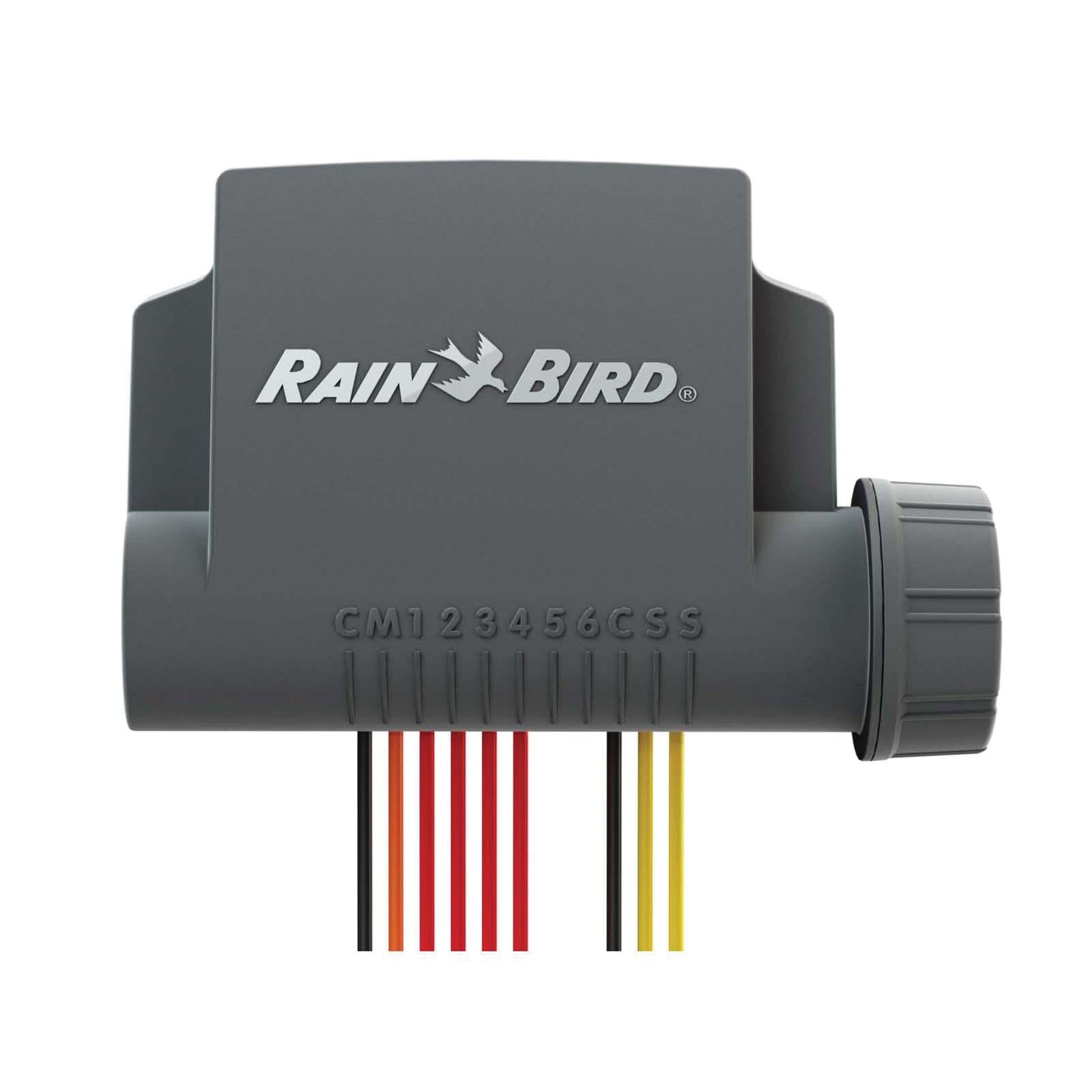

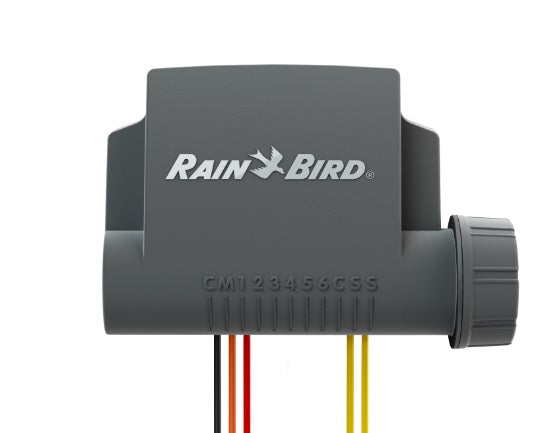

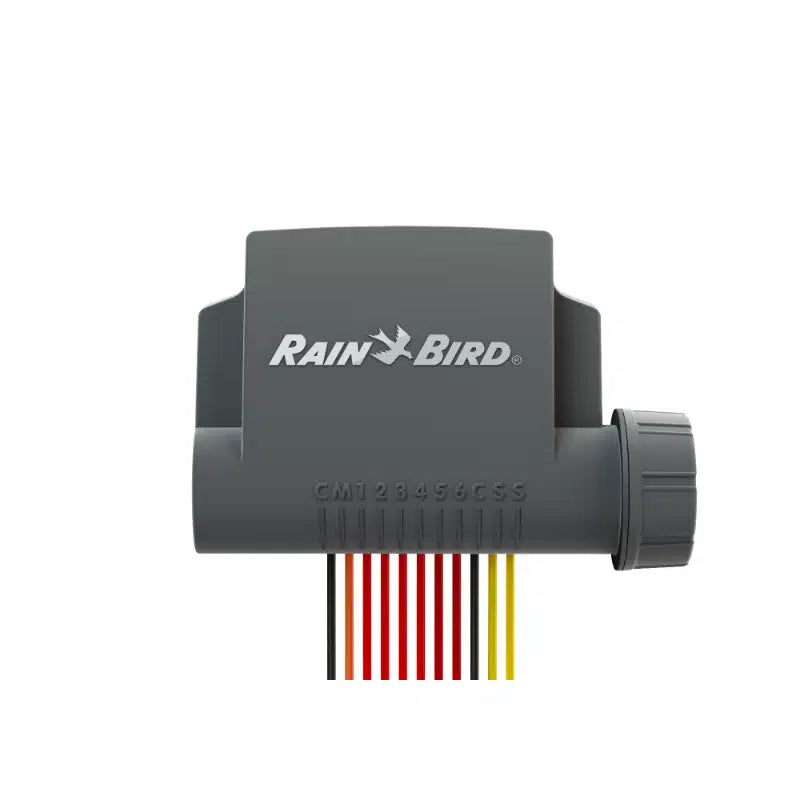

Rain Bird F58571 ESPBAT-BT Bluetooth Battery-Operated Controller 1 Station ESPBAT-BT1

Product Description

Rain Bird F58571 (ESPBAT-BT1) is a single-station Bluetooth, battery-operated irrigation controller that runs on four AA batteries and supports up to five years of battery life. It features Bluetooth control via the Rain Bird 2.0 app, IP68 waterproof enclosure, four independent programs with up to eight start times per program, run times from 7 seconds to 9 hours (up to 18 hours with 200% seasonal adjust), and cycle-and-soak capability for runoff management.

• Battery operation: four AA batteries, removable wireless battery pack, up to 5 years battery life
• Programming: 4 independent programs (A-D), up to 8 start times per program, 7 sec to 9 hr run times (1 sec increments), 0%–200% seasonal adjust
• Durability and connectivity: IP68 waterproof enclosure, Bluetooth 2402–2480 MHz with Rain Bird 2.0 app, direct rain sensor input and master valve/pump output

Product Highlights

1-station Bluetooth battery irrigation controller; IP68; up to 5 years battery life

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: F58571

Technical Specifications

• Brand: Rain Bird
• MPN: F58571
• Model: ESPBAT-BT1
• Stations: 1
• Power: Battery operated (4 x AA)
• Battery Type: Four AA alkaline (batteries not included)
• Battery Life: Up to 5 years (with four AA batteries)
• Battery Pack: Removable wireless battery pack
• Enclosure Rating: IP68
• Wireless Protocol: Bluetooth 2402-2480 MHz
• Maximum Radio Power: 9.66 dBm (USA & Canada); 9.95 dBm (EU & UK)
• Antenna Type: PCB antenna
• Antenna Gain: 2.35 dBi (USA/Canada); 2.41 dBi (EU/UK)
• App Compatibility: Rain Bird 2.0 app (Android and iOS)
• Programs: 4 independent programs (A, B, C, D)
• Start Times Per Program: Up to 8 start times per program
• Run Time Range: 7 seconds to 9 hours (up to 18 hours with 200% seasonal adjust) in 1 second increments
• Seasonal Adjust: Global monthly 0% to 200% in 1% increments
• Watering Modes: Custom, even, odd, cyclical; permanent days off
• Cycle and Soak: Supported (run-off management down to 7-second cycles)
• Rain Delay: 1 to 14 days
• Rain Sensor: Direct rain sensor connection; shutoff globally or by station
• Master Valve/Pump Output: Yes
• Program Backup: Backup program save and restore; no loss of program after battery replacement
• Diagnostics: Short and open circuit detection
• Security: PIN code protection
• Dimensions: 5.6 in x 5.6 in x 4 in (L x W x H)
• Weight (manufacturer stated): 24 ounces (680 g) including batteries
• Maximum Wire Run (12 AWG): 1250 ft (381 m)
• Maximum Wire Run (14 AWG): 750 ft (229 m)
• Maximum Wire Run (18 AWG): 300 ft (91 m)
• Compatible Valves: Compatible with DC latching solenoids; supports Rain Bird DC DVF valves
• Certifications: CE, UKCA, ACMA-RCM, UL-US, FCC Part 15b & 15c, Bluetooth SIG, C-UL, ICES-003, ISED RSS-247, NOM, IFETEL, ANATEL, MIC, CST, ICASA, TDRA, ECAS-ROHS, NTRA
• UPC: 077985088191
• GTIN: 10077985088191
• ASIN: B0DRPPV5MZ
