Product Description
The Rain Bird F55410 Model ESP4ME3 is a reliable irrigation controller designed for both indoor and outdoor use. This 120V model supports WiFi connectivity with the Rain Bird LNK WiFi module (not included) for remote operation. It has a base capacity of four stations, expandable to twenty-two stations using optional modules.
- Expandable up to 22 stations with hot-swappable modules
- Includes an outdoor cabinet and power plug for easy setup

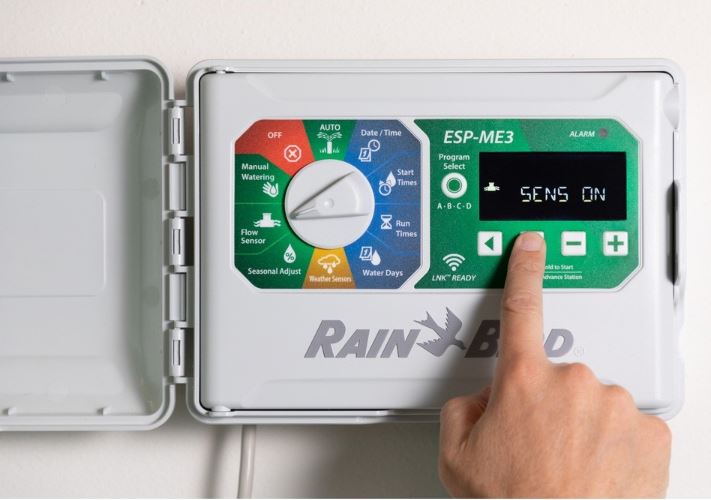

- Features a large backlit screen for easy readability
Product Highlights
This controller offers flow monitoring with a wired flow sensor for alerts about potential water waste. It also features one-touch manual watering and allows for a 14-day watering delay.
Product Information
Standard Information
-
Brand: Rain Bird
-
MPN: F55410
Technical Specifications
-
Controller Type: Modular, Expandable
-
Input Voltage: 120 VAC
-
Output Voltage: 25.5 VAC
-
Amperage: 1 A
-
Dimensions: 10.7 inches W x 7.7 inches H x 4.4 inches D
-
Number of Programs: 4
-
Number of Zones: 4 to 22
-
Start Times per Zone: 6
-
Frequency: 60 Hz
-
Mfg Standards/Approvals: cULus, FCC Part 15b
-
Program Day Cycles: Custom, Odd/Even, Cyclical
