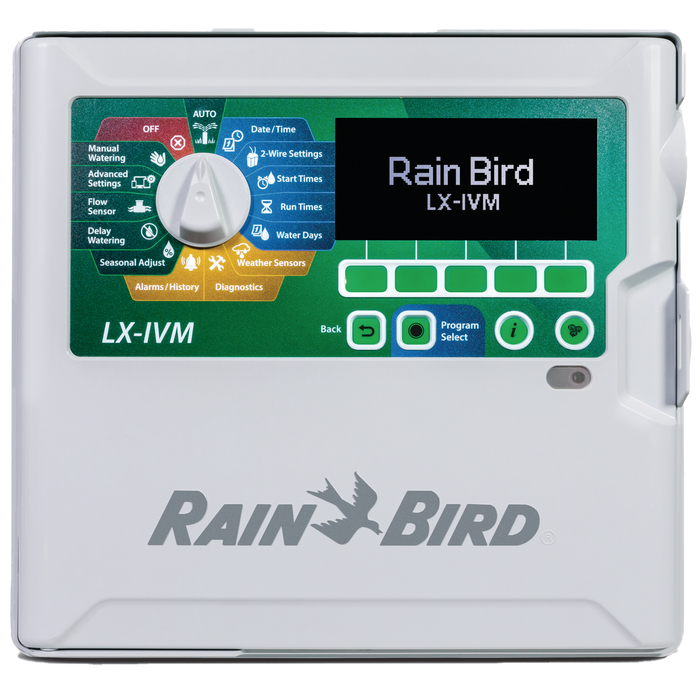

Rain Bird F46100 ESP-LXIVM 2-Wire controller 60 station capacity

Product Description

The Rain Bird F46100 ESP-LXIVM 2-Wire Controller is a sophisticated irrigation management system designed for efficient water usage. This indoor/outdoor controller supports up to 60 stations standard, expandable to 240 with an LX-IVM Pro panel, and features 10 independent programs. It includes advanced diagnostics and two-way communication with Intelligent Valve Modules for precise control and error-free operation, making it suitable for commercial irrigation applications.

• Supports up to 60 stations standard, expandable to 240 stations with LXIVM Pro Panel.
• Features 10 independent programs with 8 start times per program for flexible scheduling.
• Includes 2-Wire Mapping and Self-Healing capabilities for quick issue resolution and continuous irrigation.

Product Highlights

Advanced 2-Wire irrigation controller with integrated valve module for efficient water management and diagnostics.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: F46100

Technical Specifications

• Model: ESPLXIVM
• Zones/Stations: 60
• Installation Environment: Indoor/Outdoor
• Controller Type: Decoder-based
• Programs: 10
• Program Day Cycles: Custom days of the Week, Odd days, Even days, Cyclical (water every x days), Calendar day off, Event days off
• Start Times per Zone/Program: 8
• Input Voltage: 120 VAC +/- 10%, 60Hz (International models: 230 VAC +/- 10%, 50Hz or 60Hz)
• Power Backup: Lithium coin-cell battery maintains time and date for 10 years; nonvolatile memory maintains programs
• Compatibility: Rain Bird commercial valves (PGA, PEB, GB, EFB-CP and BPE series)
