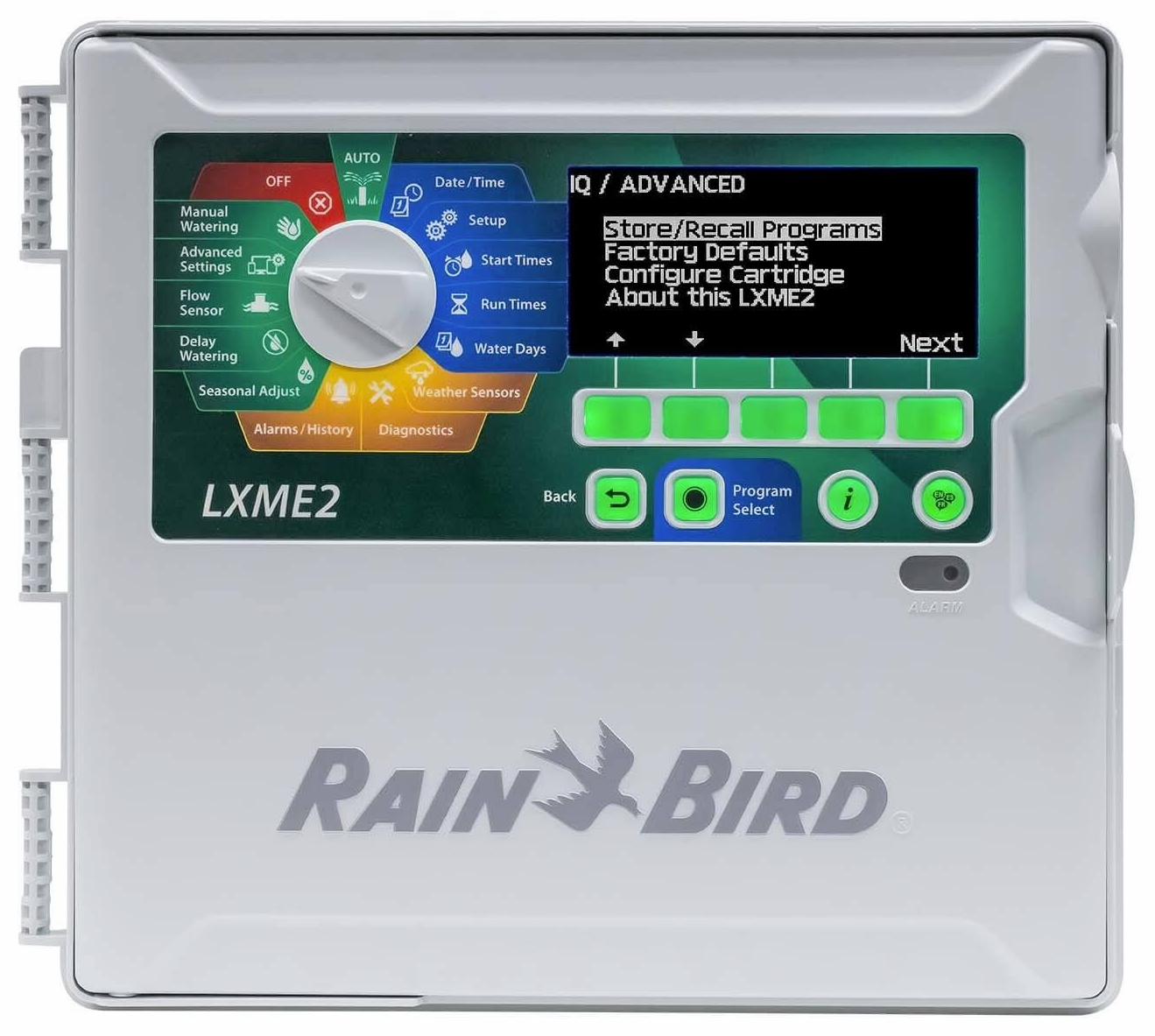

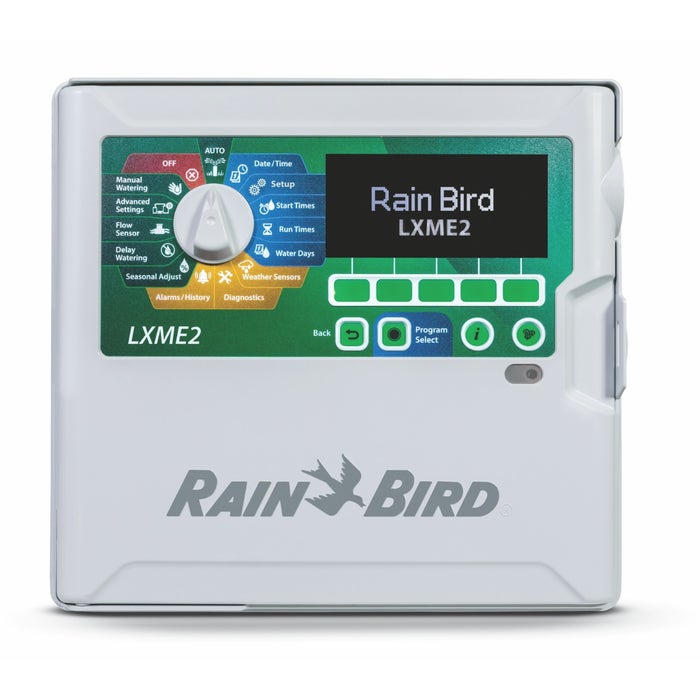

Rain Bird F22105 lxme2 Pro 12-Station Modular Controller 120V ESPLXME2P

Product Description

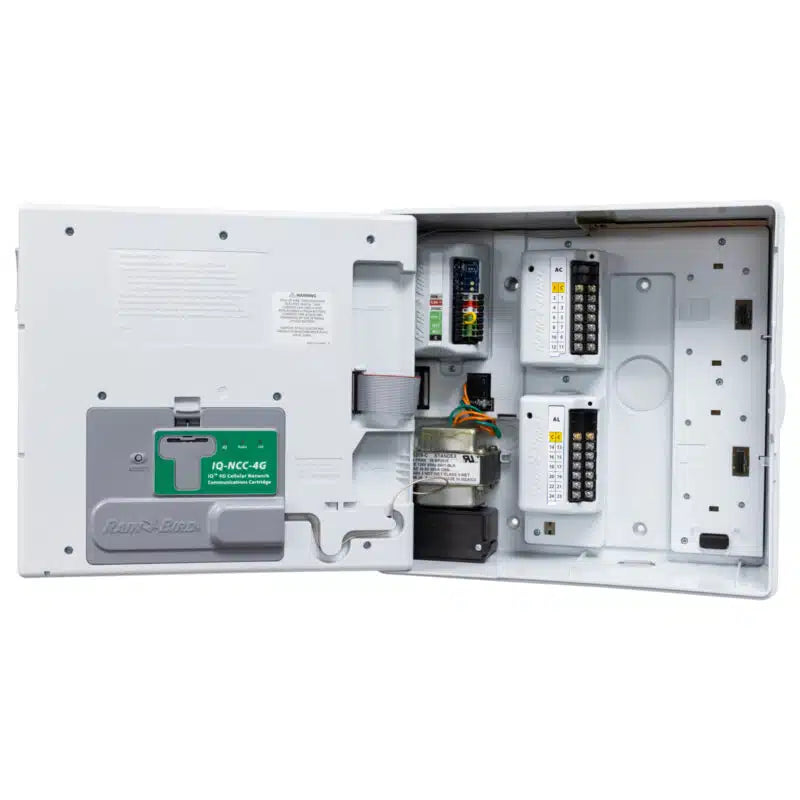

The Rain Bird F22105 LXME2 Pro series commercial controllers have been upgraded, now offering 40 programs, a large backlit LCD screen, and simplified programming. The LXME2 is a modular controller allowing customization of station capacity from 12 to 48 stations. The LXME2 PRO provides access to one flow sensor input, advanced flow management capabilities, and a second MV2/P pump start output.

• Easy upgrade from LXME to LXME2 by swapping the front panel
• 12-stations base unit expandable to 48-stations with (4) 12-stations modules
• Access a flow sensor and a second MV2/P booster pump start circuit or normally closed master valve by upgrading to the LXME2 pro

Product Highlights

Modular design with an easy-to-navigate LCD display. Features FloManager for hydraulic demand management and SimulStations for simultaneous operation of up to 5 stations.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: F22105

Technical Specifications

• Brand Name: Rain Bird
• MPN: F22105
• Voltage: 120 V
• Amperage: 1.9 A
• Number of Stations: 12
• Display: LCD Display
• Mounting: Wall Mounting
• Material: Plastic
• Zones: 12
• Zones/Stations: 12-48 expandable
• Indoor/Outdoor: Indoor/Outdoor
• Controller Type: Modular/Expandable
• Features: Flow Sensing
