Rain Bird F22100 ESPLXME2 Controller 12-station base unit expandable to 48 stations

Product Description

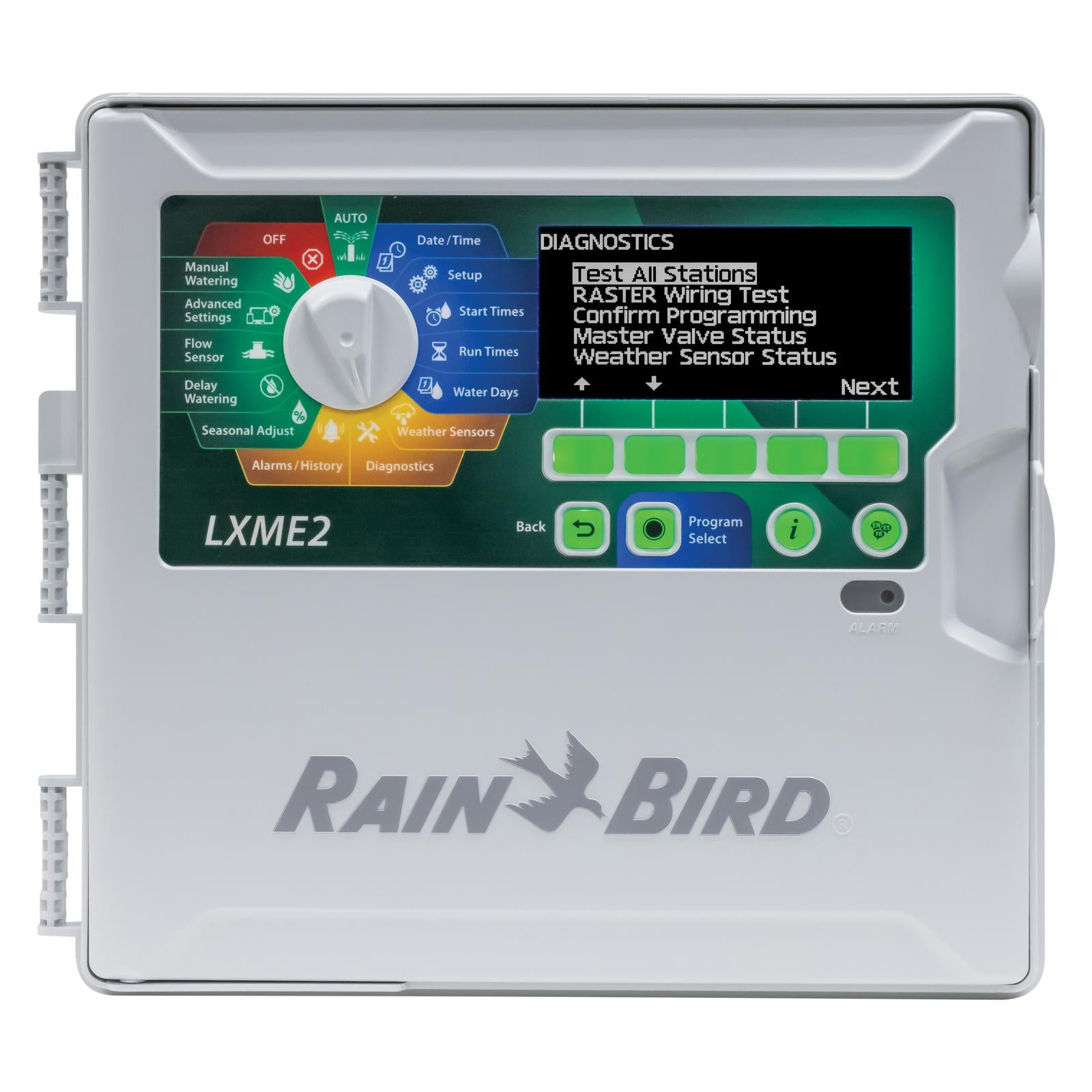

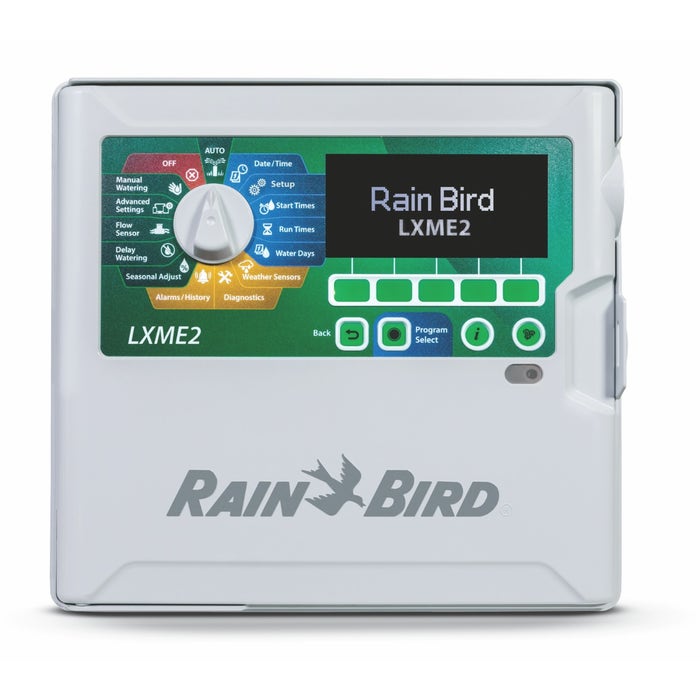

The RAIN BIRD F22100 ESPLXME2 controller is a modular unit expandable from 12 to 48 stations. Upgraded from the LXME series, it features 40 programs, a backlit LCD screen, and simplified programming. It allows customization of station capacity and can be upgraded to the LXME2 pro with additional modules.

• Expandable from 12 to 48 stations with modular design.
• Features a large backlit LCD display with user-friendly interface.
• Offers 40 programs for flexible irrigation scheduling.

Product Highlights

Modular, expandable controller with user-friendly interface and advanced programming capabilities for efficient irrigation management.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: F22100

Technical Specifications

• Model: ESPLXME2
• Zones/Stations: 12-48 expandable
• Indoor/Outdoor: Indoor/Outdoor
• Controller Type: Modular/Expandable
• Features: Battery Backup, Battery-programmable, Cycle+Soak, Delay Between Stations
• Electrical Specifications: Input required: 120 VAC 10%, 60Hz; 230 VAC +10% -6%, 50 Hz. Output: 26.5 VAC 1.9A Power back-up: Lithium coin-cell battery maintains time and date while nonvolatile memory maintains the schedule Multi-valve capacity: Maximum five 24 VAC, 7 VA solenoid valves simultaneous operation including the master valve, maximum two solenoid valves per station module
• Programs: 40
• Start Times: 10 Per Program
• SimulStations: Programmable to allow up to 5 stations to operate at the same time
• Water Windows: By program plus Manual MV Water Window
• Cycle+Soak: By station
• Rain Delay: None
• 365-Day Calendar Day Off: None
• Programmable Station Delay: By program
• Weather Sensor programmable: By station to prevent or pause watering
• Program or Global Monthly Seasonal Adjust: None
