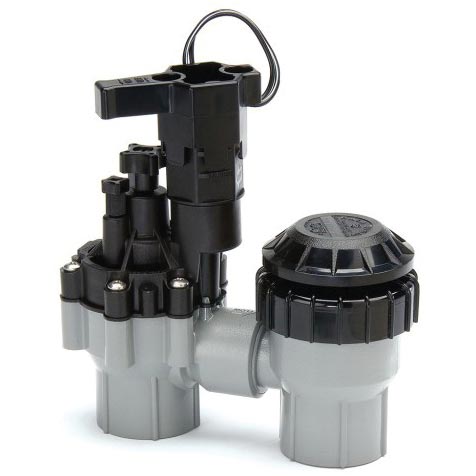

Rain Bird B73100 ASVF Anti-Siphon Irrigation Valve With Flow Control, 1 in FNPT Connection, 15 to 150 psi Pressure

Product Description

The Rain Bird B73100 is an ASVF anti-siphon irrigation valve designed with a flow control feature. This valve has a one inch FNPT connection and operates within a pressure range of fifteen to one hundred fifty psi. It is suitable for residential irrigation systems.

• Combination DVF valve and atmospheric backflow preventer in one unit
• Approved for use in the City of Los Angeles
• Compatible with any standard sprinkler timer

Product Highlights

This anti-siphon valve helps prevent backflow in irrigation systems. It is installed above ground, ensuring compliance with local codes for backflow prevention. It features an energy-efficient solenoid and a patented vacuum breaker.

Product Information

Standard Information

• Brand: Rain Bird
• MPN: B73100

Technical Specifications

• Application: Residential
• Connection Type: 1 in FNPT
• Depth: 3.2 inches
• Flow Rate: 0.2 to 40 gpm
• Height: 6.25 inches
• Material: Plastic
• Manufacturing Standards: ASSE Listed, Canadian Standards Association Approved, IAPMO Listed
• Pressure Rating: 15 to 150 psi
• Series: ASVF
• Type: Anti-Siphon
• Voltage Rating: 24 VAC
• Width: 6.1 inches
