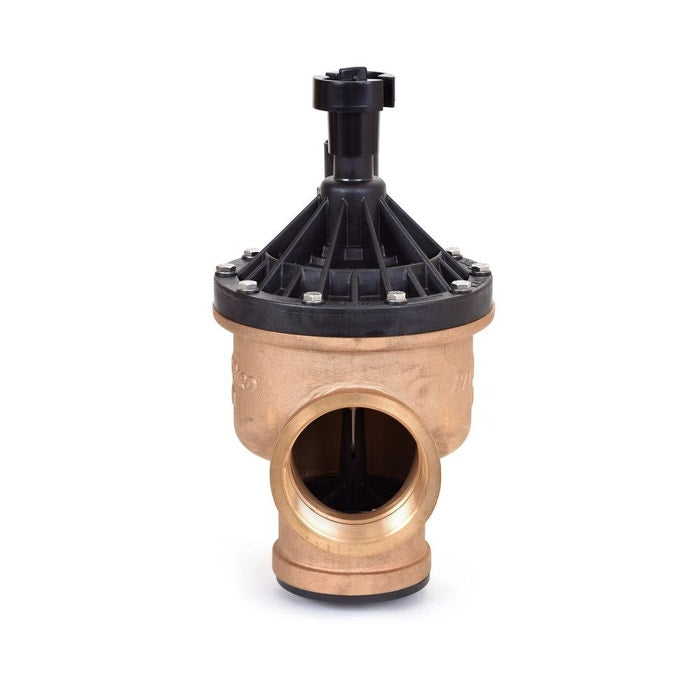

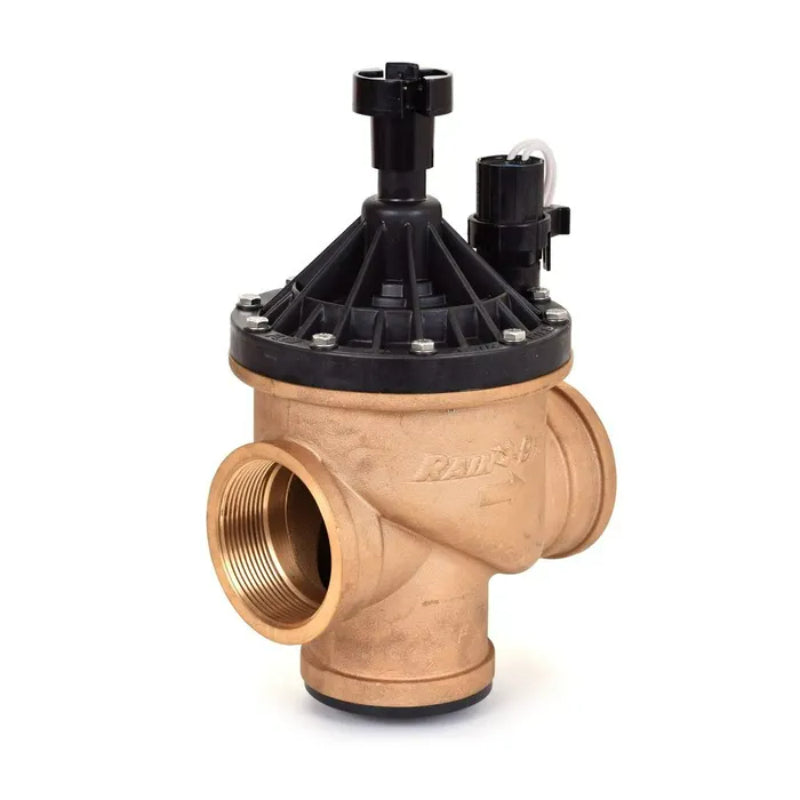

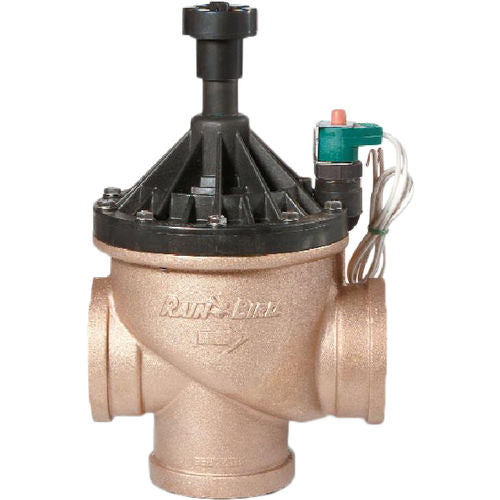

Rain Bird b38013 3 in. brass irrigation valve 24 vac globe and angle

Product Description

Rain Bird B38013 is a 3 inch brass irrigation valve designed for efficient, trouble-free performance in harsh conditions. It features a unique brass body and glass-filled nylon bonnet construction, capable of withstanding extreme pressure surges up to 200 psi and handling flow rates from 60 to 300 gpm. The valve operates on 24 VAC power and includes a patented scrubber mechanism to actively fight dirt and particles, preventing clogging.

• Patented nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material, preventing debris build-up and clogging.
• Unique hybrid construction featuring durable red brass body and glass-filled nylon bonnet for long life.
• Globe and angle configuration for flexibility in design and installation.

Product Highlights

Durable 3-inch brass irrigation valve with patented scrubber, 24 VAC solenoid, and flow control for reliable performance in demanding environments.

Product Information

Standard Information

• Brand: RAIN BIRD
• Manufacturer Part Number: B38013

Technical Specifications

• Model: 300BPES
• Size: 3 in
• Type: Inline
• Material: Brass, Glass-Filled Nylon, Thermoplastic, Stainless Steel
• Inlet/Outlet Configuration: NPT Female x NPT Female Threaded
• Options: Dirty Water
• Series: BPE/BPES
• Operating Temperature: Up to 140° F (60° C)
• Input Voltage: 24 VAC
• Frequency: 50/60 Hz
• Inrush Current: 0.41 A (9.8 VA) at 60Hz
• Holding Current: 0.28 A (6.7 VA) at 60Hz
• Coil Resistance: 28 Ohms, nominal
• Flow Rate: 60 to 300 gpm (13,6 to 68,1 m3/h; 3,78 to 18,90 l/s)
• Operating Pressure: 20 to 200 psi (1,4 to 13,8 bar)
